Small Bottle Linear Type Beverage Filling Machine Production Line Small Bottle Linear Type Beverage Filling Machine Production Line

Capacity : 8000~12000 Bottle Per Hour Bottle Sizes :250ml ~2000ml Function :Washing Filling Capping Machine

Quantity:
Share this:

Introduction

This Liner type filling machine is specially designed for Water /Juice / carbonated beverage,Filling type is Normal pressure or Count pressure. All parts of this machine is made of stainless steel materials, it cannot cause rust to influence the filling beverage, it not only reach the standard of sanitation, but also prolong its using life.


Application :

Function :Washing / Filling / Capping System
Suitable for:  PET bottles with screw cap Bottle sizes : 250ml ~ 2L
Filling system:  Normal pressure / Count pressureCapacity:  1000 ~2000BPH
Application:  Water / Juice / Carbonated Beverage / Wine / Beer etc.

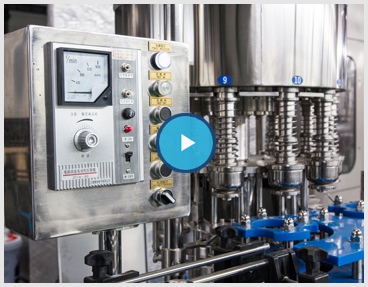

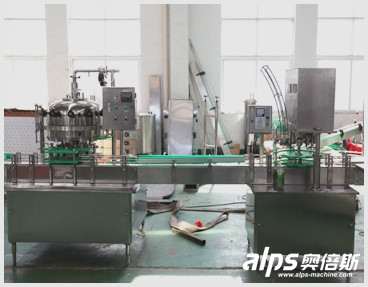

Filling Machine
Filling Machine

Technical Data

Name :  2000BPH Mineral Water Filling Machine
Model ZPC12ZPC16
Capacity: (for 500ml)1000-2000BPH2000-4000
Suitable bottle shapesPET Circular or Square
Bottle diameter Dia50 ~ Dia115mm
Bottle height 150 ~320mm
Application Still water/juice/carbonated beverage
Total power3.2kw4.5kw


Details Description

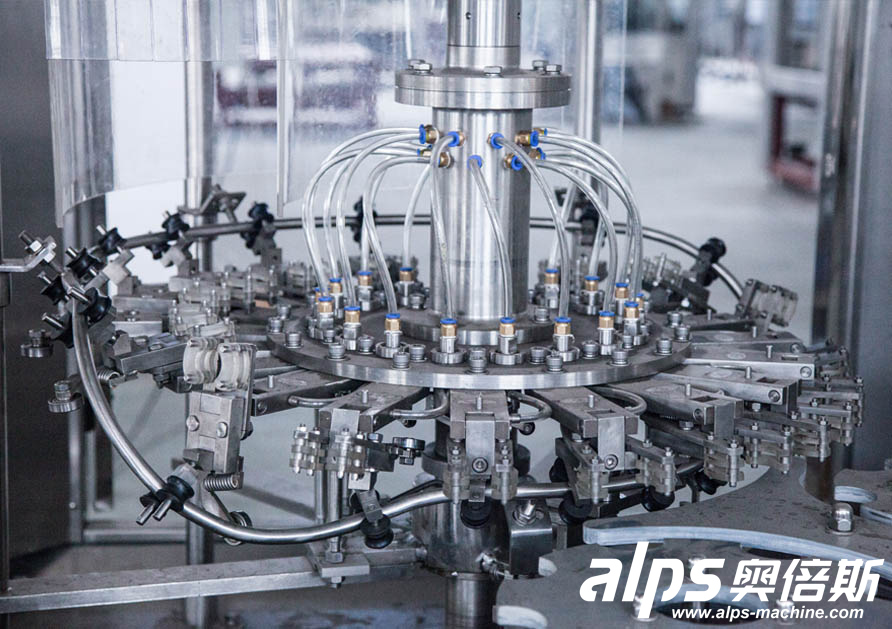

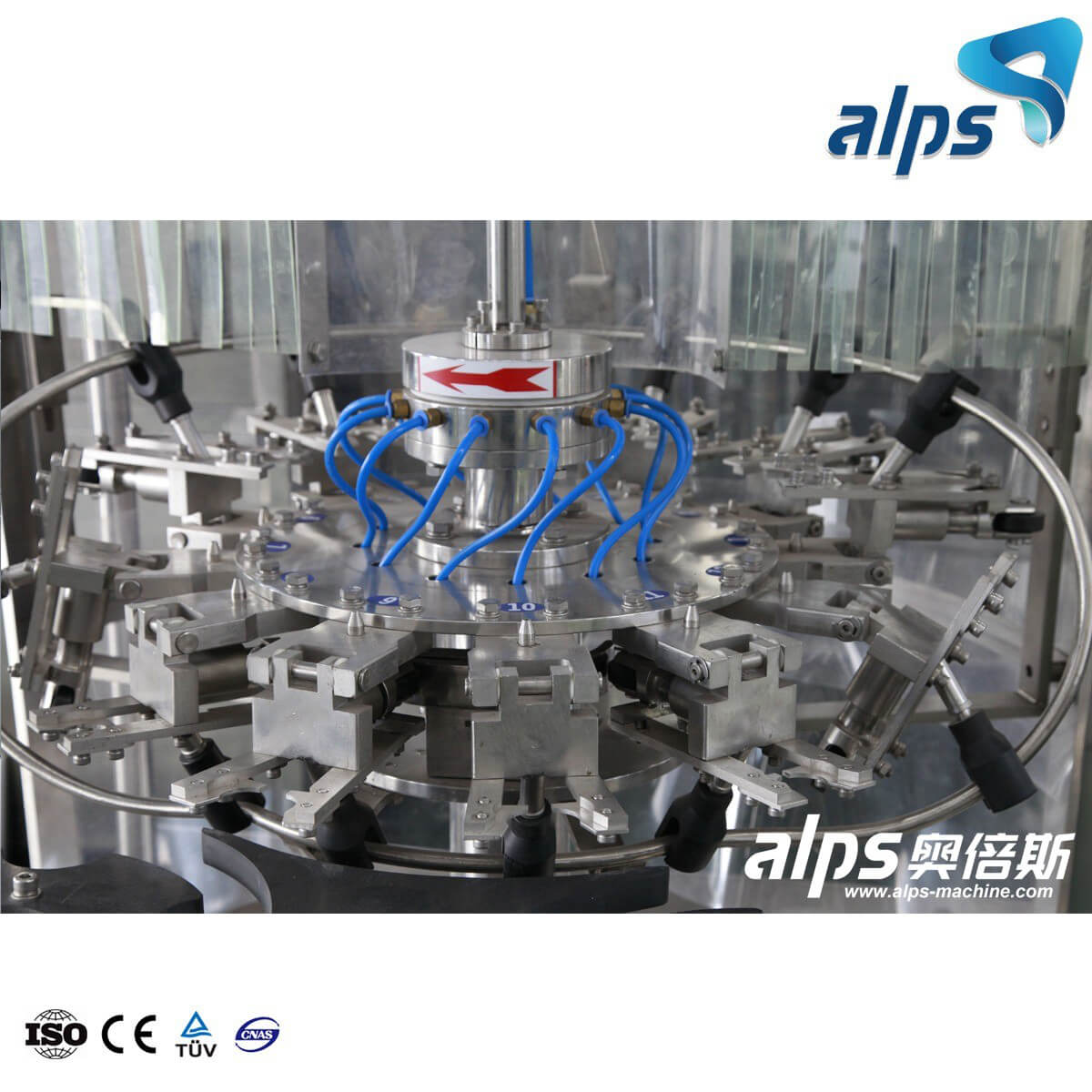

Washing part

Washing part

>> Auto-bottle rinsing machine absorb in high technology from aboard, by adopting gyration method on rinsing device, it can automatically complete working process from bottle entry, bottle rinsing, water removing to sanitized bottle out. It is most advanced and suitable device to rinse the bottles made of PET or glass bottles. .

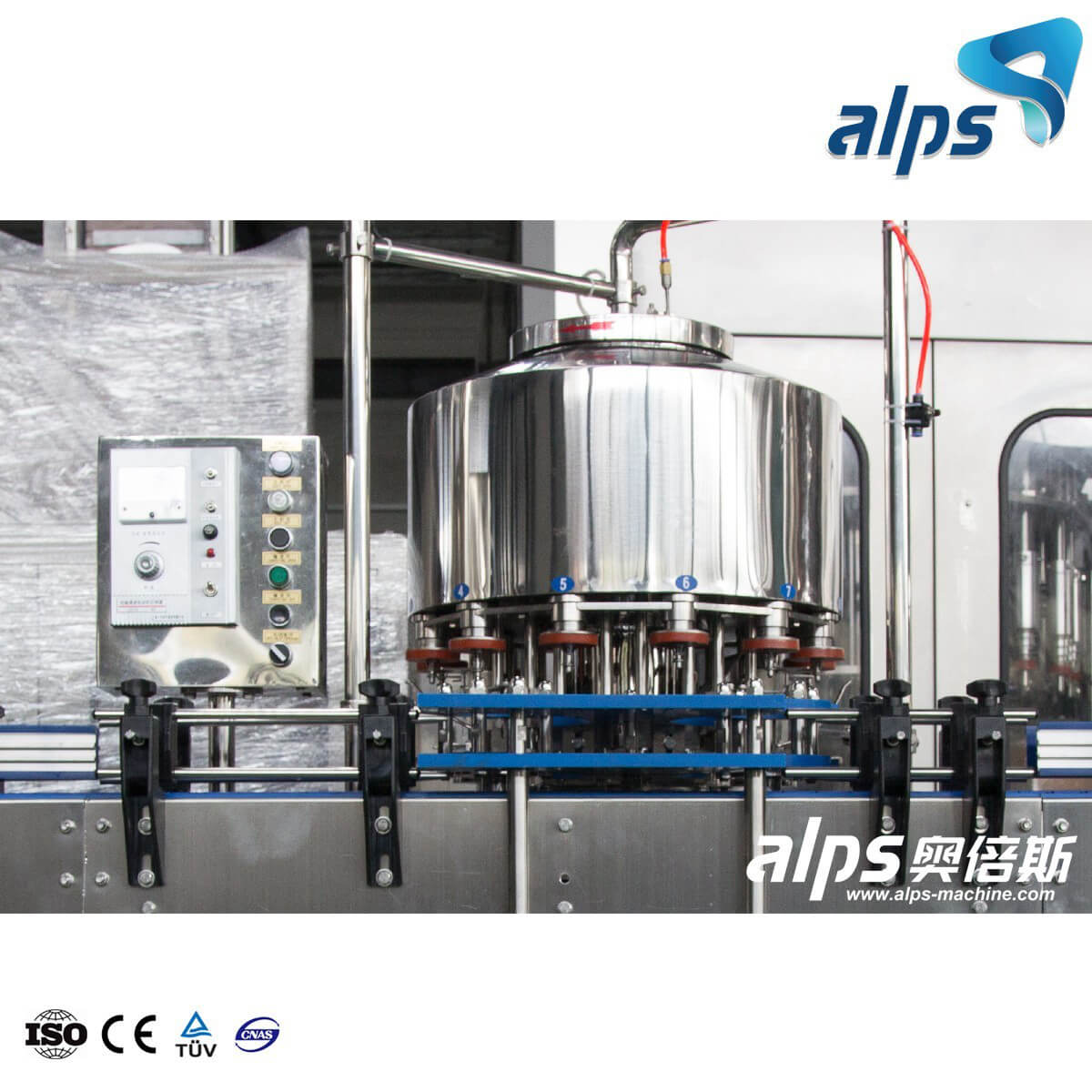

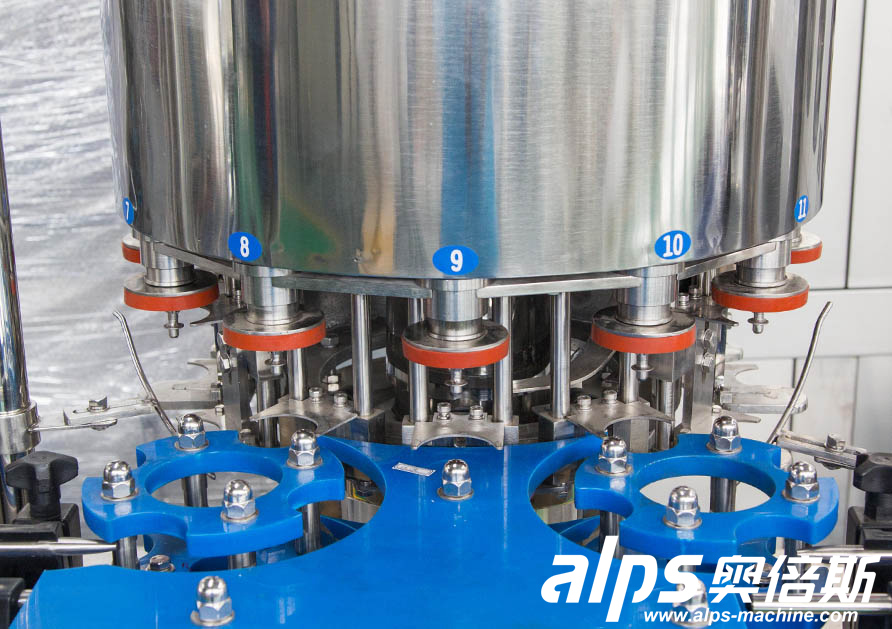

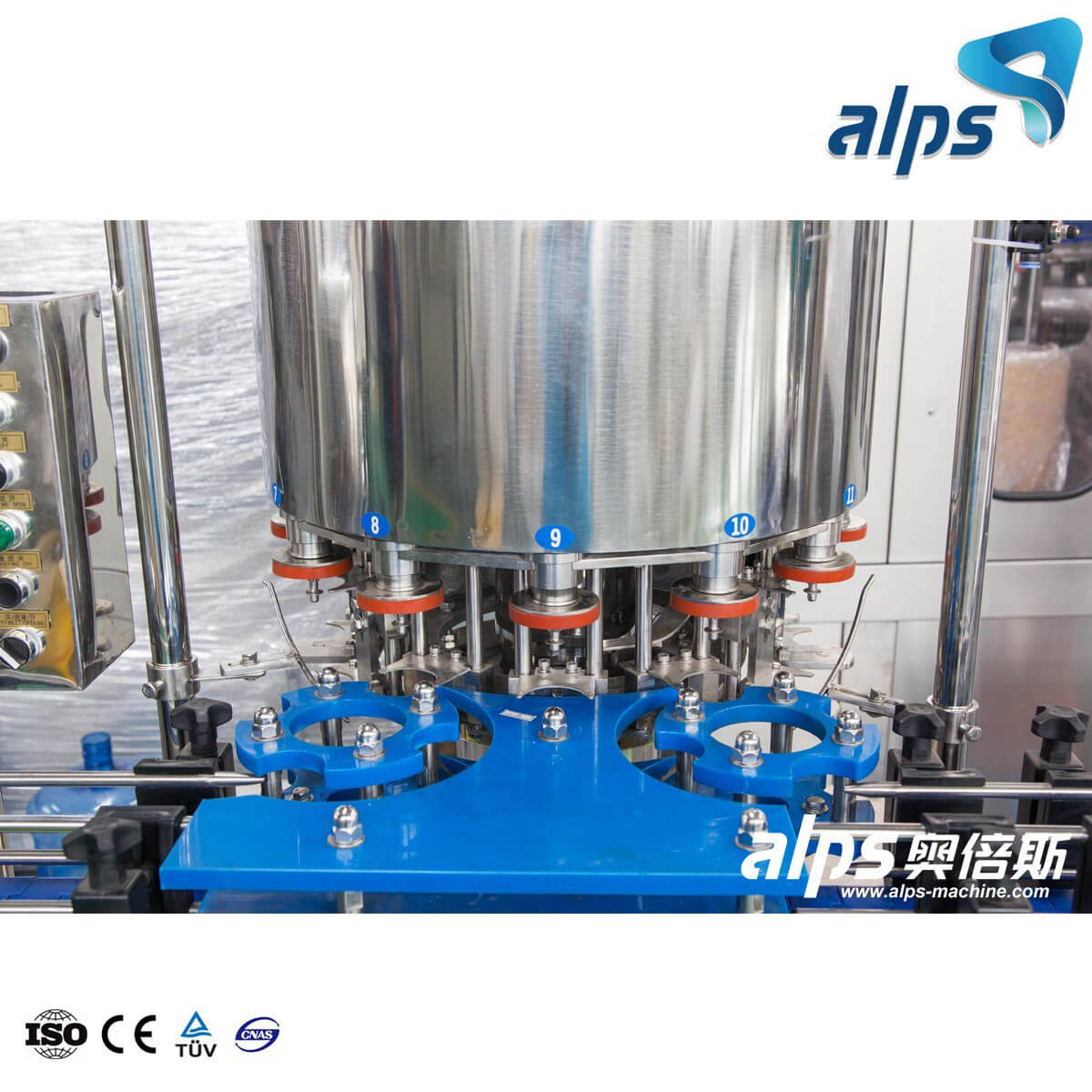

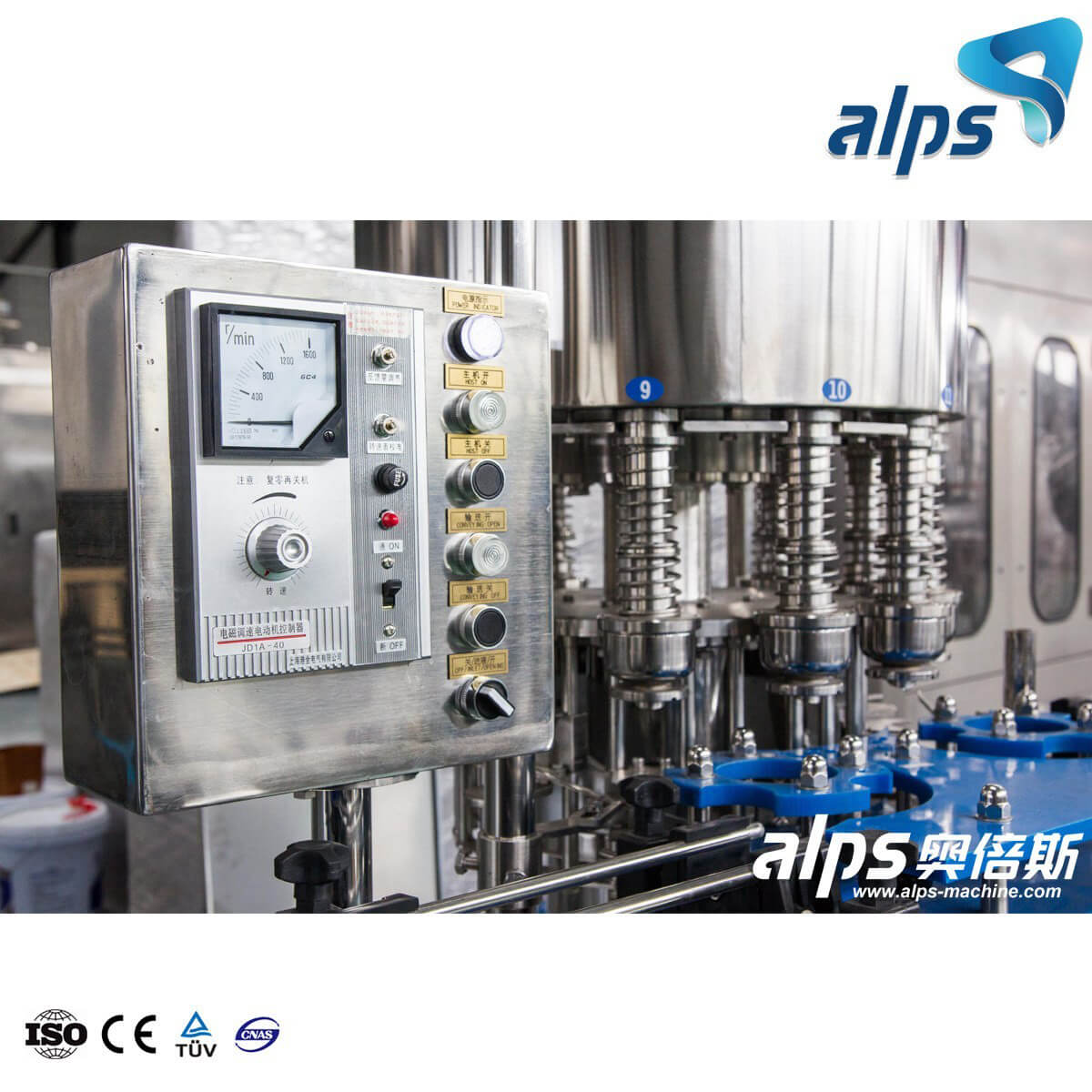

Filling part

Filling part

>>The machine is used in filling carbonated beverage in glass bottle .The handle of the machine can be freely and conveniently
turned to adjust the machine to fill various types of bottles.It is specially suitable for the Soda drinks ,it works automatically
and the speed can be adjusted to make the operations of moving bottle forward steadily and reliably

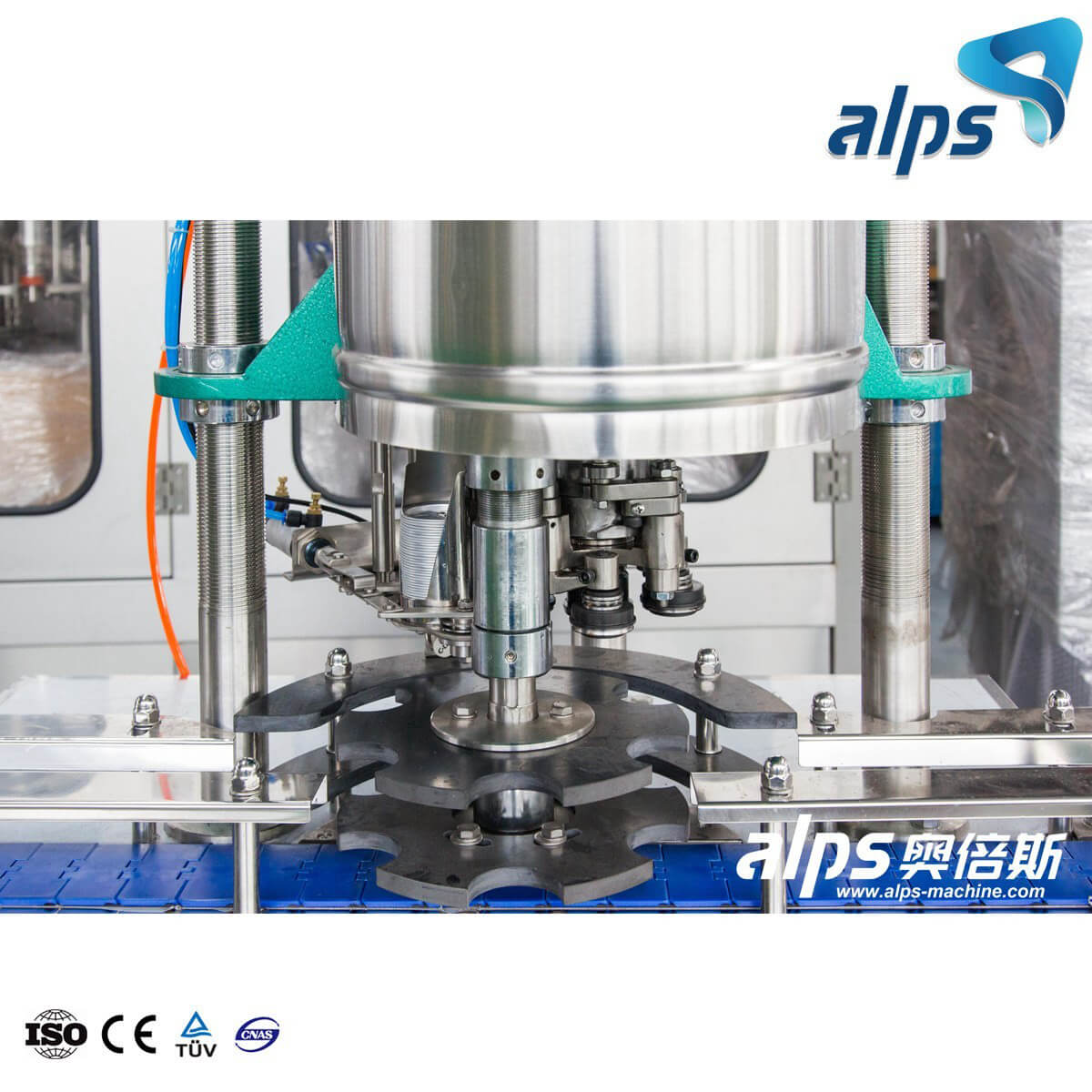

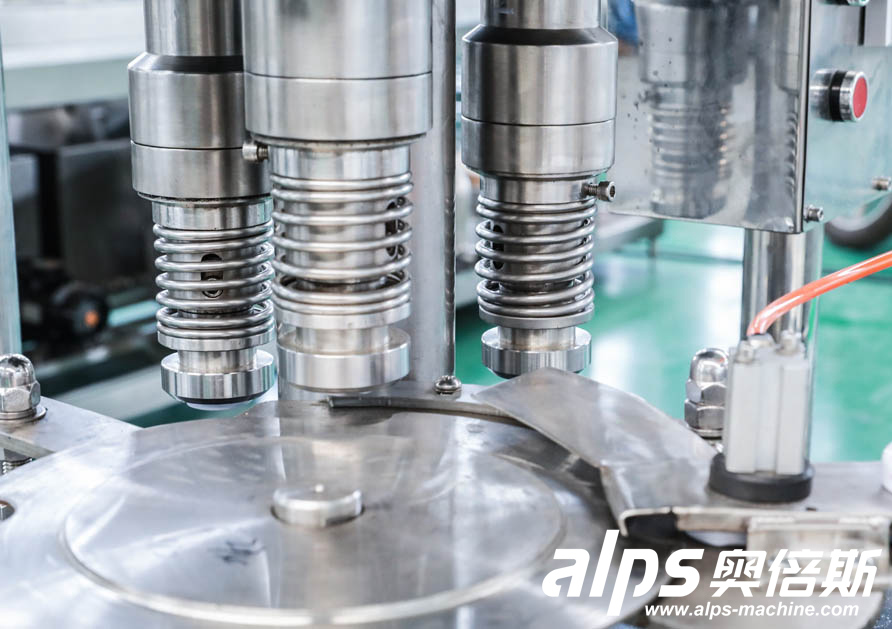

Capping part

Capping part

>>Automatic capping machine connects with transporter and canning machine in line. Bottle is transported to canning machine by conveyor belt, after canned, passed by medium stand, transported to capping machine by conveyor belt, automatic cap-dropping equipment drops cap very well to seal cap. After sealing, conveyor belt puts out bottle and bottles are packed in a box
