10000BPH Automatic Carbonated Drink Filling Machine (Model : DCGF32-32-10) 10000BPH Automatic Carbonated Drink Filling Machine (Model : DCGF32-32-10)

Capacity : 8000~10000 Bottle Per Hour Bottle Sizes :250ml ~2000ml Function :Washing Filling Capping Machine

Quantity:
Share this:

Introduction

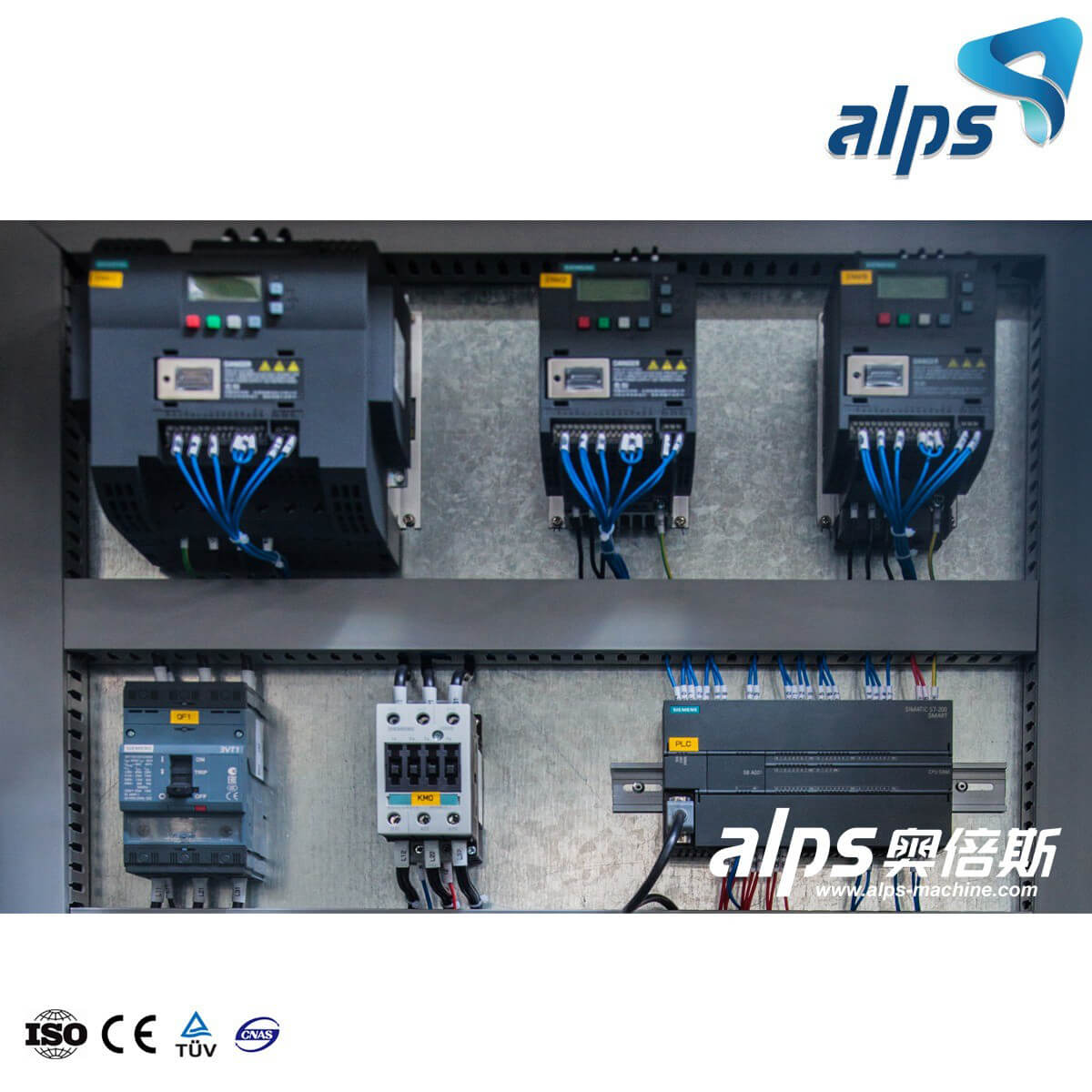

This carbonated drink filling equipment mainly used in the Carbonated beverage filling operations,the three function of bottle washing,filling and capping are composed in one body of the machine ,the whole process is automatic ,it is conveniently turnked to adjust the machine to fill various types of bottles ,the filling operation is faster and more stable due to the advanced filling valve technology ,The famous brand programeed controller (PLC) is adopted to control the machine runs automatically .it is a ideal perferred equipment for beverage makers .


Application :

Function :Washing / Filling / Capping System
Suitable for:  PET bottles with screw cap Bottle sizes : 250ml ~ 2L
Filling system:  Isobaric filling typeCapacity:  8000 ~10000BPH
Application:  CSD drinks / Carbonated drinks / Energy Drinks /Soda water

Technical Data

Name :  10000BPH Carbonated Soft Drink Filling Machine
Model DCGF32-32-10
Capacity: (for 500ml)8000 -10000 Bottles/hour
Suitable bottle shapesPET Circular or Square
Bottle diameter Dia50 ~ Dia115mm
Bottle height 150 ~320mm
Compressor air 0.3 ~0.7 Mpa
Washing medium Aseptic water
Filling type Isobaric filling type
Application Carbonated Drinks / Soda Wtter / Energy Drinks
Total power7.2kw
Overall dimensions4.2X2.2m
Height 2.5m
Weight    7000kg


Details Description

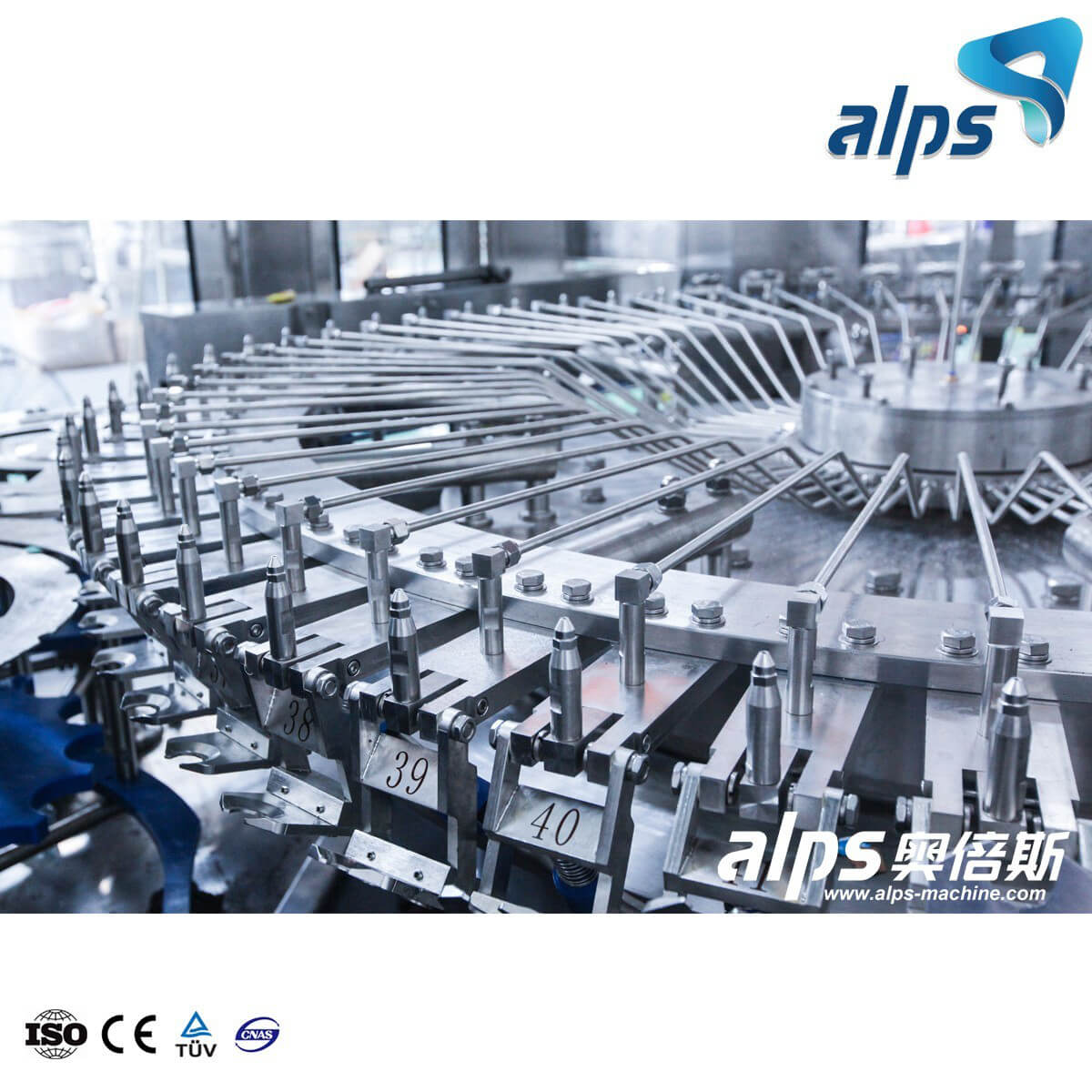

Washing part

Washing part

>> Water distributor, bottle clamp, upturn plate, guide rail, protection cover, spraying device

>>All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean

>>304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

>>304 stainless steel washing pumps

>> All food grade SUS304/316 design

>> Effectively clean bottle and save water

>> Resting waiting for water drops

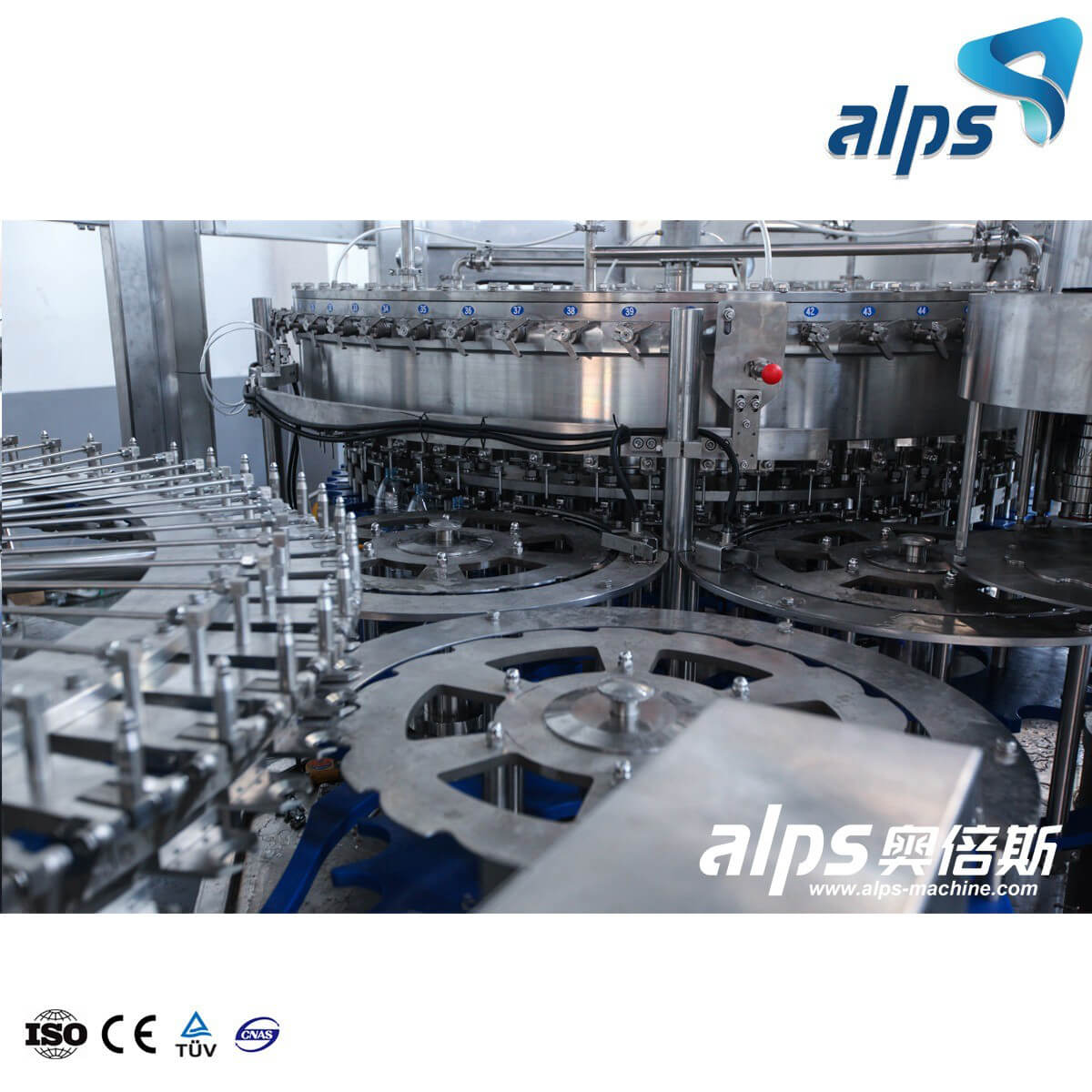

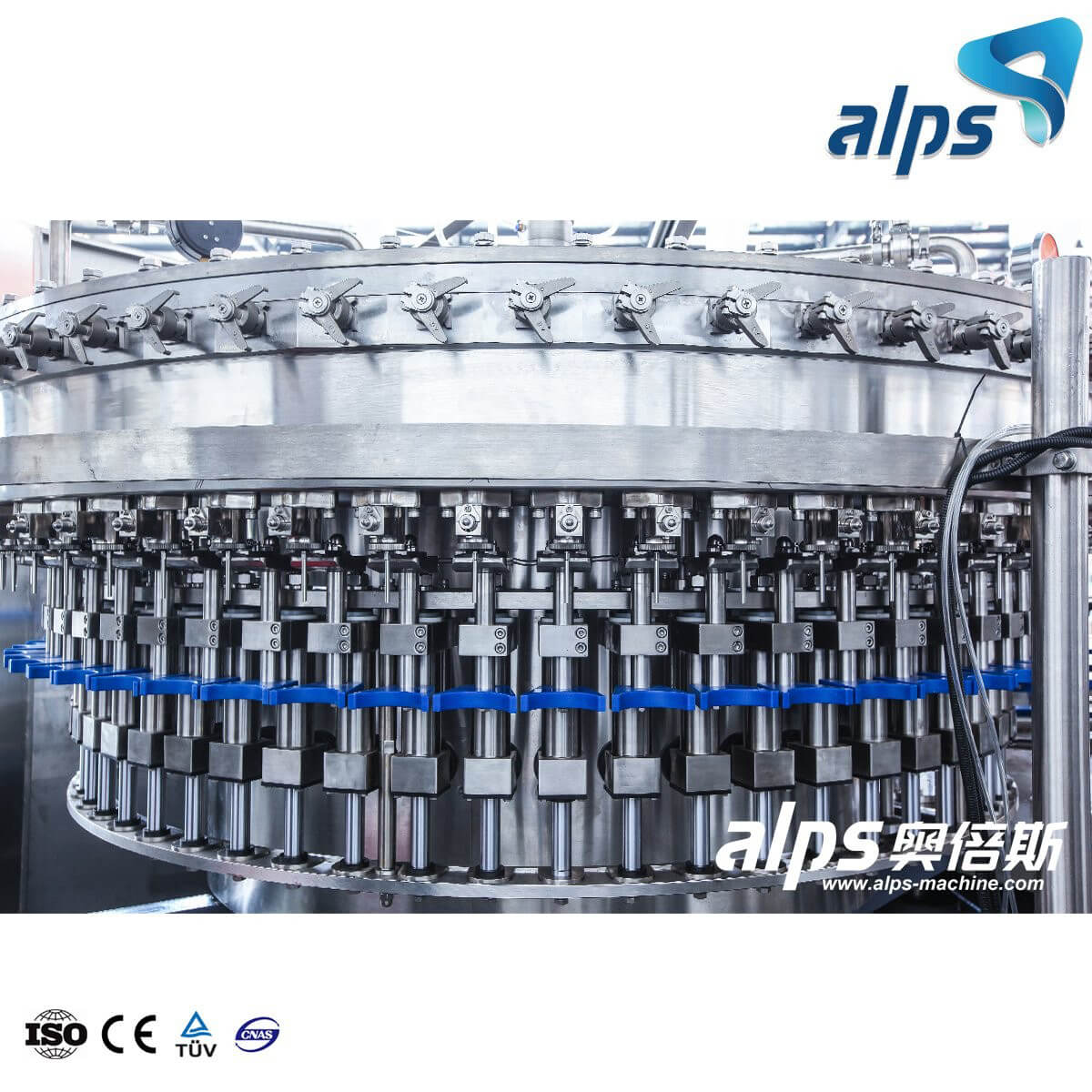

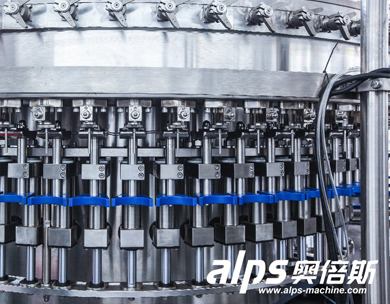

Filling part

Filling part

>>High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily

>>All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean

>> Filling valve, guide rail, elevating device, etc.

>> Isobari filling type

>> Filling volume adjustable

>> All food grade SUS304/316 design, harmless for beverages and easy to clean

>>No bottle no filling

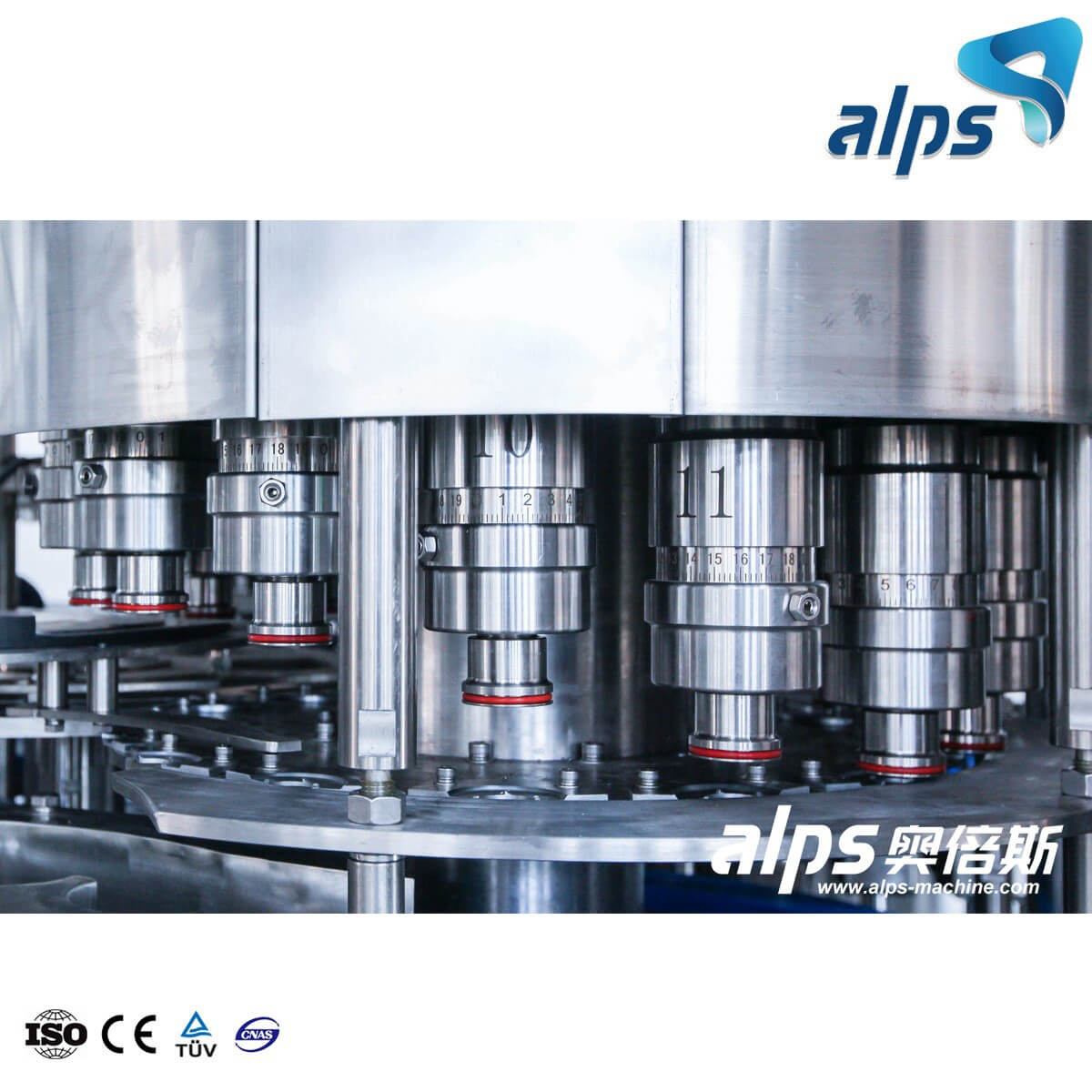

Capping part

Capping part

>>Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

>>All 304stainless steel construction

>> Cap unscrambler, cap drop rail and capper

>> Minimum bottle crash during capping

>> No bottle no capping

Cooperation Brand

Turnkey Project

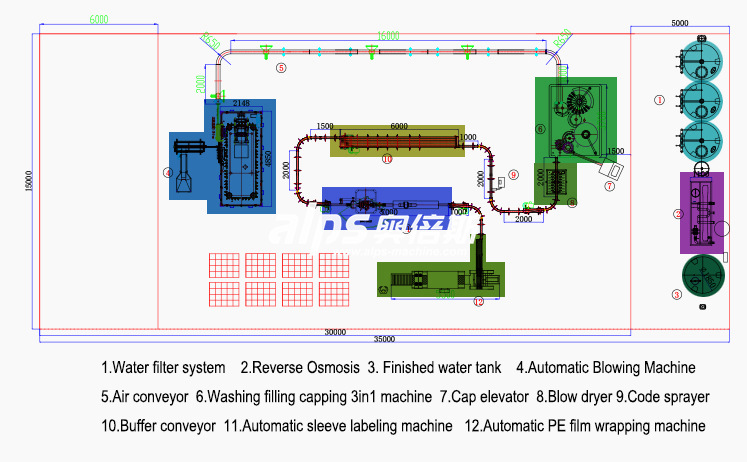

1500BPH Automatic 5L / 10L  Bottle Filling Machine
