Advanced Liquid Package Solution
Complete
Carbonated Drinks
Filling Machine Production Line
Carbonated Drinks
Filling Machine Production Line
We supply complete solution for the carbonated beverage bottling plant ,including Water treatment system / Beverage mixing System / Washing filling capping machine / Pasteurizer tunnel / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system
| Model | DCGF14-12-5 | DCGF16-16-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 |
| Capacity | 2000-2500bph | 3000-5000bph | 6000-8000bph | 9000-11000bph | 12000-13000bph |
| Occupy Area | 400㎡ | 500㎡ | 800㎡ | 1200㎡ | 1500㎡ |
| Power Consumption | 150KW | 350KW | 500KW | 800KW | 1000KW |
| Number of Labors | 10 | 10 | 8 | 10 | 10 |
| Roughly Budget | $100,000-120,000 | $160,000-250,000 | $300,000-500,000 | $500,000-800,000 | $800,000-1,200,000 |
Watch The Video
CAD Configuration

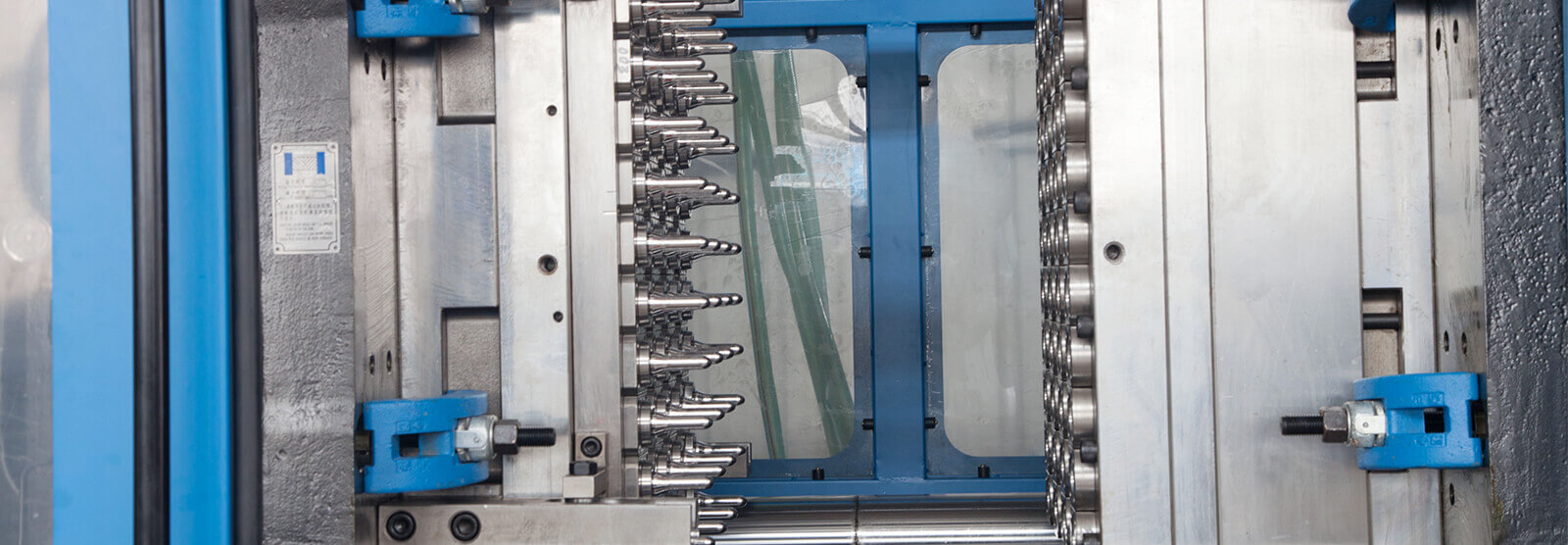

Injection Molding Machine
Widely Used
For the PET Preform and Cap production, Adopting Europe technology, hydraulic unit adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English language to use. Close-loop PID temperature control with the advantage of high precision.
Read More >

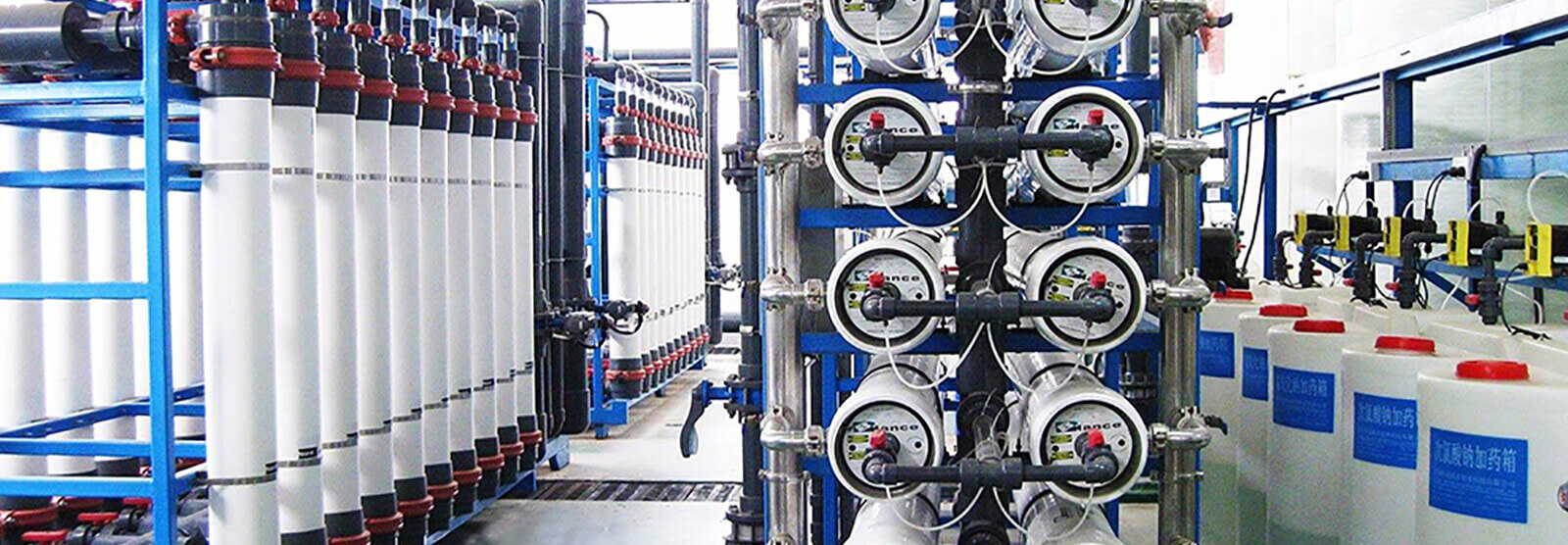

Water Treatment
Widely Used
According to customer's water source analysis report and the final water standard required, we will suggest customer to choose the suitable water treatment plants.
Read More >

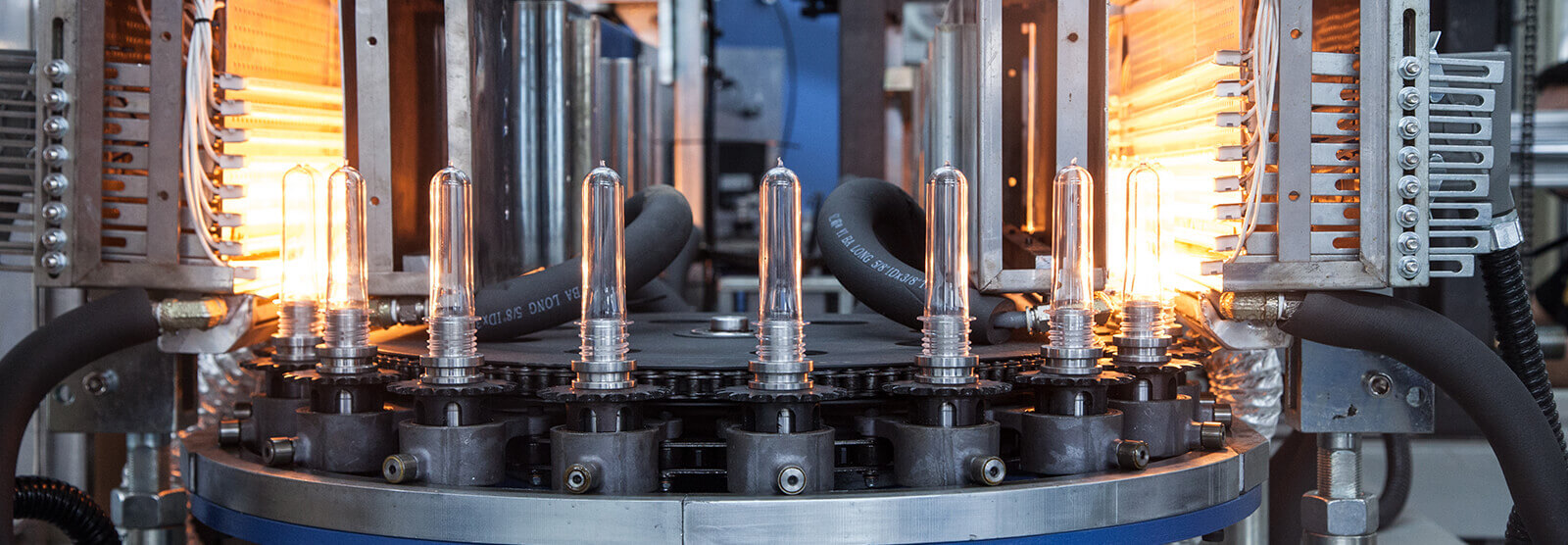

Blowing
Widely Used
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. It is necessary for the water filling production line, 330ml-2L water filling machine line.
Read More >

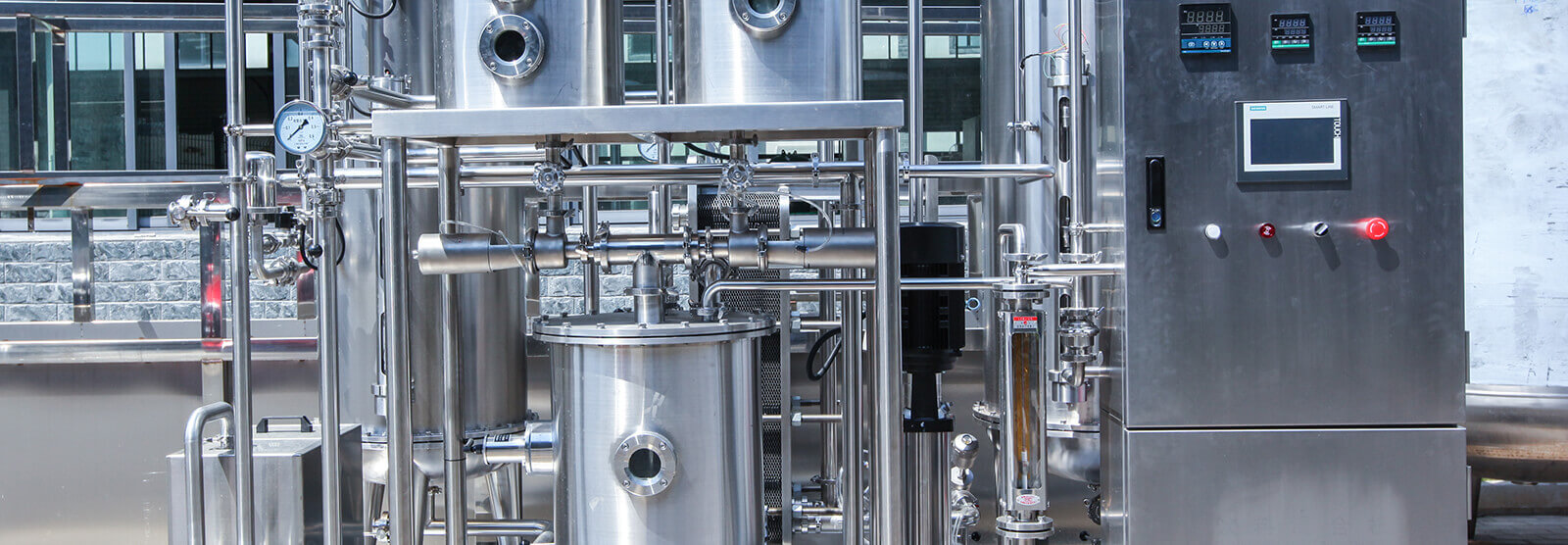

Carbonated drink mixing
Widely Used
Professional beverage mixing system with structure reasonable, mix precision is high, CO2 mixes fully, has two times of cooling, two carbonation merits. Mainly is suitable for kinds of carbonated drink's mix processing, also may use in the paste drink, the fermentation drink and so on other soft drinks' mix processing.
Read More >

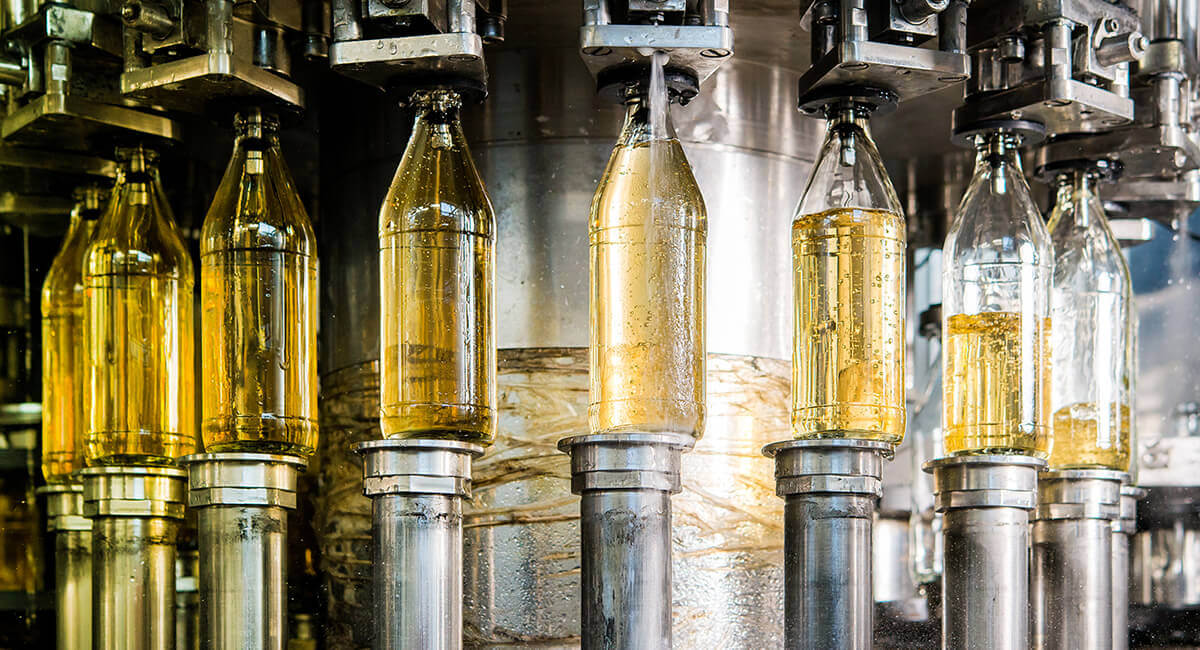

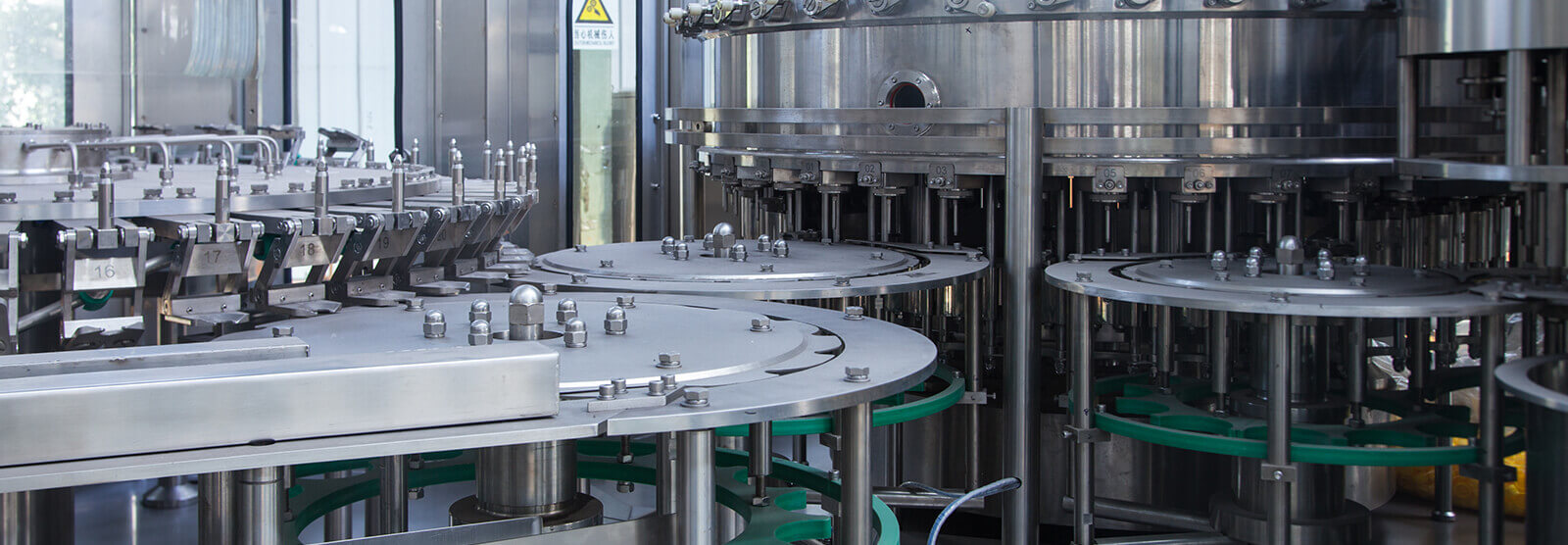

Filling
Widely Used
This water bottling machine line is mainly used for filling drink water. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The micro pressure filling operation of the new type is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
Read More >

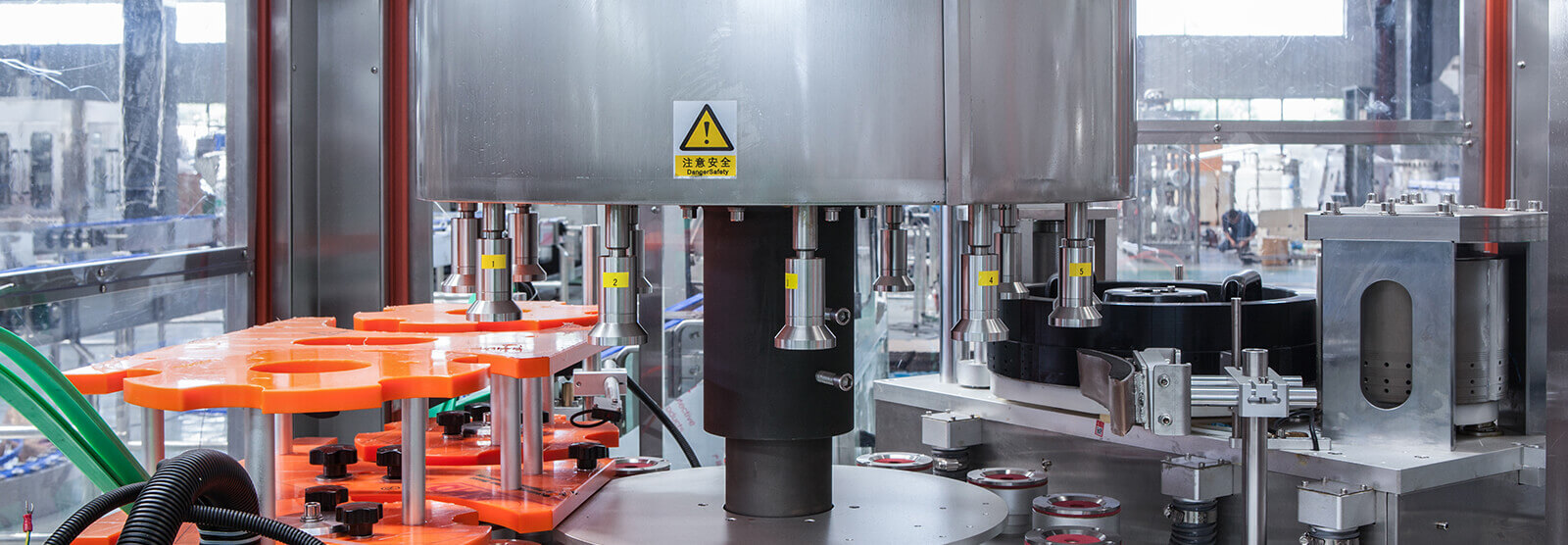

PVC / OPP labeling
Widely Used
We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, Adhesive stick label, Wet glue label
Read More >

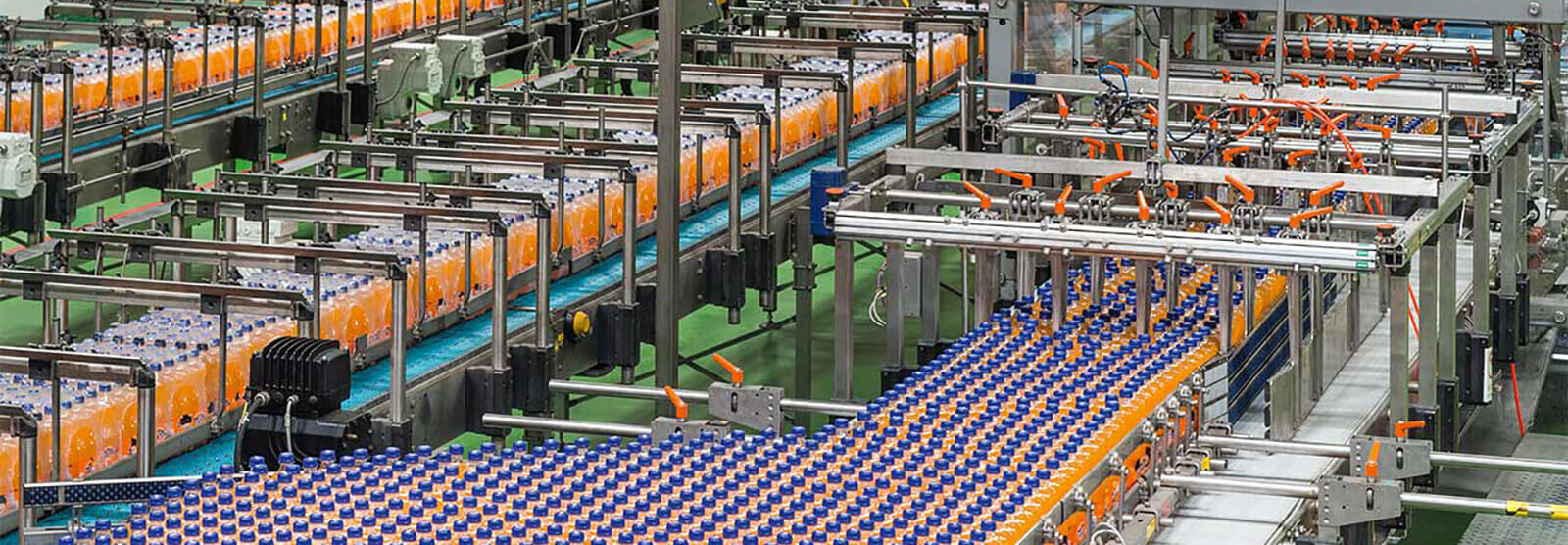

Conveyor
Widely Used
We design the factory layout based on customer factory sizes, whole line design is based on famous brand motors and automatic lubricant system, and with less power consumption, and save space.
Read More >

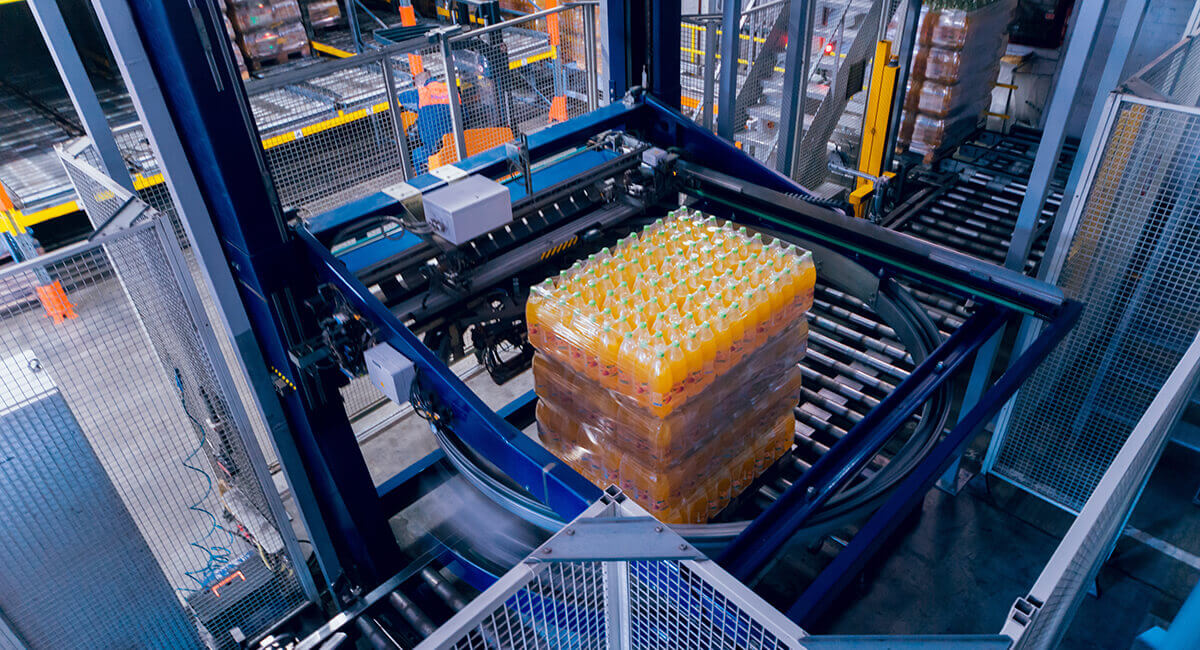

Packing
Widely Used
As customer request and market demand, we provide the better solution for the final product package.
We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, Adhesive stick label, Wet glue label, and packing machine have the film shrink machine and carton box package.
Read More >We usually respond within 12 hours, or faster.
