Advanced Liquid Package Solution
Capacity : 2000 bags per Hour Bottle Sizes :250ml ~1000ml Function :Bag making and filling

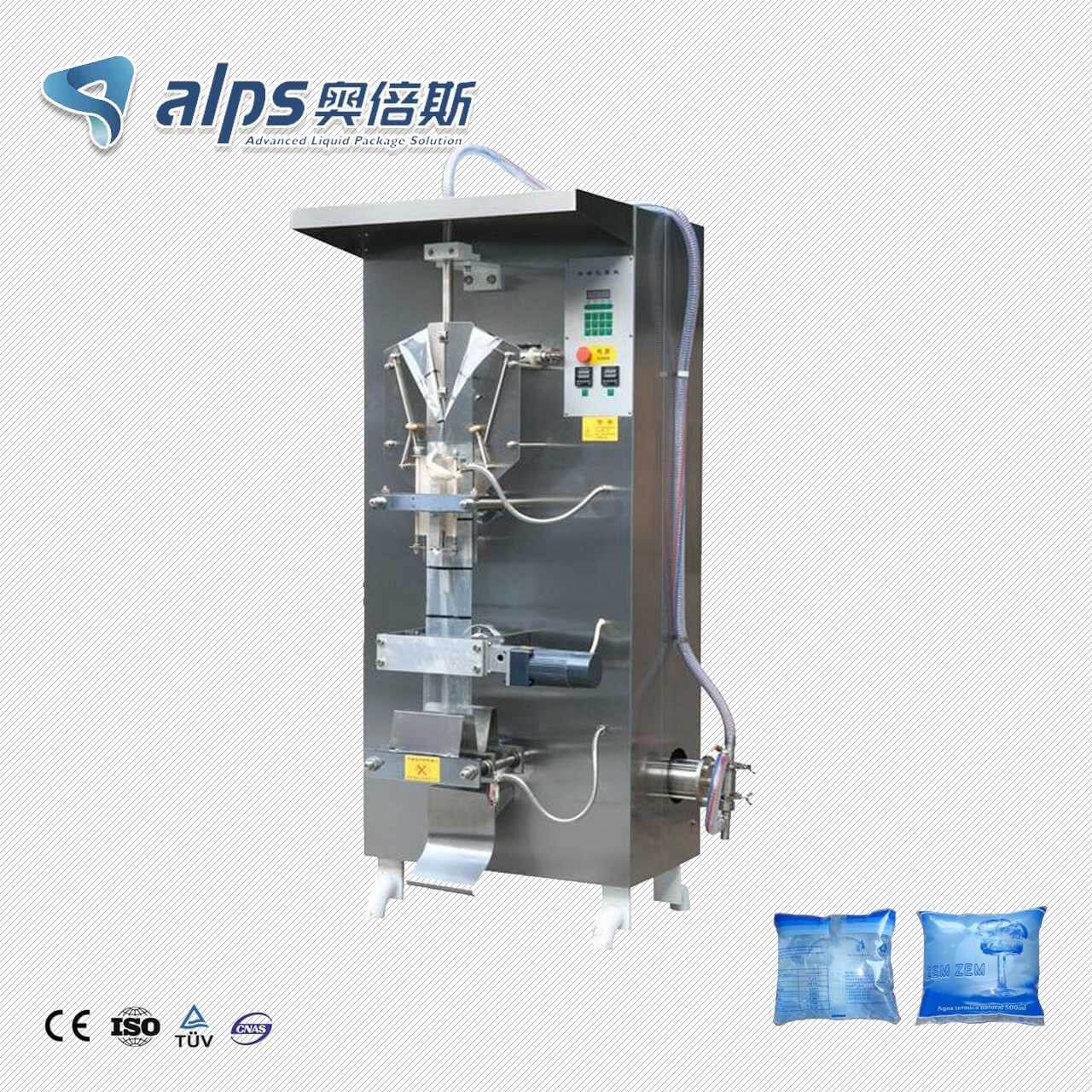

Sachet filling machine is high precision packing machine and the most advanced liquid compound packing machine in china, which is standing, three side sealing and intermittent. It can automatically complete Bag-making, filling, sealing, printing, cutting and counting .Controlled by microprocessor and automatic photocell. It is widely used to pack all kinds of liquid without gas, especially soy, wine, vinegar, juice, soybean milk, peanut oil, vegetable oil, plant oil, mineral water and liquid chemical products.
Application :
| Function :Sachet water filling machine | |||
| Suitable for: Water Sacet / Water pounch | Bottle sizes : 250ml ~ 1L | ||
| Filling system: Volumetric filling | Capacity: 2000BPH | ||
| Application: still water, pure water, RO water, mineral water, sparkling water, etc. | |||
| Name : Sachet water filling machine | |
| Model | SJY2000 |
| Capacity | 2000 bags/hour |
| Packing weight | 1-10kg |
| Packing size | L30-150×W60-160mm |
| Material of pack film | single layer plastic film |
| Weight | 270kg |
| Overall dimensions | 850×1350×1800mm |
| Material | Stainless steel |
| Filling type | Piston type |
| Total power | 380V |
| Control Type | Automatic type |
Main Function:
1.Computer controlled, simple operation, easy to maintain,stable performance, reliable quality.
2.stepless speed regulate Packaging speed .
3.Use of specific technology control bags, do not need bag long-adjustable, make sure accurate bag length, convenient adjustment.

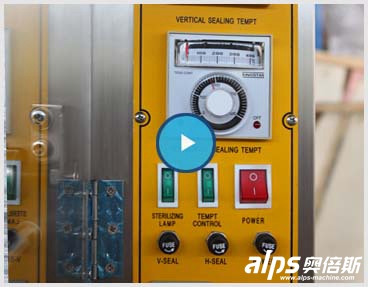

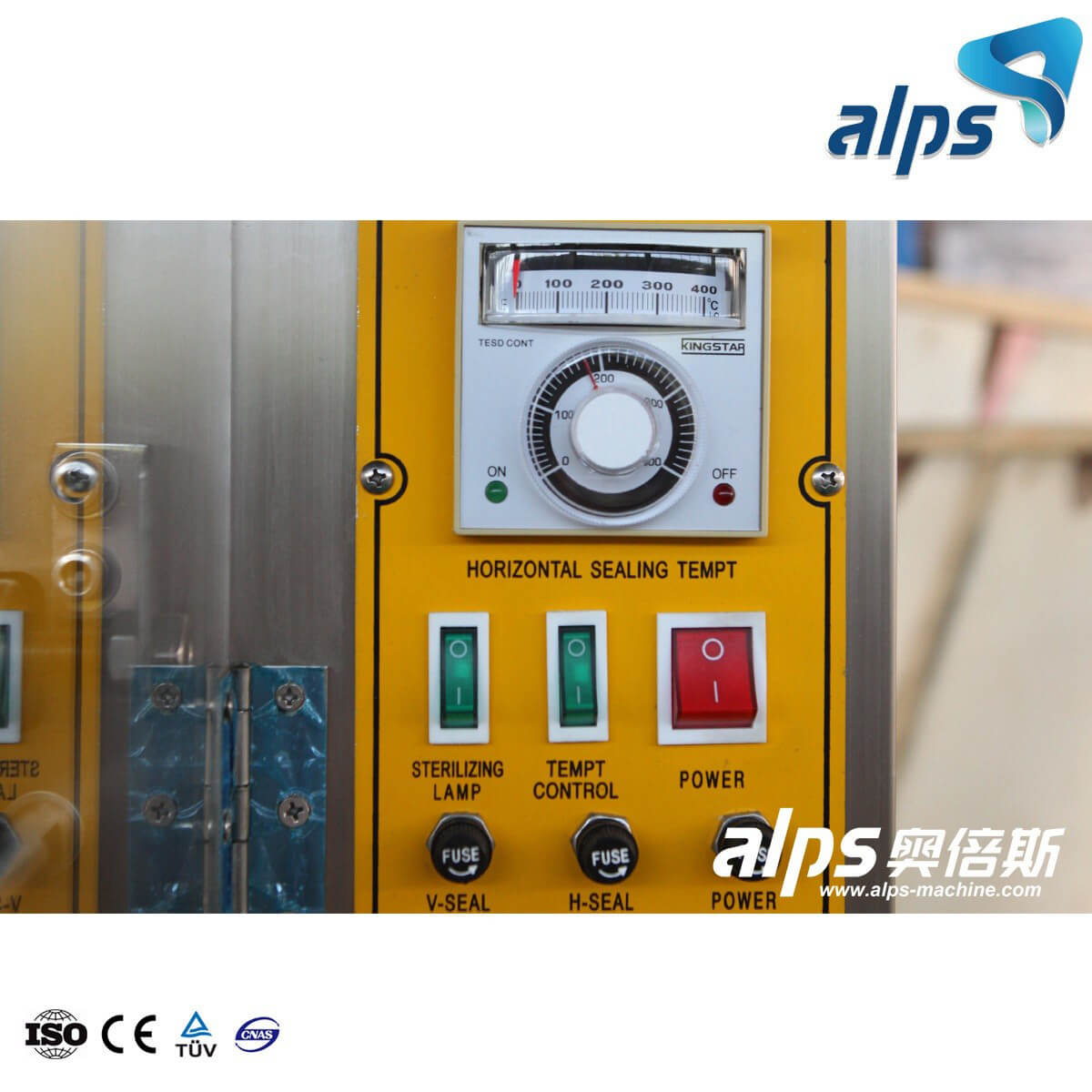

4.Intelligent temperature control device can control temperature heat sealing temperature to ensure the sealing quality.
5.Replace spare parts .can realize trilateral, quadrilateral sealing flat or pillow bag.
6.Unique photoelectric positioning technology to ensure that bag's colored logo integrity.
7.Packaging capacity within rated can be modified without limited.

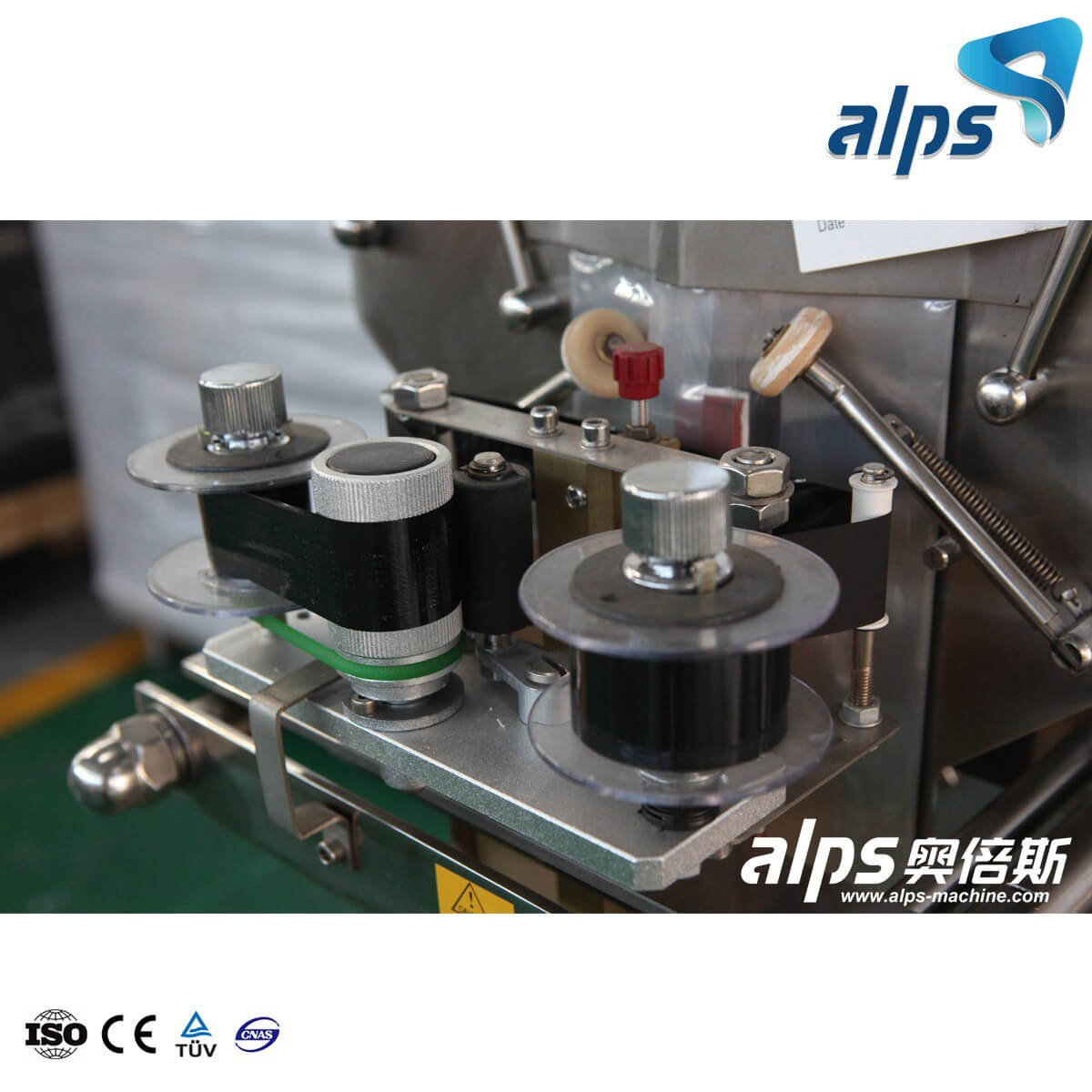

8.Automatic batch printing products, easy to use.
9.stainless-steel structure, in line with food and medicine packaging health requirements.
