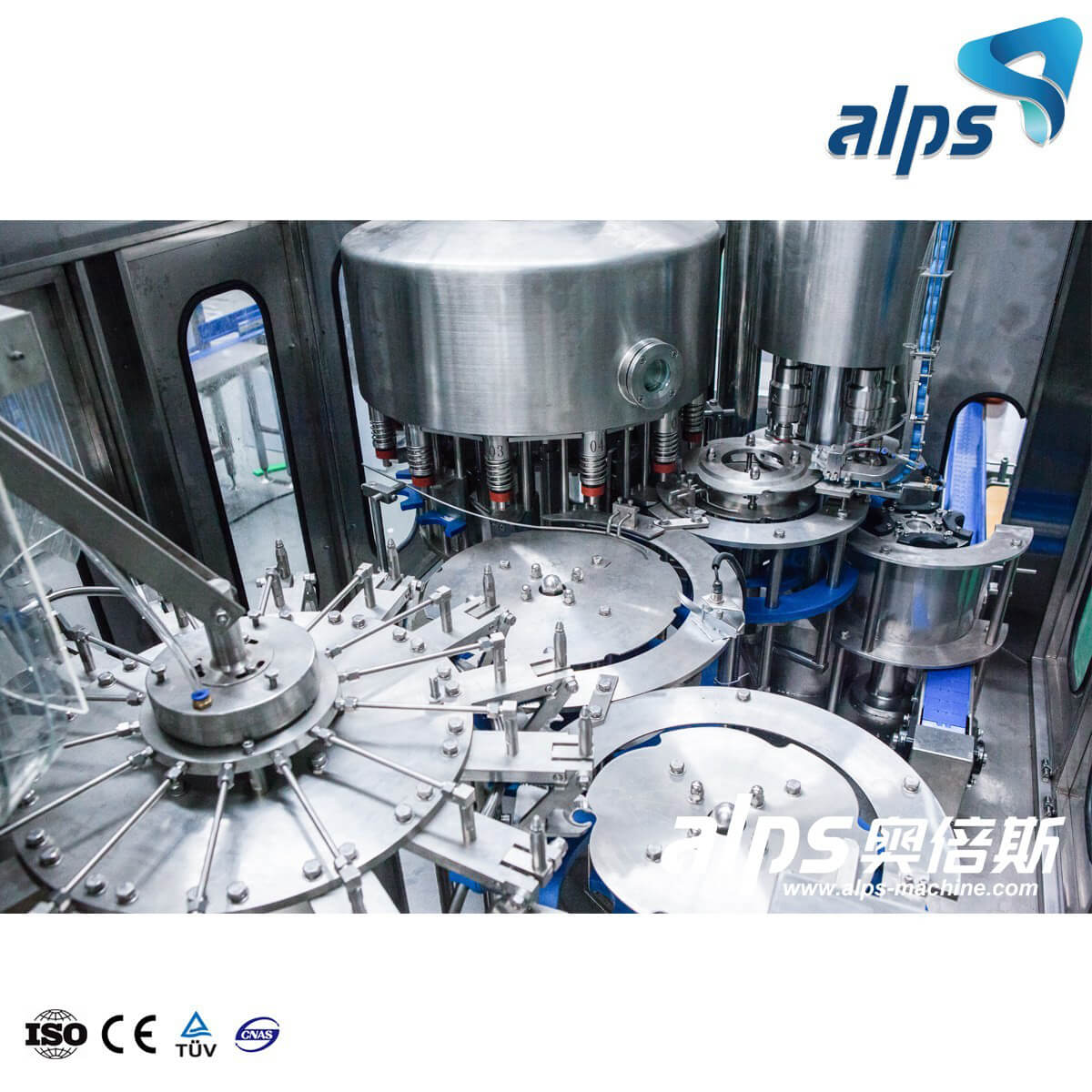

10000BPH Automatic Mineral Water Filling Machine (Model : CGF24-24-8) 10000BPH Automatic Mineral Water Filling Machine (Model : CGF24-24-8)

Capacity : 8000~12000 Bottle Per Hour Bottle Sizes :250ml ~2000ml Function :Washing Filling and Capping Machine

Share this:


This automatic mineral water filling machine mainly used in the water filling operations, the three function of bottle washing, filling and capping are composed in one body of the machine, the whole process is automatic, it is conveniently turnked to adjust the machine to fill various types of bottles, the filling operation is faster and more stable due to the advanced filling valve technology, The famous brand programeed controller (PLC) is adopted to control the machine runs automatically. It is an ideal perferred equipment for beverage makers.

Application :

Function :Washing / Filling / Capping System
Suitable for:  PET bottles with screw cap Bottle sizes : 250ml ~ 2L
Filling system:  Gravity fillingCapacity:  8000 ~12000BPH
Application:  still water, pure water, RO water, mineral water, sparkling water, etc.

Technical Data

Name :  10000BPH Mineral Water Filling Machine
Model CGF24-24-8
Capacity: (for 500ml)8000 -12000 Bottles/hour
Suitable bottle shapesPET Circular or Square
Bottle diameter Dia50 ~ Dia115mm
Bottle height 150 ~320mm
Compressor air 0.3 ~0.7 Mpa
Washing medium Aseptic water
Rinsing pressure >0.06Mpa <0.2Mpa
Application Still water / Pure water / Mineral water
Total power6.2kw
Overall dimensions3.2X2.5m
Height 2.3m
Weight     6500kg

Details Description

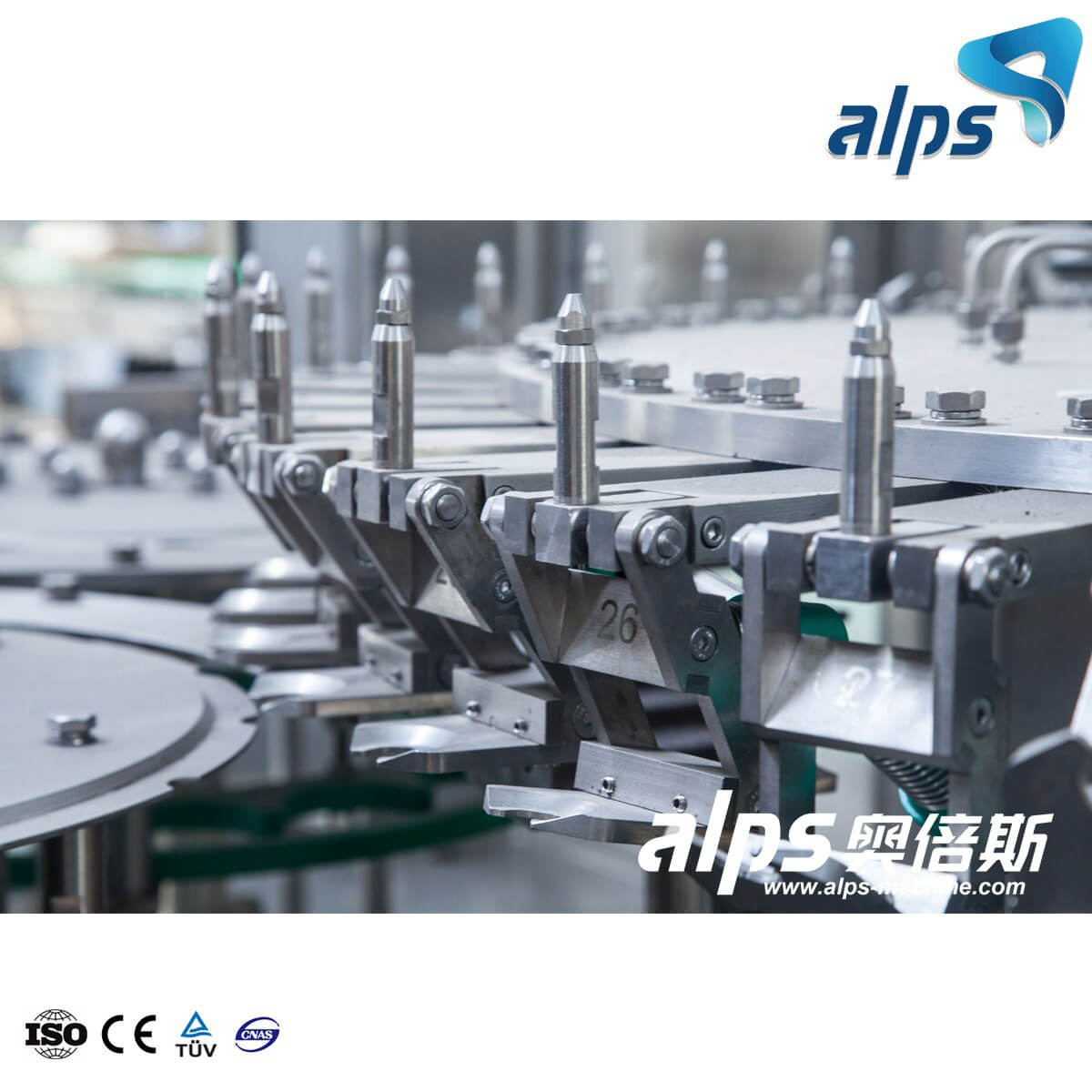

Washing part

Washing part

>> Water distributor, bottle clamp, upturn plate, guide rail, protection cover, spraying device

>>All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean

>>304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

>>304 stainless steel washing pumps

>> All food grade SUS304/316 design

>> Effectively clean bottle and save water

>> Resting waiting for water drops

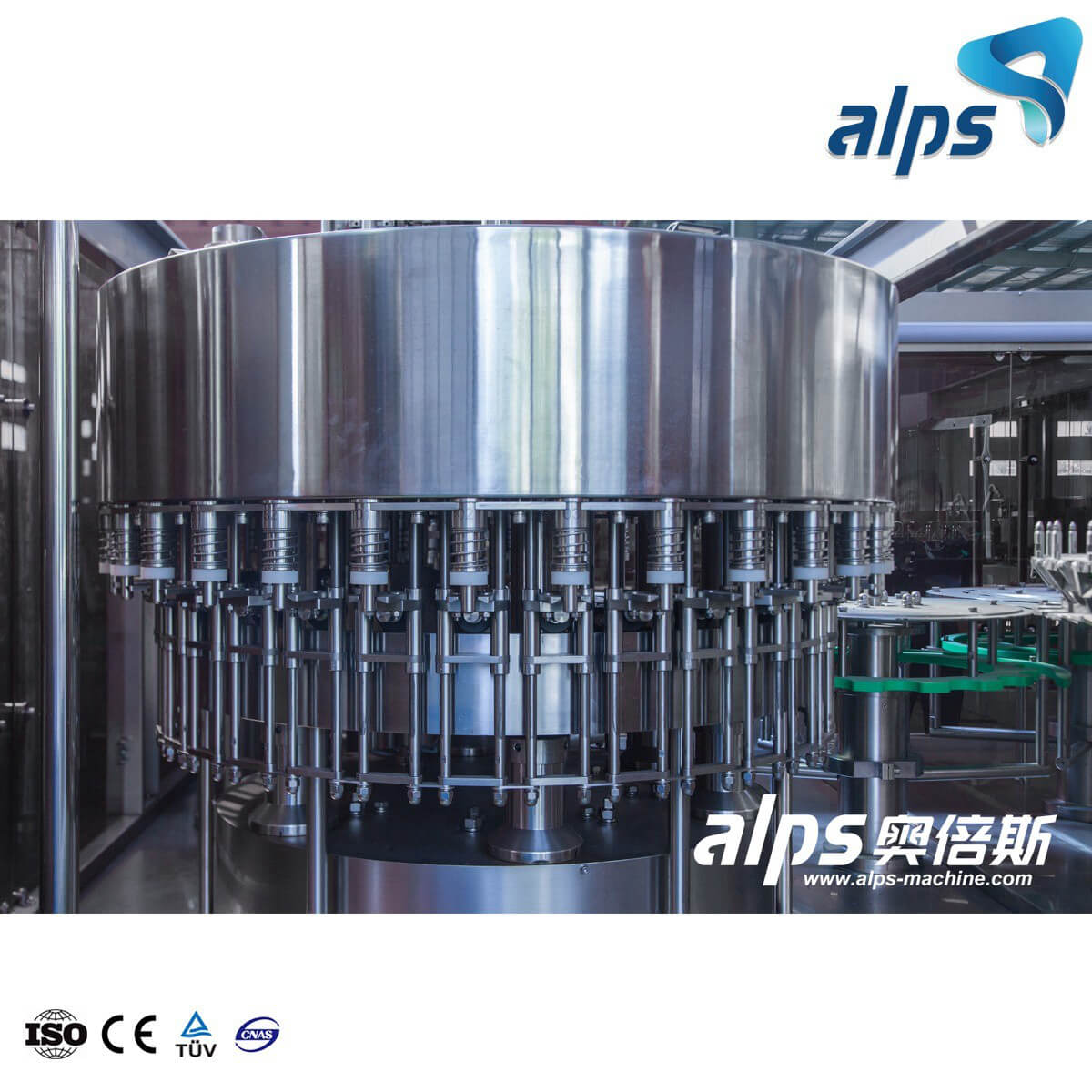

Filling part

Filling part

>>High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily

>>All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean

>> Filling valve, guide rail, elevating device, etc.

>> Gravity filling method

>> Filling volume adjustable

>> All food grade SUS304/316 design, harmless for beverages and easy to clean

>>No bottle no filling

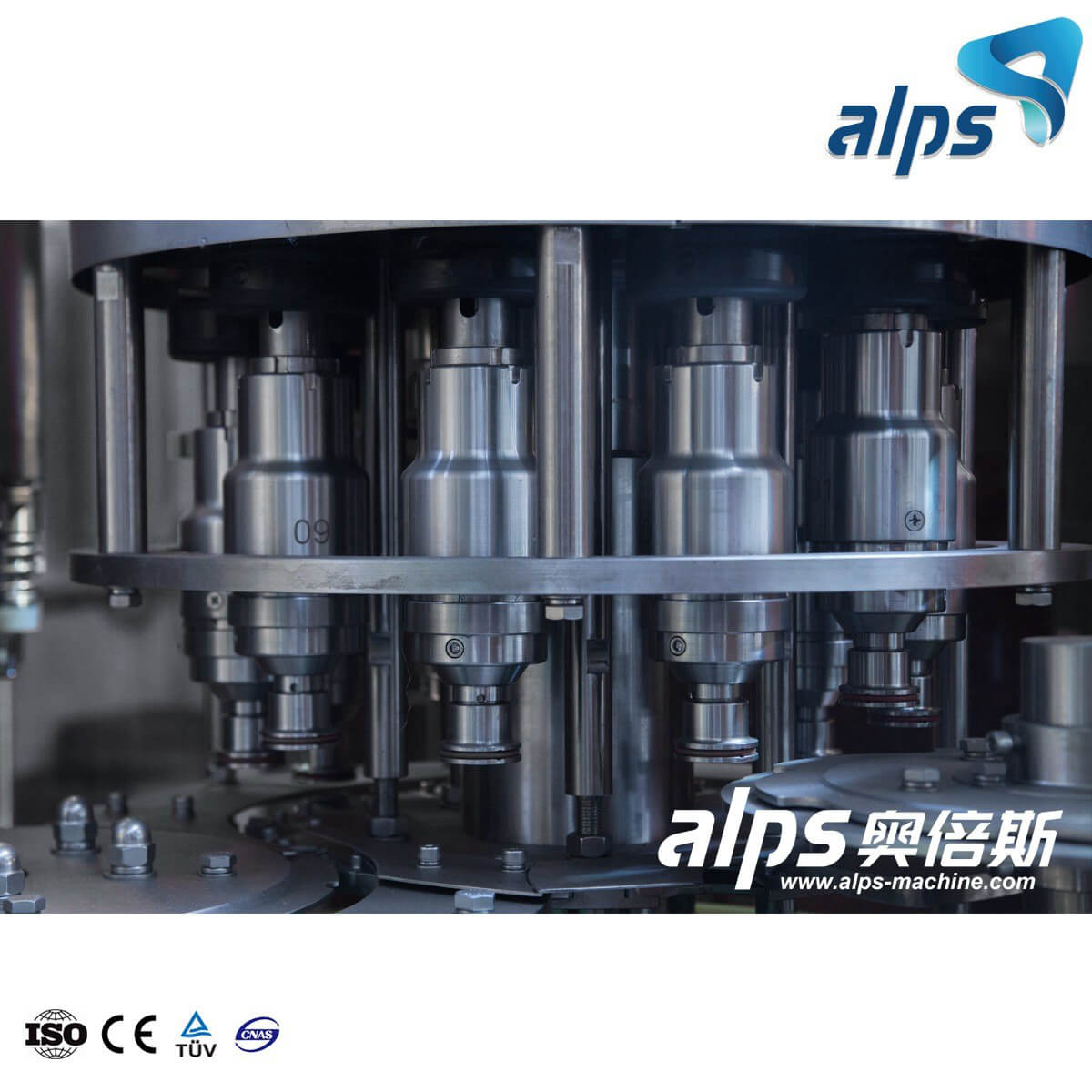

Capping part

Capping part

>>Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

>>All 304stainless steel construction

>> Cap unscrambler, cap drop rail and capper

>> Minimum bottle crash during capping

>> No bottle no capping
