12,000 BPH Fully Automatic PET Bottle Washing-Filling-Capping 3-in-1 Production Line for Mineral/Pure Water 12,000 BPH Fully Automatic PET Bottle Washing-Filling-Capping 3-in-1 Production Line for Mineral/Pure Water

Capacity: 12000 Bottle Per Hour
Bottle Sizes: 250ml ~2000ml
Function: Washing Filling and Capping Machine

Quantity:
Share this:

Introduction

12000 BPH Fully Automatic PET Bottle Washing-Filling-Capping Line.jpg

Fully Automated 3-in-1 Bottling Line for High-Efficiency Water Production

Our 12,000 BPH PET Bottle Washing-Filling-Capping Line integrates ultrasonic washing, volumetric filling, and rotary capping into a single system, designed for mineral water, purified water, and beverage manufacturers seeking high-speed, precision, and contamination-free bottling.


Application :

Function :Washing / Filling / Capping System
Suitable for:  PET bottles with screw cap Bottle sizes : 250ml ~ 2L
Filling system:  Gravity fillingCapacity:  12000 BPH
Application:  still water, pure water, RO water, mineral water, sparkling water, etc.


Technical Data

Technical parameter : water bottling plant sale
ModelCGF8-8-3CGF14-12-4CGF18-18-6CGF24-24-6CGF32-32-8CGF40-40-10
Capacity(for 500ml)20003000-40006000-80008000-1200013000-1500016000-18000
Suitable bottle shapesPET circular or square
Bottle diameter(mm) Dia50-Dia115mm
Bottle height (mm)160-320mm
Compressor air0.3-0.7Mpa
Washing meidiumAseptic water
Rinsing pressure>0.06Mpa <0.2Mpa
Applicationwater bottling plant sale
Total power (KW)4.4kw4.4kw4.4kw5.2kw6.2kw7.8kw
Overall dimensions2.3*1.9m2.5*1.9m2.8*2.15m3.1*2.5m3.8*2.8m4.5*3.3m
Height 2.3m2.5m2.5m2.5m2.5m2.6m
Weight(kg)2500kg3200kg4000kg4500kg6500kg8000kg


Details Description

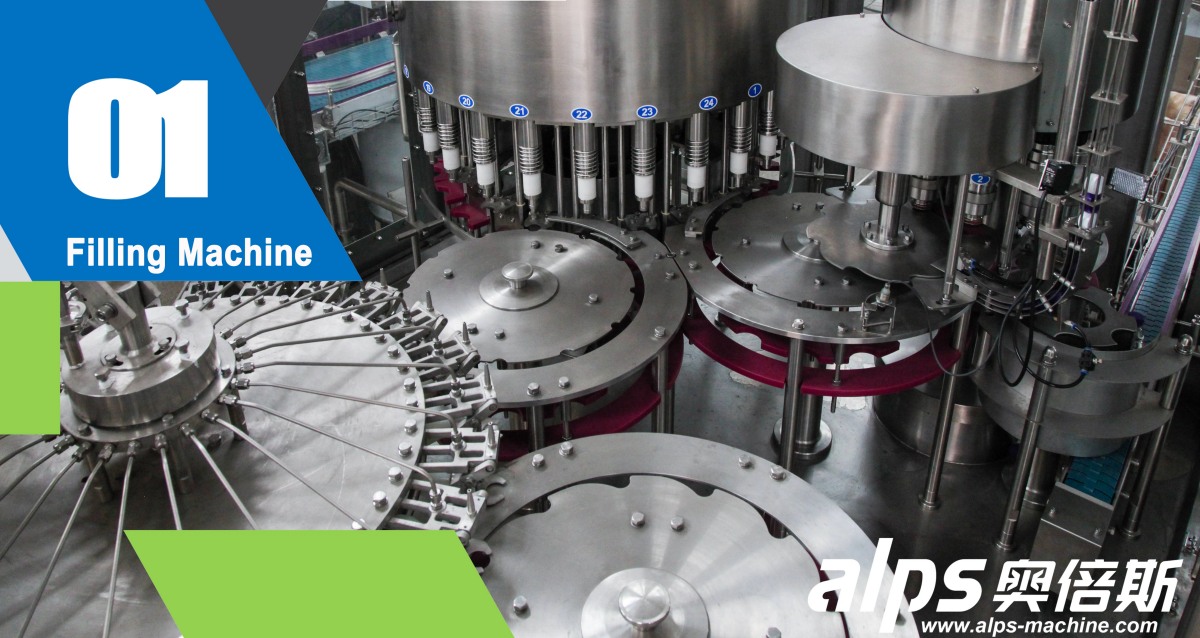

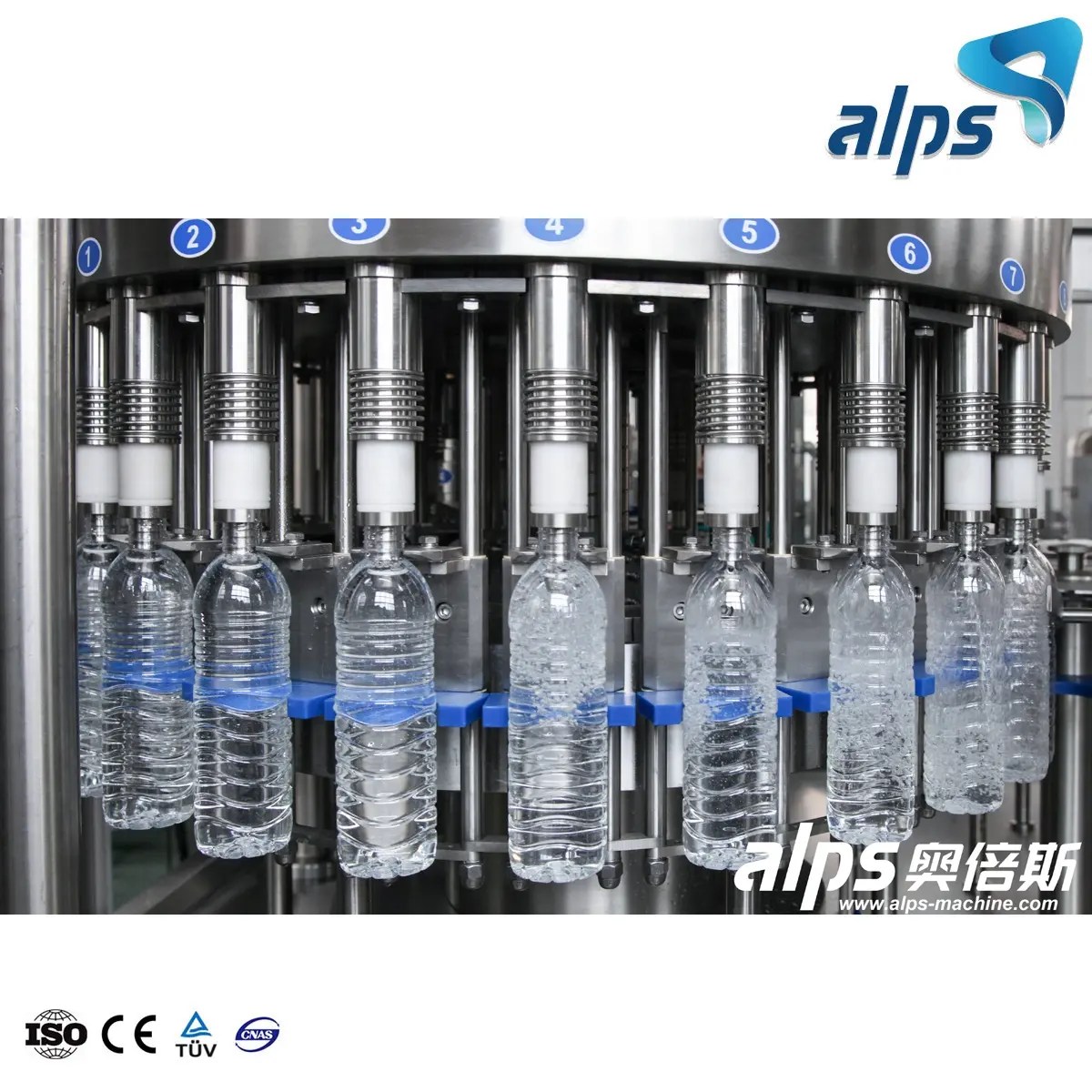

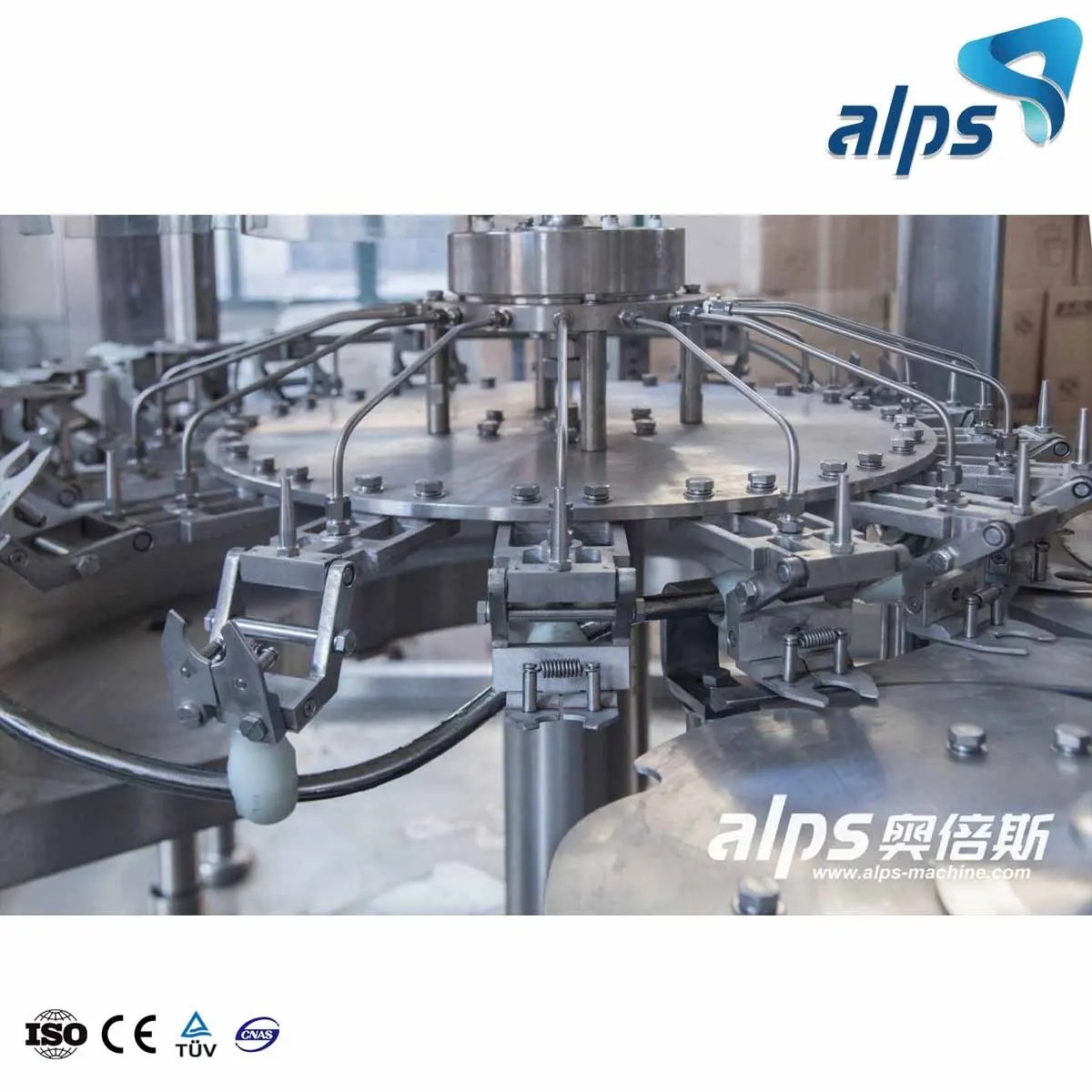

Automatic Water Washing, Filling, and Capping 3-in-1 Machine.jpg

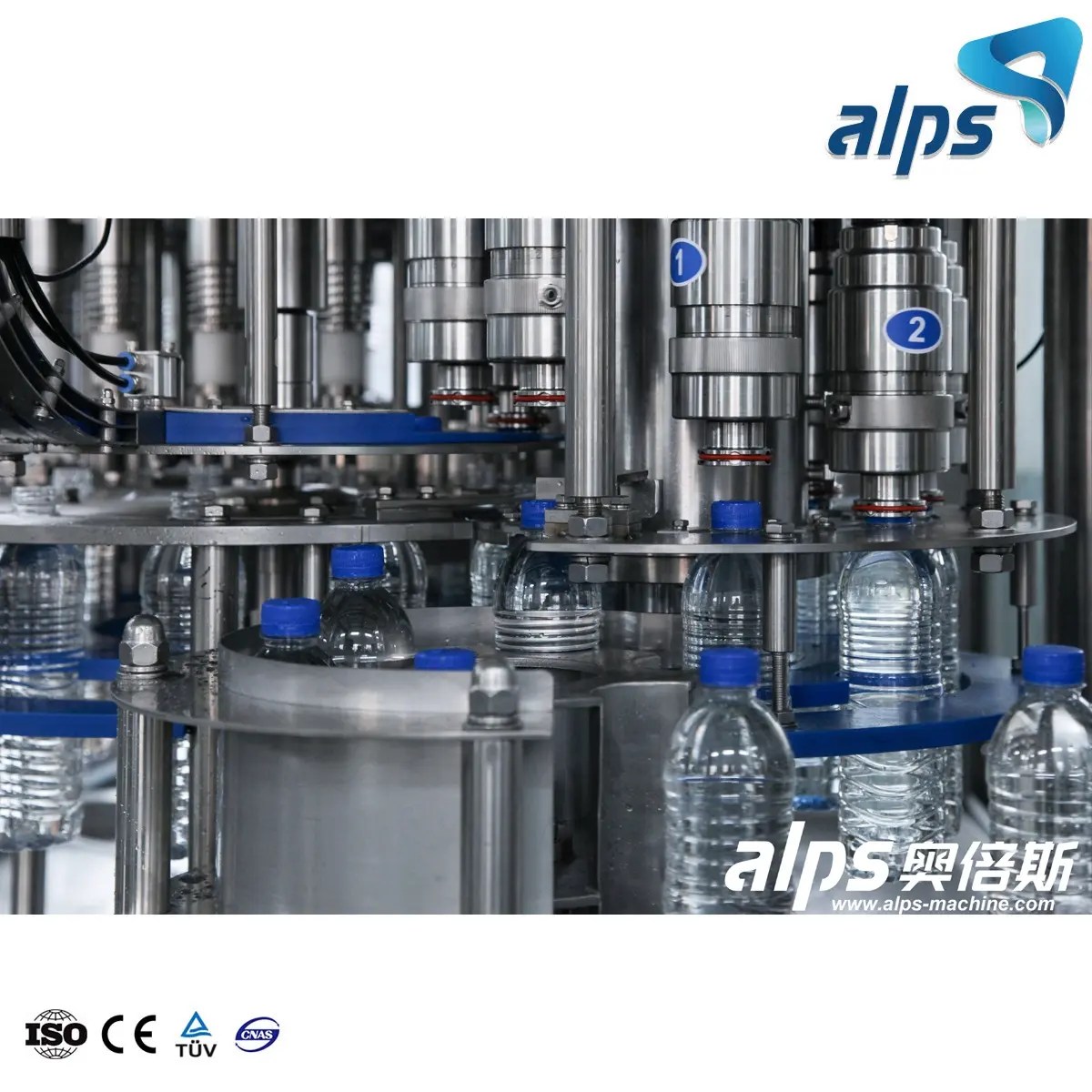

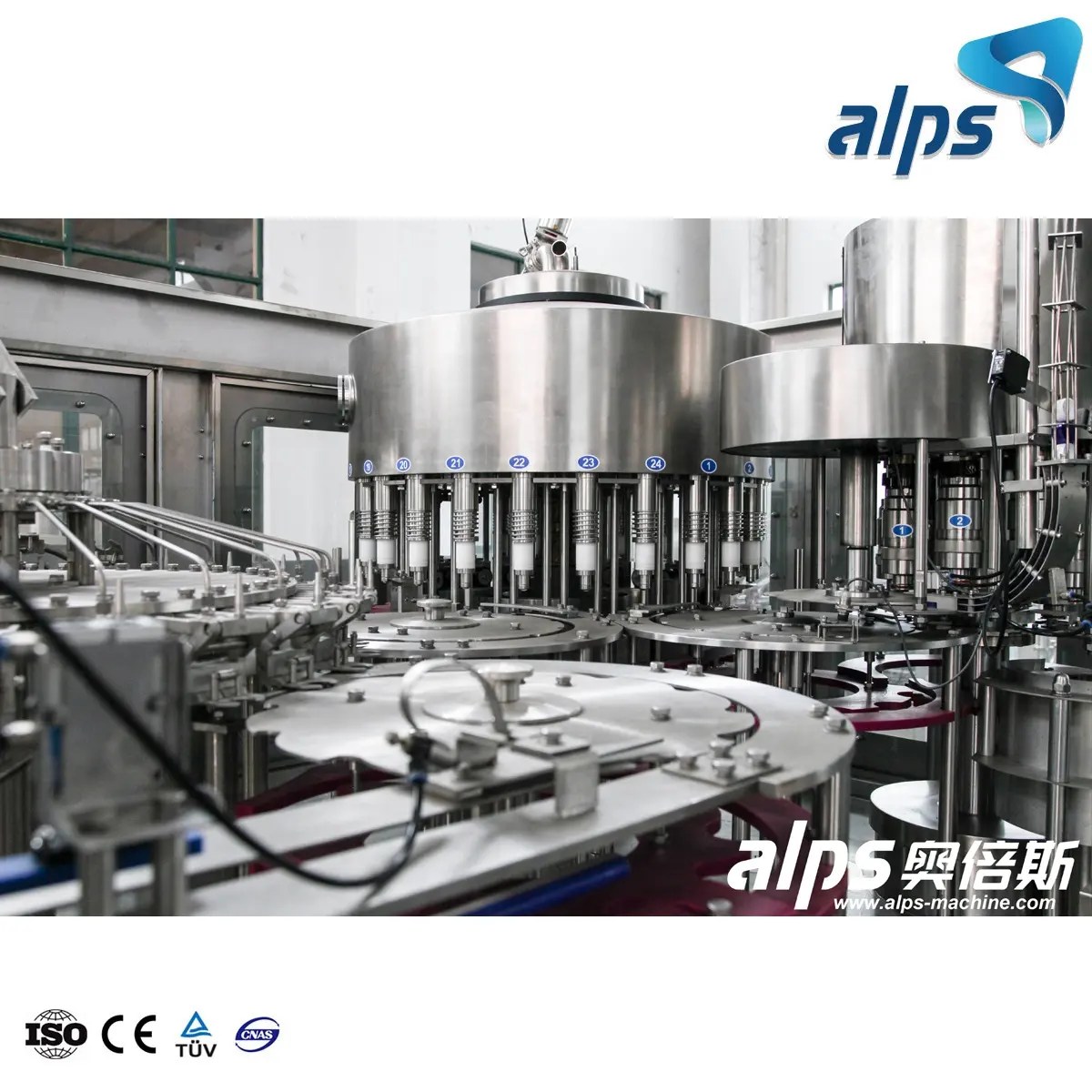

Automatic Water Washing, Filling, and Capping 3-in-1 Machine (Monoblock Type)

This machine is specially designed for the filling of pure water, mineral water, and other non-carbonated, sugar-free beverages in bottles. It integrates the processes of bottle washing, filling, and capping into a single, compact unit, ensuring efficient and high-speed production.


Water Treatment System.jpg

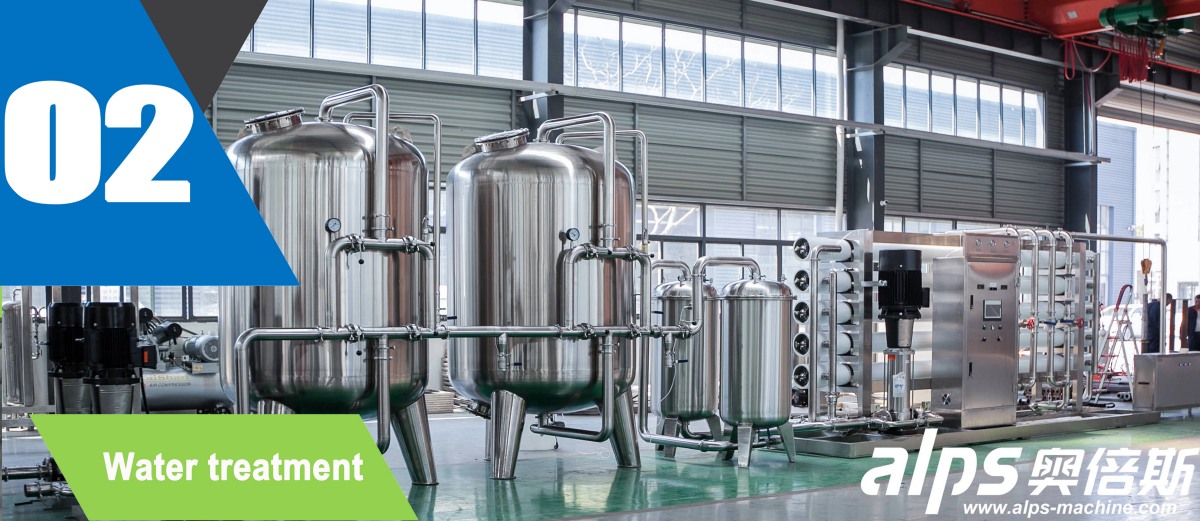

Water Treatment System

Based on the customer’s water source analysis and the required final water quality standards, we recommend an appropriate water treatment system. This helps optimize water treatment efficiency, reducing both material consumption and maintenance costs.


Labeling Machine.jpg

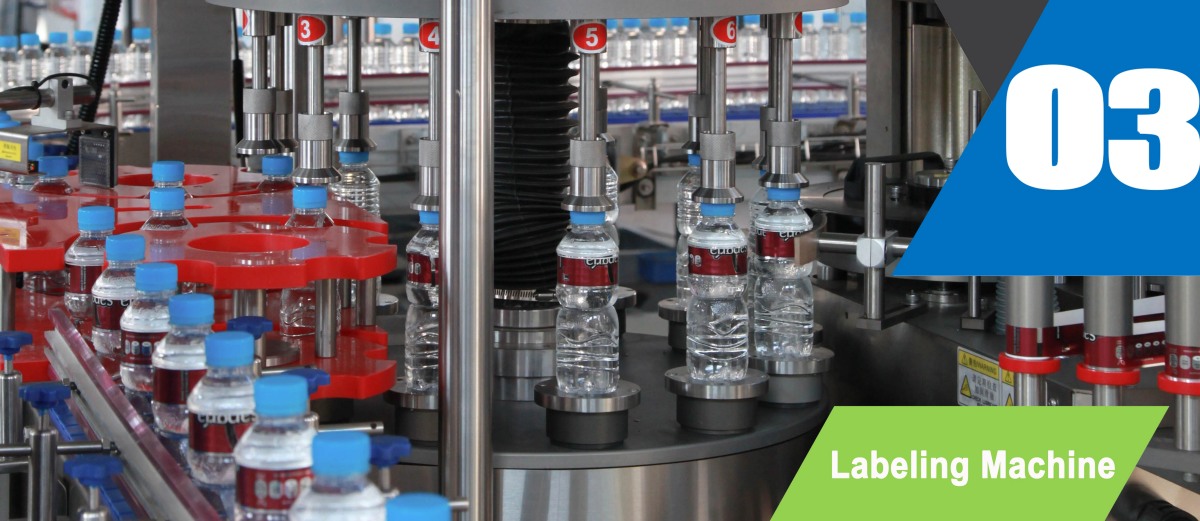

Labeling Machine

In response to customer requirements and market demand, we offer customized solutions for final product packaging design. Our labeling options include a variety of choices, such as PVC sleeve labels, BOPP hot glue labels, adhesive stick labels, and cold glue paper labels.


Bottle Packaging System.jpg

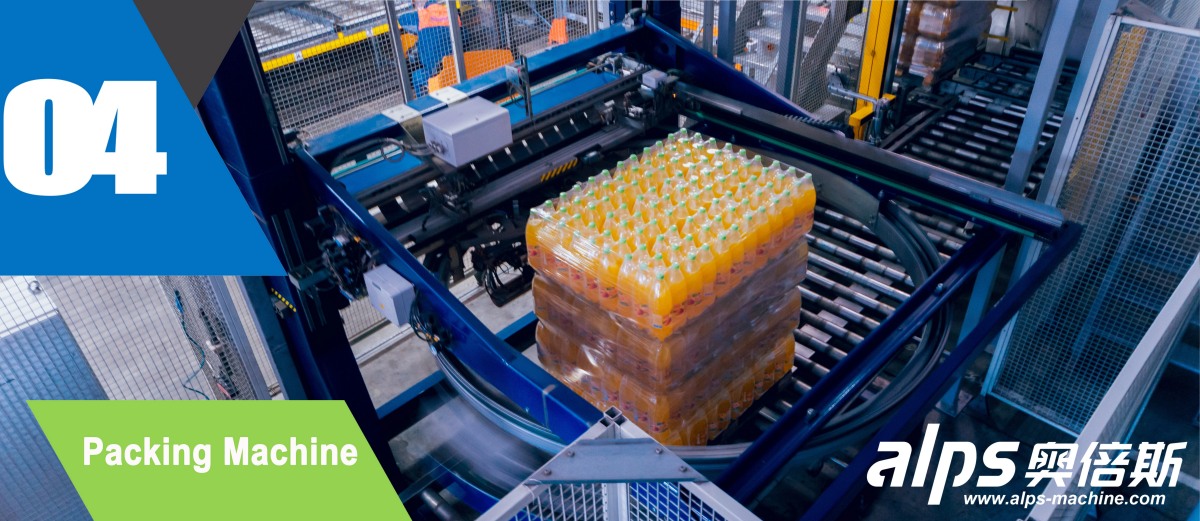

Bottle Packaging System

We provide various bottle packaging solutions, including film packaging, carton box wrappers, and film with tray packaging, tailored to meet diverse packaging needs and enhance the presentation and protection of the product.


Bottle Blowing System.jpg

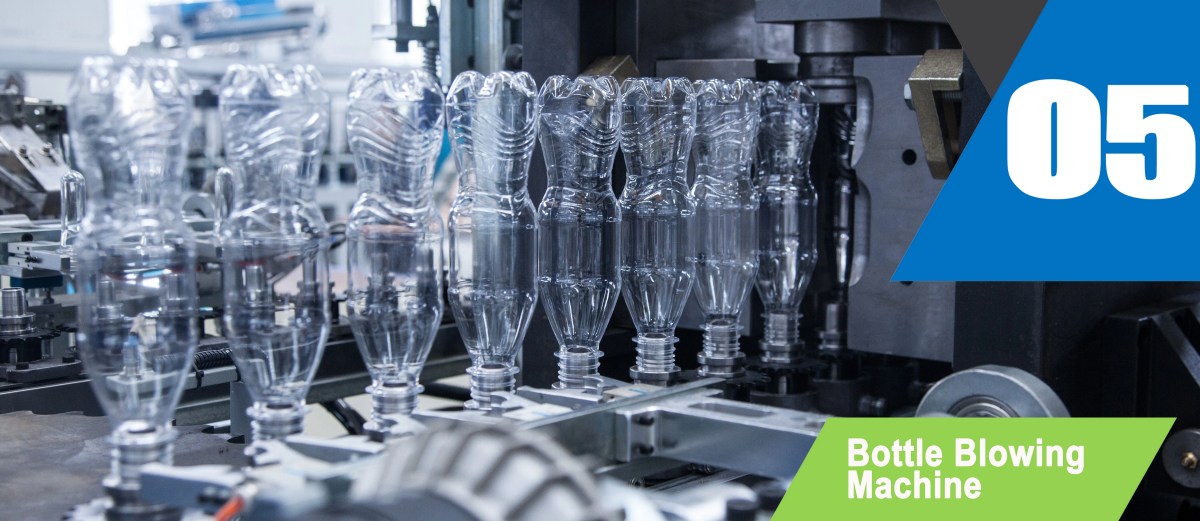

Bottle Blowing System

We offer a complete bottle blowing system, starting with PET preform injection molding machines and including bottle blowing machines. This system also includes air compressor and water cooling systems to ensure optimal performance and efficiency throughout the blowing process.




Cooperation Brand


Cooperation Brand.jpg

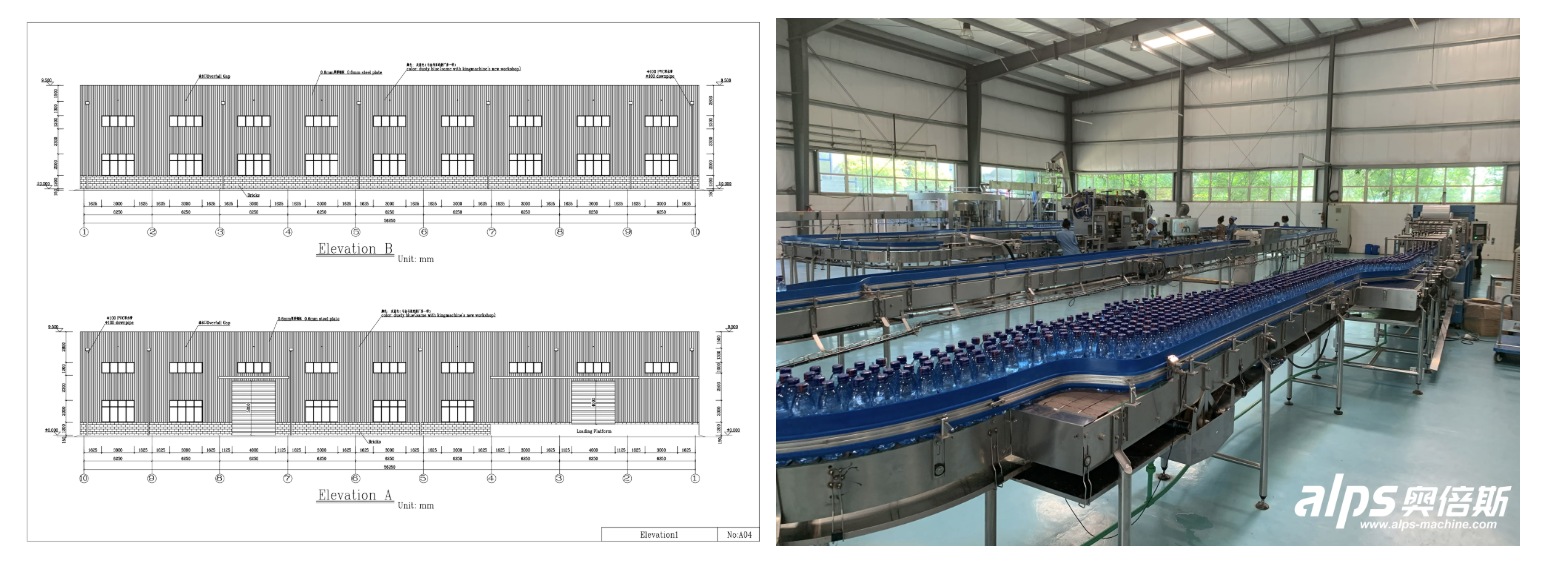

Turnkey Project

flow chart.jpg

Flow Chart -Complete Water Filling Line Project.jpg

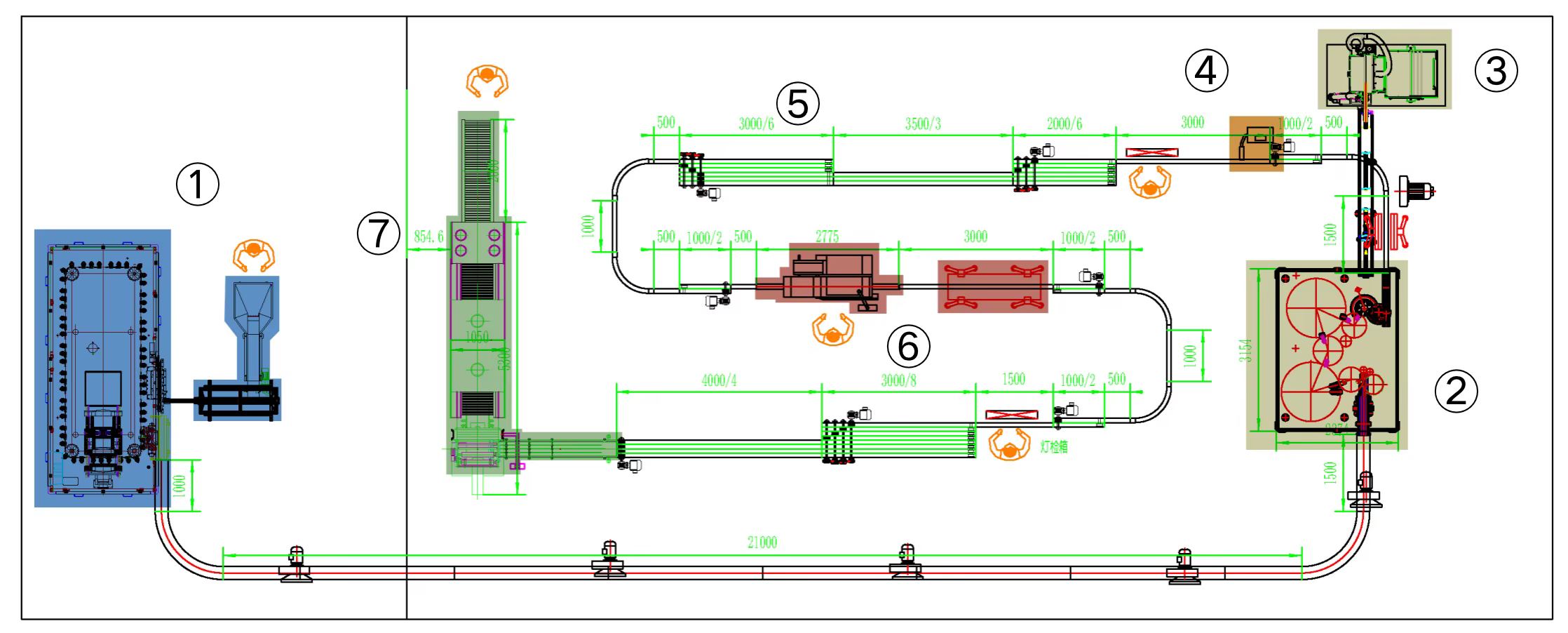

1.PET Bottle Blowing Machine ;  2.Washing Filling Capping Machine;  3.Cap elevator ; 4.Code sprayer ; 5.Conveyor System ;

6.Automatic labeling Machine ; 7. Auotmatic PE film shrink wrapping machine ;


flow chart 3.jpg
