24000BPH Mineral Water Blowing Filling Capping Combiblock Line 24000BPH Mineral Water Blowing Filling Capping Combiblock Line

Capacity: 24000 Bottle Per Hour
Bottle Sizes: 250ml ~2000ml
Function: Blowing Filling and Capping Machine

Quantity:
Share this:

Introduction

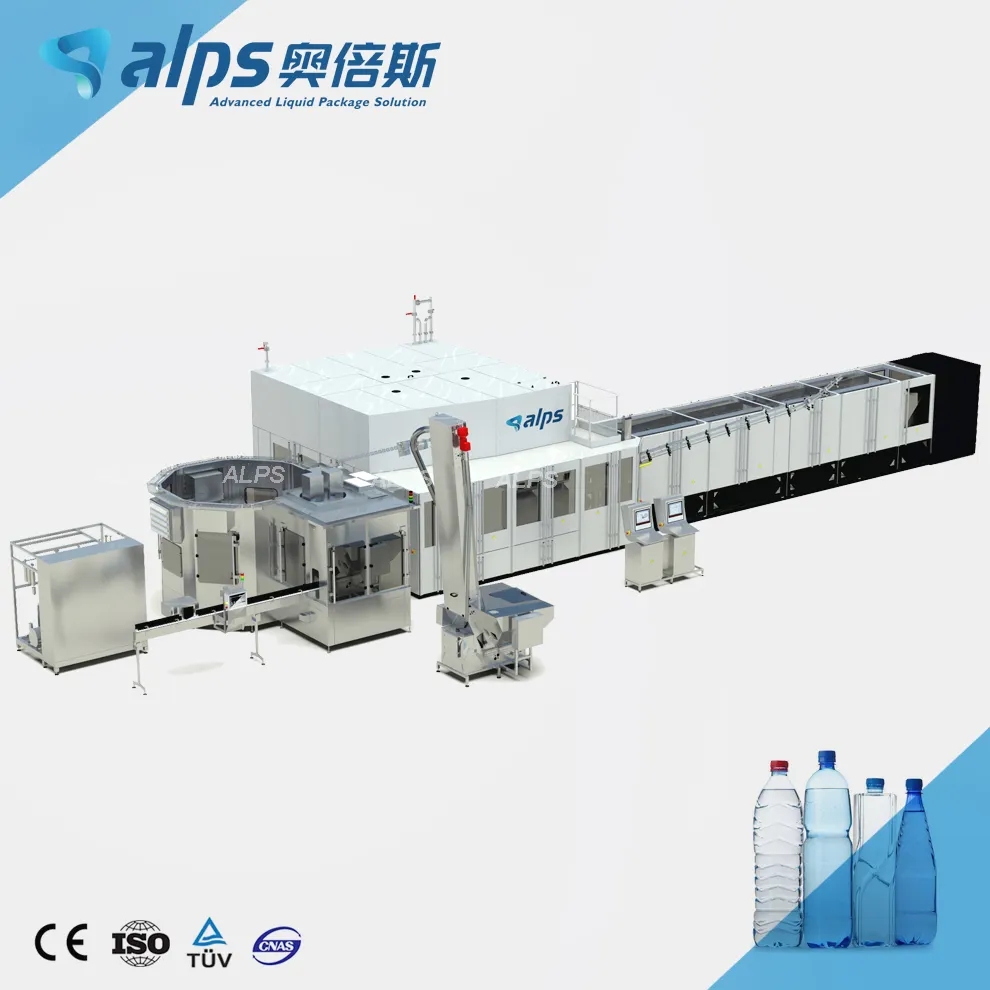

Full Automatic High Speed Pure Drinking Water Bottle Blowing Filling Capping Combiblock Water Filling Machine

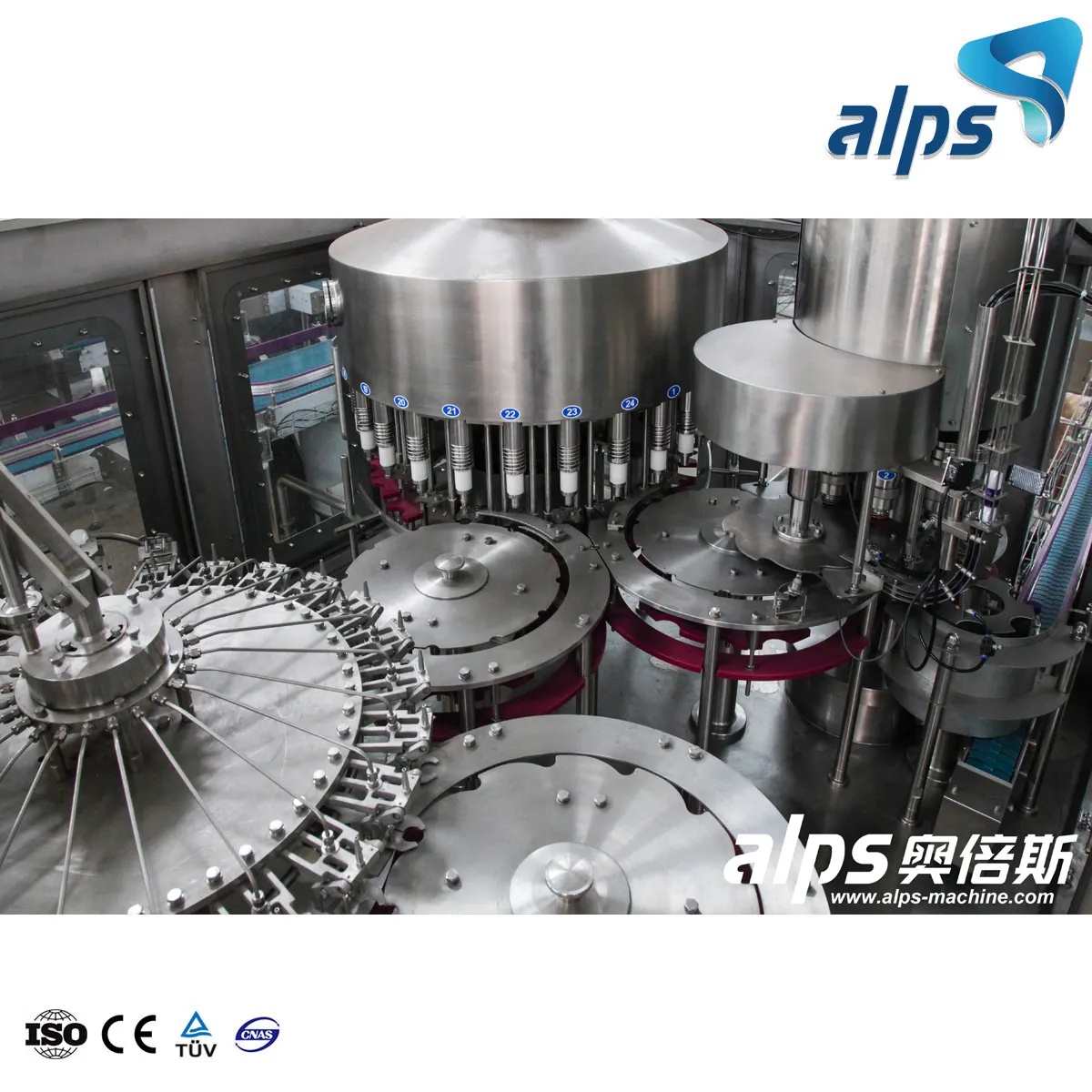

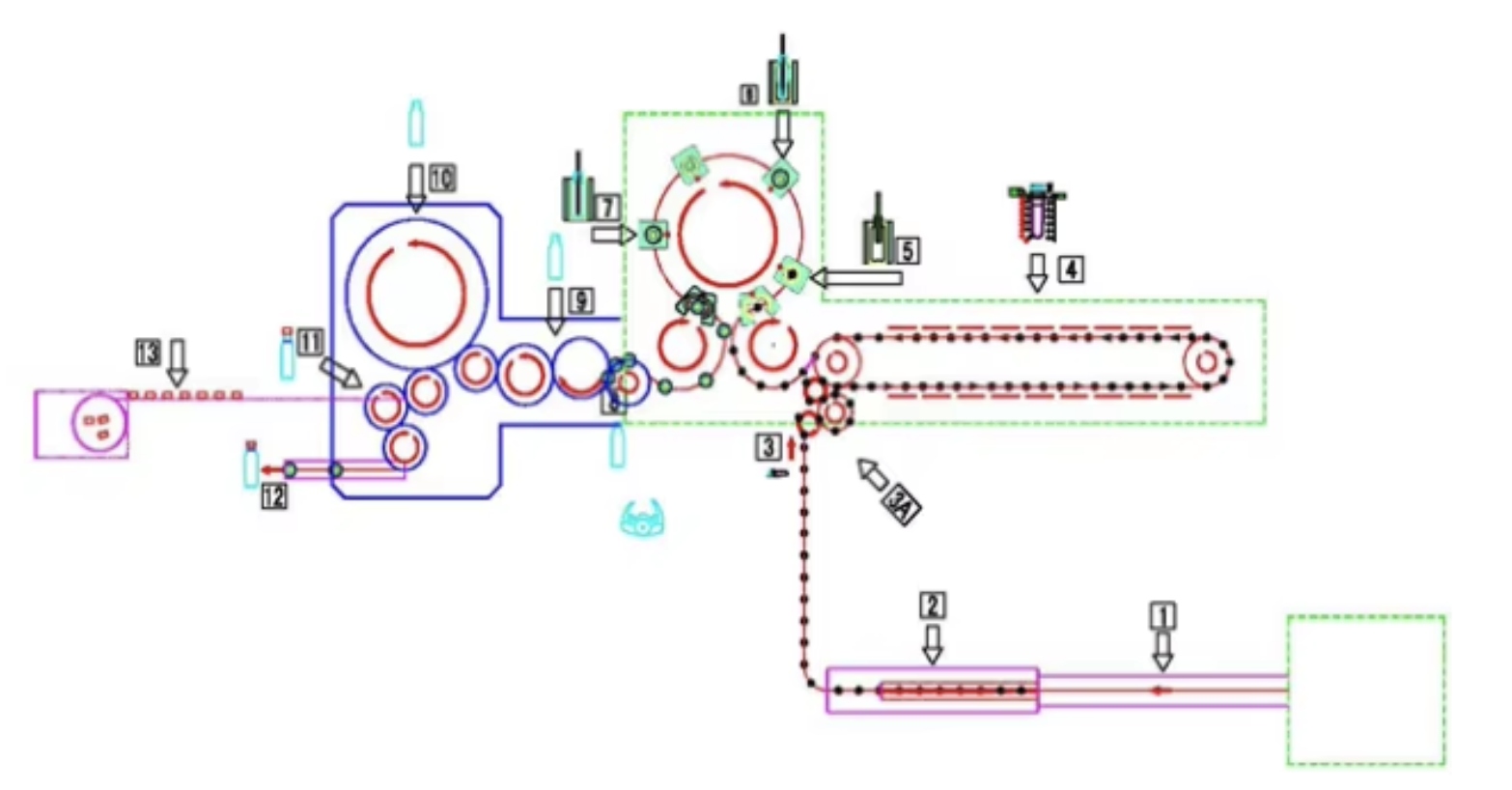

The combi block blowing, filling, and capping machine is based on the "blowing unit", "filling unit", and "capping unit". Through the comprehensive application of multiple disciplines such as light, machinery, electricity, and gas, the servo system is used for synchronous control to achieve integrated control and production of multiple unit equipment. This machine eliminates the equipment for empty bottle conveying and bottle washing on conventional beverage filling production lines, greatly saving the user's production line area, reducing the use of bottle flushing water and energy consumption of empty bottle conveying fans during operation, reducing a large number of intermediate transmission links, more reliably ensuring the cleanliness and hygiene of the entire equipment, and better helping users improve the production efficiency of the entire line, reduce investment costs, energy consumption, and equipment maintenance costs.

water filling combiblock.jpg


Application :

Function :Blowing / Filling / Capping System
Suitable for:  PET bottles with screw cap Bottle sizes : 250ml ~ 2L
Filling system:  Gravity fillingCapacity:  24000BPH
Application:  still water, pure water, RO water, mineral water, sparkling water, etc.


Technical Data

Name :  24000BPH Mineral Water Blowing Filling Capping Combiblock Line
Filling accuracy0.5%
Capacity: (for 500ml)24000 Bottles/hour
Suitable bottle shapesPET Circular or Square
Bottle diameter Dia50 ~ Dia115mm
Bottle height 150 ~320mm
Compressor air 0.3 ~0.7 Mpa
Washing medium Aseptic water
Rinsing pressure >0.06Mpa <0.2Mpa
Application Beer, Milk, Water, Oil, Juice
Total power7.2kw
Overall dimensions1.2*0.8*1.85m
Height 1.85m
Weight    5000kg


Details Description

blowing machine

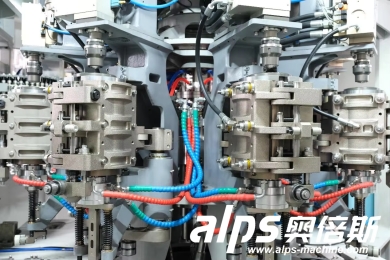

Blowing Process

>> The blowing process in the Fully Automatic Water Bottle Blowing, Filling, and Capping Combiblock Water Filling Machine begins with the heating of plastic preforms. These preforms are then placed into the mold where high-pressure air is used to expand them into the desired bottle shape. The precision of this process ensures uniform bottle quality and size, allowing for various shapes and sizes to be produced without compromising on production efficiency.

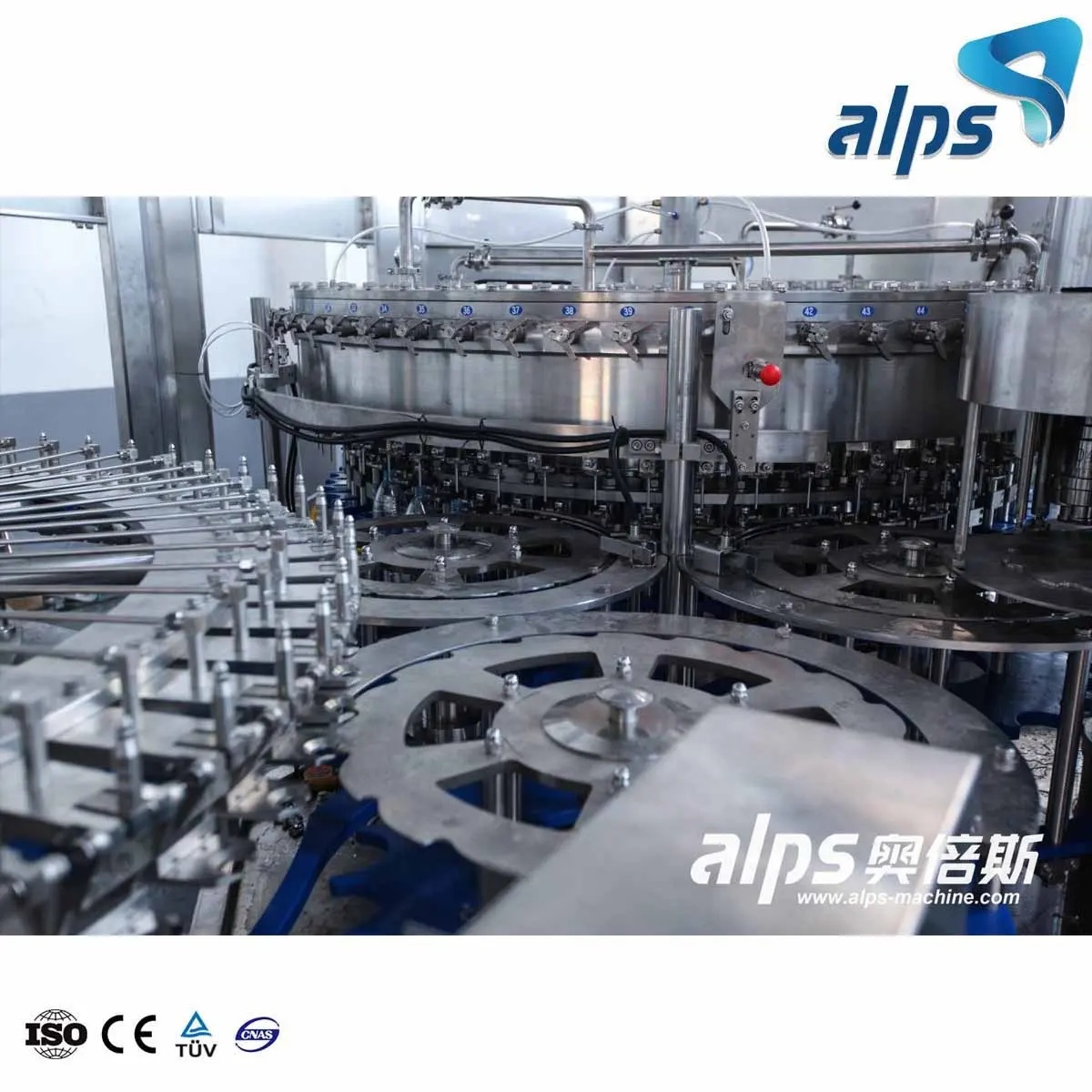

filling machine

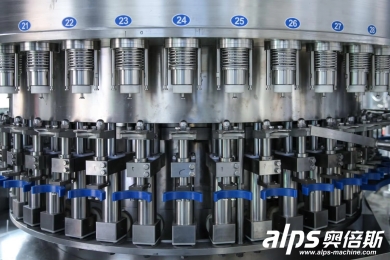

Filling Process

>>Following the blowing process, the filling process takes place. The machine accurately fills each bottle with water, ensuring precise volume control to meet industry standards. The filling system operates under strict hygienic conditions to prevent contamination, and its automatic nature reduces human error while optimizing the speed of filling, making it ideal for high-volume production.

capping machine

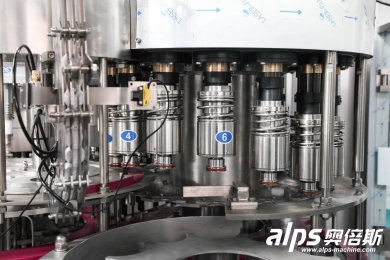

Capping Process

>>The final step is the capping process, where the machine automatically places and securely seals caps onto each filled bottle. This process ensures that each bottle is tightly sealed, preserving the integrity of the water and preventing leakage during transport. The capping system is adjustable to accommodate different cap sizes and types, providing flexibility for various packaging requirements.
