Full Automatic Single Roll Film Shrink Wrapping Machine

Full Automatic Single Roll Film Shrink Wrapping Machine

Machine information: This machine includes feeding bottle conveying, automatic separation, automatic packaging, testing wrapping film, shrinking machine, cooling and other institutions.
Packaging products: PET bottles
Output: ≤26 packets/min
Wrapping method: one piece type
Packing material: LDPE

Quantity:

Introduction

The integrated fully automatic heat shrink film packaging machine is a new type of packaging equipment designed and manufactured according to the characteristics of the packaging film in the heat shrink state. It is a high-efficiency, continuous operation packaging equipment. It can automatically arrange and assemble individual products (such as PET bottles) into groups, servo push bottles, servo wrap film, and finally form a collective package after heating, shrinking, and cooling. The packaged products are firmly tied, neatly, and beautifully, saving packaging costs.

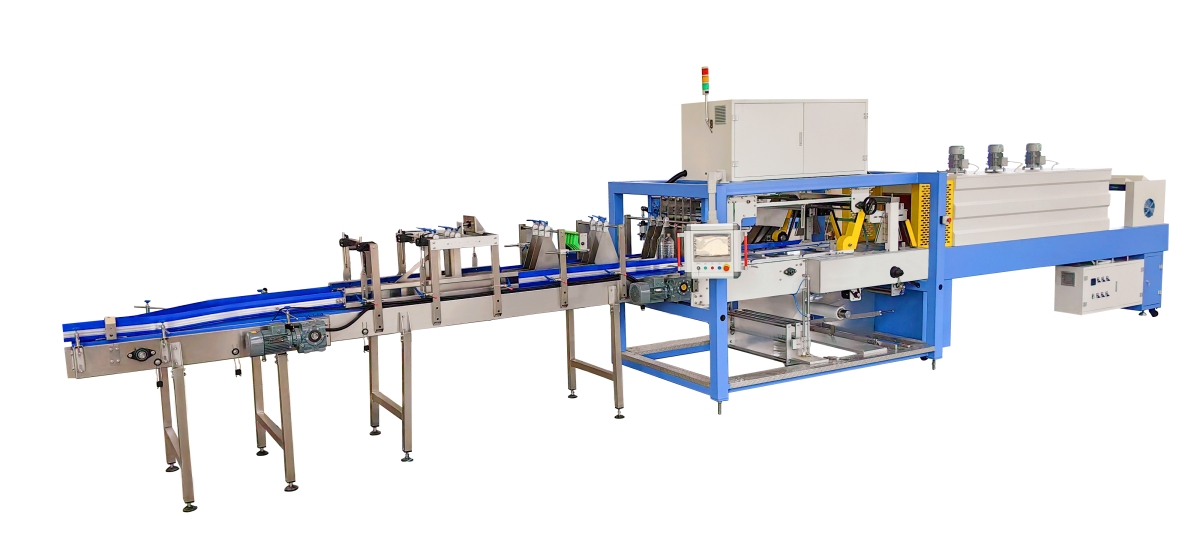

Full Automatic Single Roll Film Shrink Wrapping Machine.jpg

The APS fully automatic single roll film trayless shrink packaging machine is suitable for the packaging of cans, mineral water, beer, beverages and other products without bottom trays. It is used in conjunction with the PE film shrink tunnel to perfectly package the items. The entire production process adopts German advanced technology, and the main components are imported from internationally renowned companies, with stable production capacity and long service life. Through the cooperation of seven executive motors, products wrapped in plastic film are formed, and several bottles come out of the heat shrink packaging machine in a group.

Application :

Function :Automatic shrink packing machine
Suitable for: Bottle, Can, etc		Bottle Diameter : 28~ 125mm
Package Materail: PE film / POF film		Max Capacity: 8-40 bags/min
Application: Beverage Bottle / Water Bottle / PET can / Pop can / Plastic cup / Bottle cap

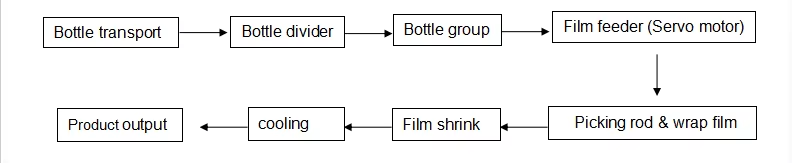

Process flow :

Bottle transport - Bottle divider - Bottle group - Film feeder (Servo motor) - Picking rod & wrap film - Film shrink - cooling - Product output

Technical Data

Technical Parameter	Specification
Package Combination	3×4 / 4×6 (customizable)
Packing Speed	< 26 bags/min (standard bottle type)
Applicable Container Shape	Round container
Power Requirements	45kW / 380V (three-phase five-wire)
Working Pressure	0.6 ~ 0.8MPa
Air Consumption	100-120NL/min
Contraction Chamber Dimensions	1800×650×425mm (L×W×H)
Machine Dimensions	13000×1560×2350mm (incl. conveyor)
Shrinkage Temperature	200℃ ~ 280℃
Packing Material	PE film
Film Specifications:	Roll Width: ≤600mm Thickness: 0.06 ~ 0.12mm Max Roll Diameter: ≤450mm
Working Noise	≤65dB
Total Weight	2500kg
Conveyor Belt:	Max Width: 610mm Standard Height: 1050mm
