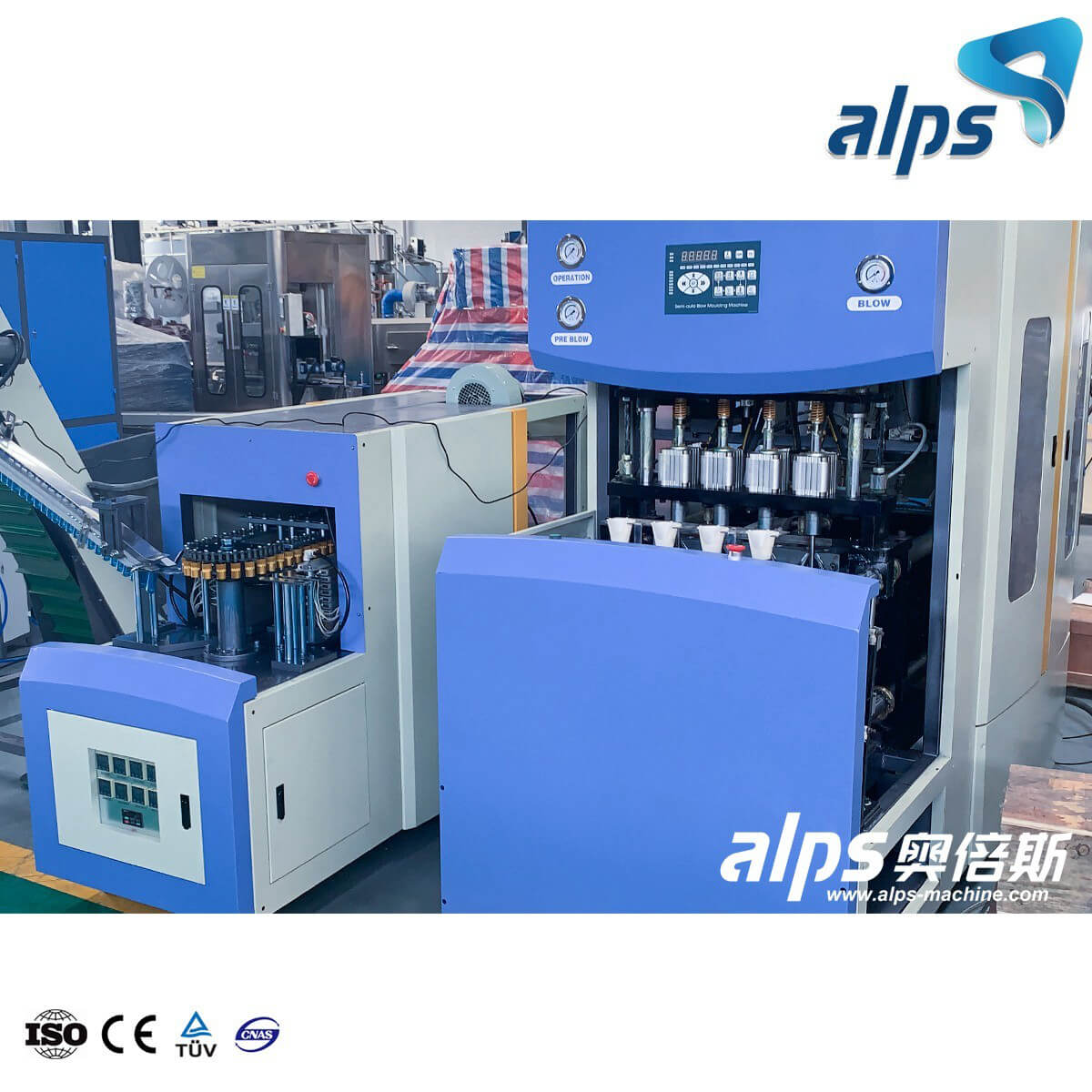

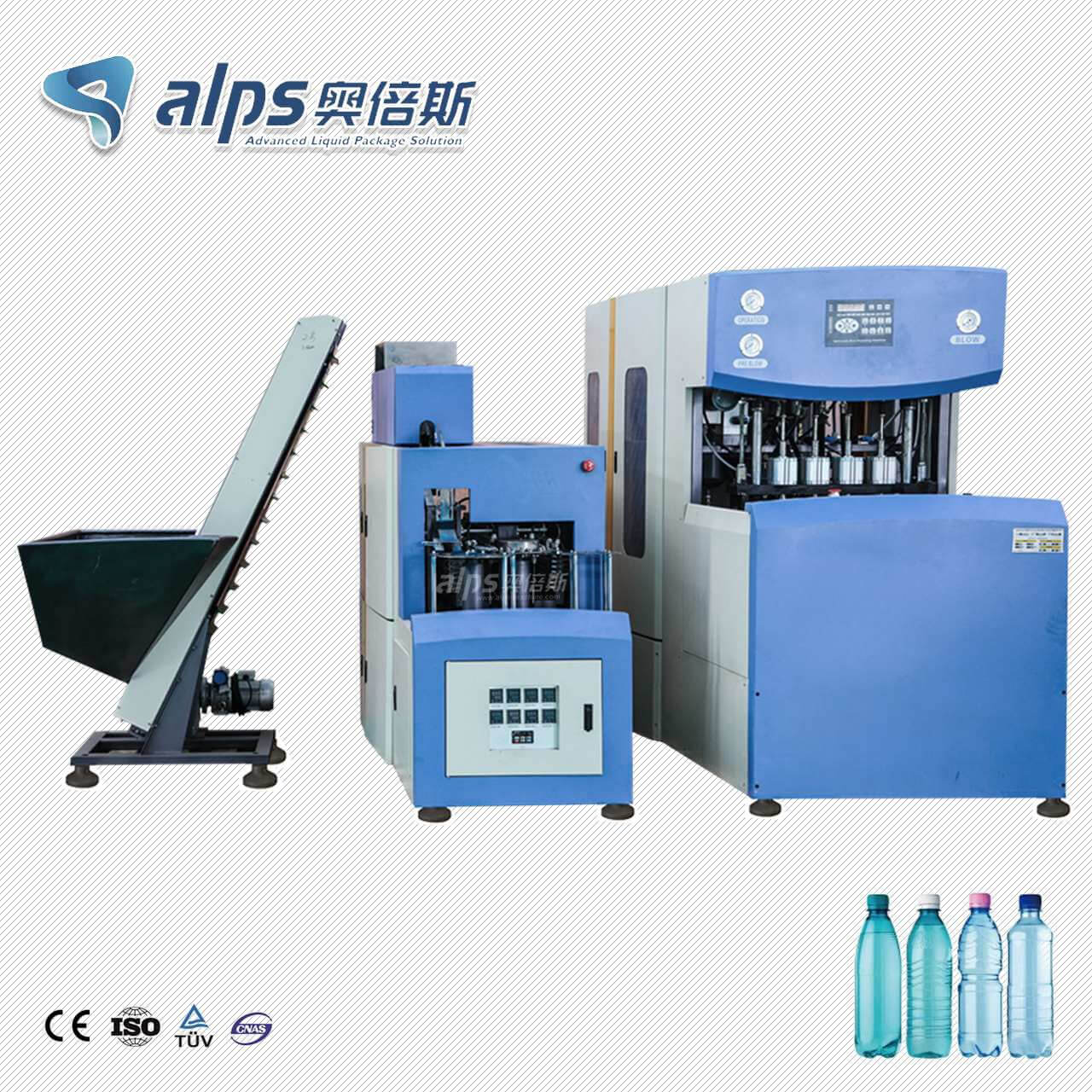

Semi Automatic 4 Cavities PET Bottle Blow Moulding Machine (SA04B) Semi Automatic 4 Cavities PET Bottle Blow Moulding Machine (SA04B)

Capacity : 1ton ~10 ton / hour Function :Reverse Osmosis Application :Pure water / mineral water / drinking water

Quantity:
Share this:

Introduction

Semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.1L to 20L. It is widely used to produce the mineral water bottle,carbonated drink bottle,Juice bottle, pesticide bottle ,oil bottle,daily chemical bottle, cosmetics bottle,wide-mouth Jar ,PET can etc.


Application :

Function :PET Bottle Blowing Machine
Automatic Type :  Semi AutomaticCapacity:  2000 ~2200 pcs per hour
Application:  Drinking water / Pure water / Mineral Water / Spring water


Technical Data

Name :Semi Automatic Bottle Blowing Machine
Model SA04B
Capacity: (500ML)2000 -2200 Bottles/hour
Remarksone preform elevator +one oven +one blower
Suitable bottle Sizes200ml ~2.5L
Total power35KW
Max bottle height <350mm
Max bottle diameter<120mm
High pressure air consumption2.4m3/min 30kg
Water chiller 3hp
Height 2m
Weight   1500kg


Cooperation Brand

Turnkey Project

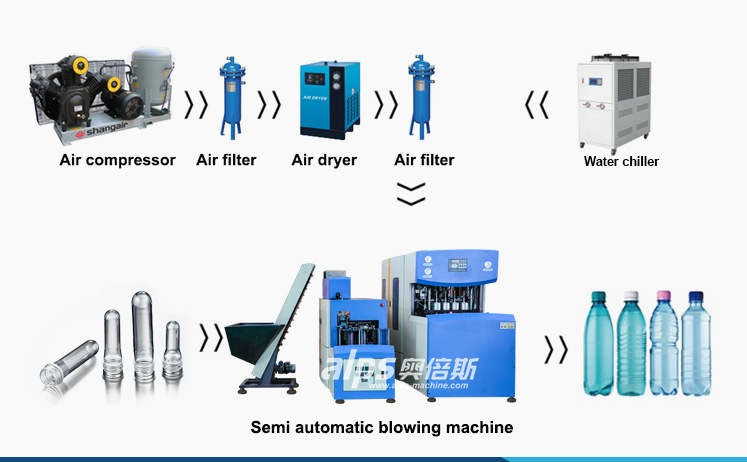

Automatic PET Bottle Blow Moulding Line
