Automatic Linear Type PET Bottle Blowing Machine (FBM06) Automatic Linear Type PET Bottle Blowing Machine (FBM06)

Capacity : 1ton ~10 ton / hour Function :Reverse Osmosis Application :Pure water / mineral water / drinking water

Share this:


The two-step Pet stretch blow moulding machine which are applicable in a wide range of PET packaging practice, such as for beverages, edible oil, food, pharmaceutical products and cosmetics,etc. With more than 10 years experience in developing and producing pet blow molding machine as well as the advanced technology absorbed domestic and abroad, we have developed with our constant innovation dozens of high speed and high precision equipments which have won the top reputation in the filed.

Application :

Function :Automatic Bottle Blowing Machine
Bottle Sizes:  50ml ~2LCapacity:  2000 ~8000 Bottles Per hour
Application:  Water bottle / Beverage bottle / Juice Bottle / Oil Bottle / Cosmetic bottle

Technical Data

Name :  Automatic Bottle Blowing Machine
Cavities quantity         6cavities                6cavities               8cavites
Max Voulume: 750ml (A) / 2000ml(B)750ml(A) / 2000ml(B)750ml (A)/ 2000ml(B)
Output capacity  (500ml)4000~4500bph 6000~6500bph8000~8500bph

Max. container diameter


Neck Diameter Range

Φ30mm~ Φ40mm

Max. preform height


Application PET stretch blowing
Total power50kw75kw85kw
Overall dimensions4.2X3.2m5.6X3.5m6.5X3.6m
Height 2.6m2.6m2.6m
Weight     7000kg

Details Description

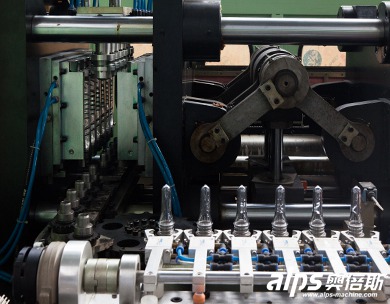

Mould Clamping System

Mould Clamping System

>>Single cylinder clamps and locks the mould in a very short time, which avoids a very obvious parting line caused by mechanical clamping method.

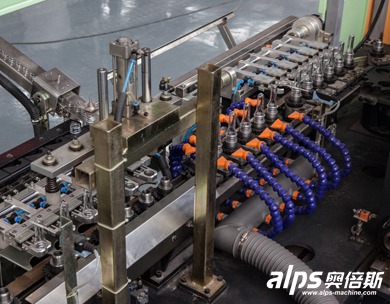

Filling Part

Filling part

>>All the preform loading and bottle fetching and outputting movements are finished by mechanical transfer arms, which avoid contamination.

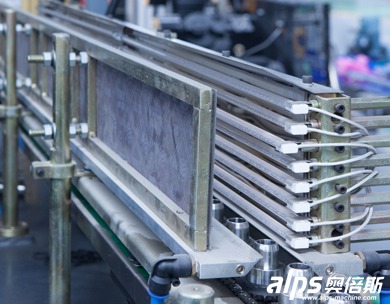

Preform Heating Part

Preform Heating Part

>>Stale infrared ray heating system has 4 heating zone, each of them are controlled saperately

Cooperation Brand

Turnkey Project

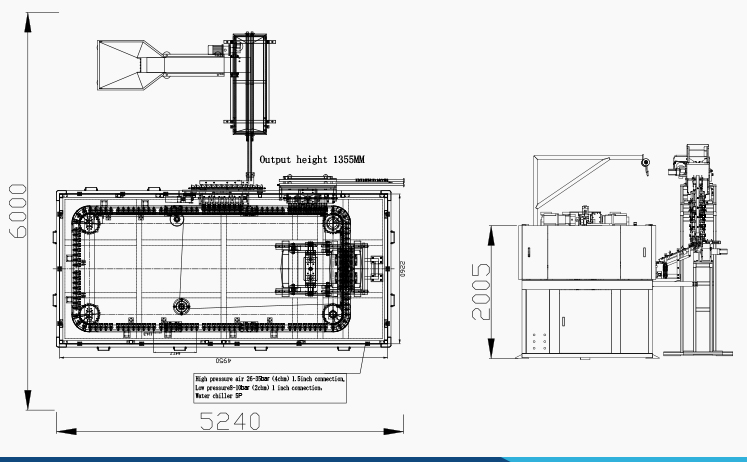

Automatic Linear Type PET Bottle Blowing Line
