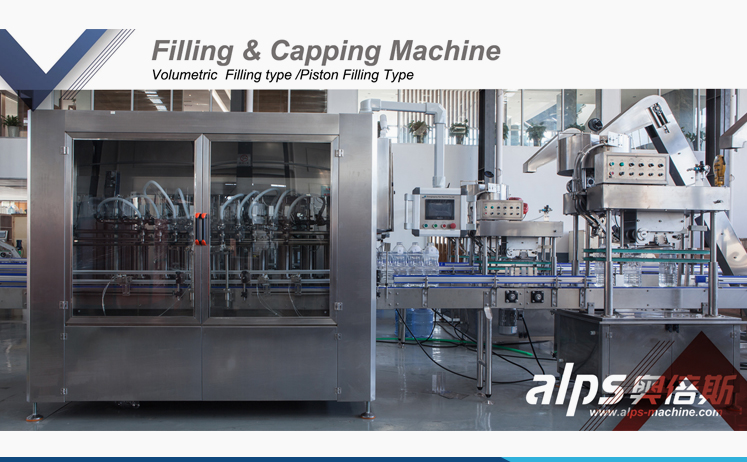

Automatic Edible Oil Filling & Capping Machine (SNYG-8) Automatic Edible Oil Filling & Capping Machine (SNYG-8)

Capacity : 2000~83000 liters per hour Container Sizes : 500ml ~ 5L Function : Oil filling

Quantity:
Share this:

Introduction

The automatic edible oil filling machine and filling and capping machine are high-tech product designed and developed by our company. It suits for different viscosity of water agent, semi-fluid and paste, it is widely used in the  product filling  of  foodstuff, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry. Using the straight filling way, may be used in the different vessels, needn’t add any parts.


Application :

Function :Filling machine (Volumetric type)
Suitable for:  Plastic bottle /Glass bottleBottle sizes : 500ml to 5L
Filling system:  Volumetric filling typeCapacity:  2000 ~3000LPH
Application:  Cooking Oil / Motor oil / Detergent / cleaning liquid / shampoo


Technical Data

Name :  Automatic Liquid Filling Machine (Volumetric type)
Model SNYG-4SNYG-6SNYG-8SNYG-10SNYG-12SNYG-16
Capacity: (1L)1000bph1500bph2000bph2500bph3000bph4000bph
Filling heads  4heads6heads8heads10heads12heads16heads
Max bottle sizes5L5L5L3L3L2L
Filling Precision+/- 0.5%
Working power220VAC
Air pressure 6~7 kg/cm2
Air consumption1m3/min
Total power3.2kw3.5kw4.2kw5.2kw6kw7.5kw
Height 2.3m
Weight    1500kg
1750kg1900kg2200kg2500kg2800kg


Details Description

Filling Valve part

Filling Valve part

1)Used for viscous material
2)Fast speed filling ,precision and stability
3)With anti foam function by diving system
4)Filling valve with airtac cylinder to prove anti leakage fucntion

Volumetric filling Pistion

Volumetric filling Pistion

1)Fast speed filling ,precision and stability
2)By servo motor drive
3)Material :SUS316L
4)Different filling volume 1L / 2L / 3L / 5L
5)Easy different volume setting
