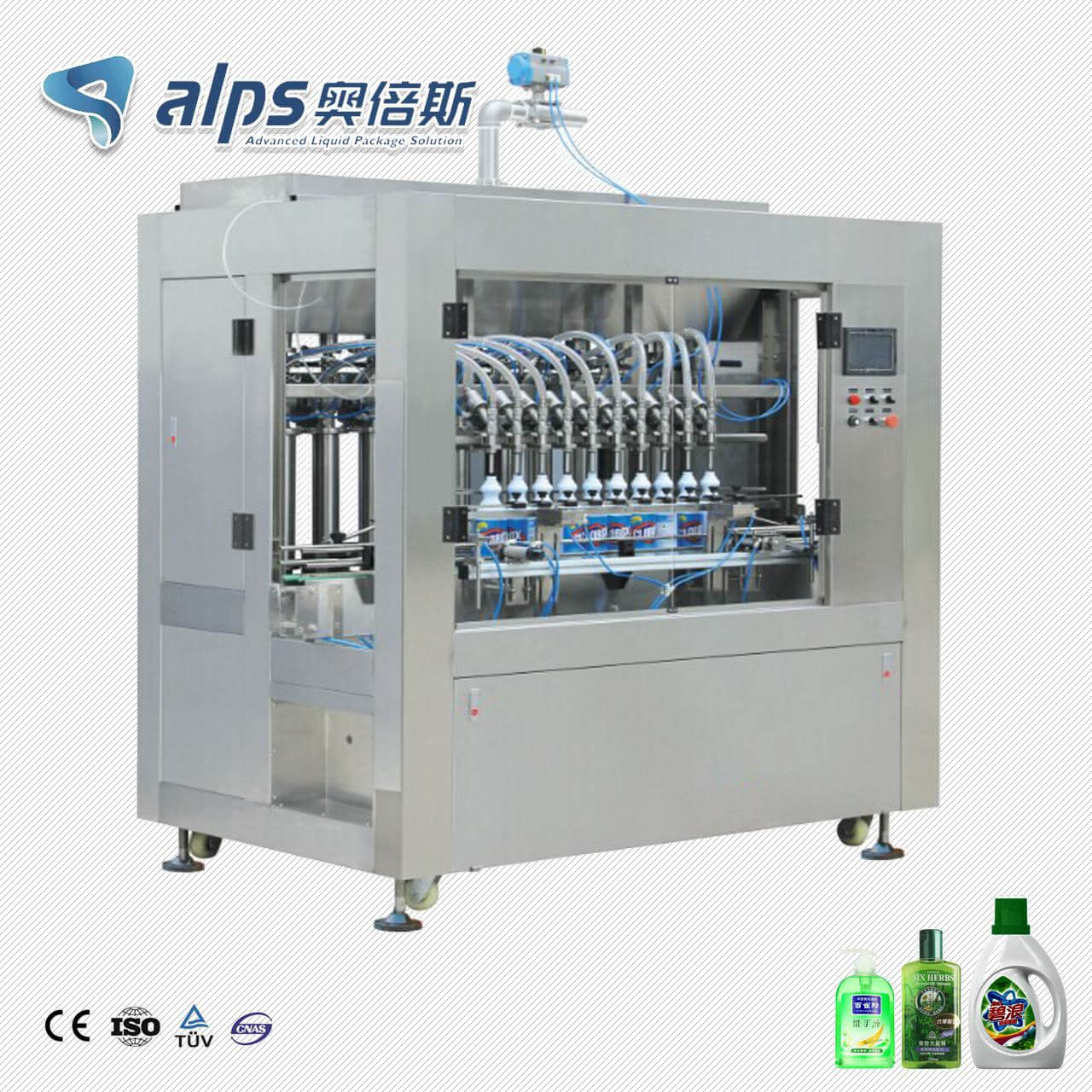

Automatic Daily Chemical Detergent Shampoo Filling Machine (SNYG-10) Automatic Daily Chemical Detergent Shampoo Filling Machine (SNYG-10)

Capacity: 1000-5000 liters per hour Bottle Sizes: 100ml to 2L Function: Filling

Quantity:
Share this:

Introduction

The Bottle Liquid Filling Machine is a high-tech product designed and developed by our company. It suits for different viscosity of water agent, semi-fluid and paste, it is widely used in the product filling of foodstuff, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry .


Application :

Function :Filling Machine
Suitable for:  Plastic Bottle / Glass bottleBottle sizes : 1000ml ~ 2L
Filling system:  Volumetric filling / Piston fillingCapacity:  1000 ~5000LPH
Application:  Cleaning liquid / Shampoo / Detergent / Tomato sauce / Honey/Vegetable oil


Technical Data

Name :  Automatic Liquid Filling Machine (Volumetric type)
Model LPH04LPH06LPH08LPH10LPH12LPH16
Capacity: (1L)800bph1200bph1800bph2300bph3000bph4000bph
Filling heads  4heads6heads8heads10heads12heads16heads
Max bottle sizes5L5L5L3L3L2L
Filling Precision+/- 0.5%
Working power220VAC
Air pressure 6~7 kg/cm2
Air consumption1m3/min
Total power3.2kw3.5kw4.2kw5.2kw6kw7.5kw
Height 2.3m
Weight    1500kg
1750kg1900kg2200kg2500kg2800kg


Details Description

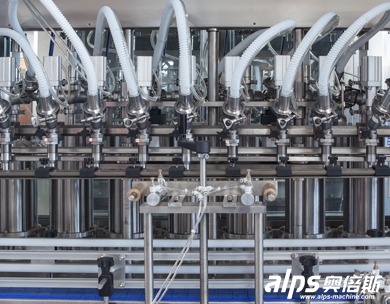

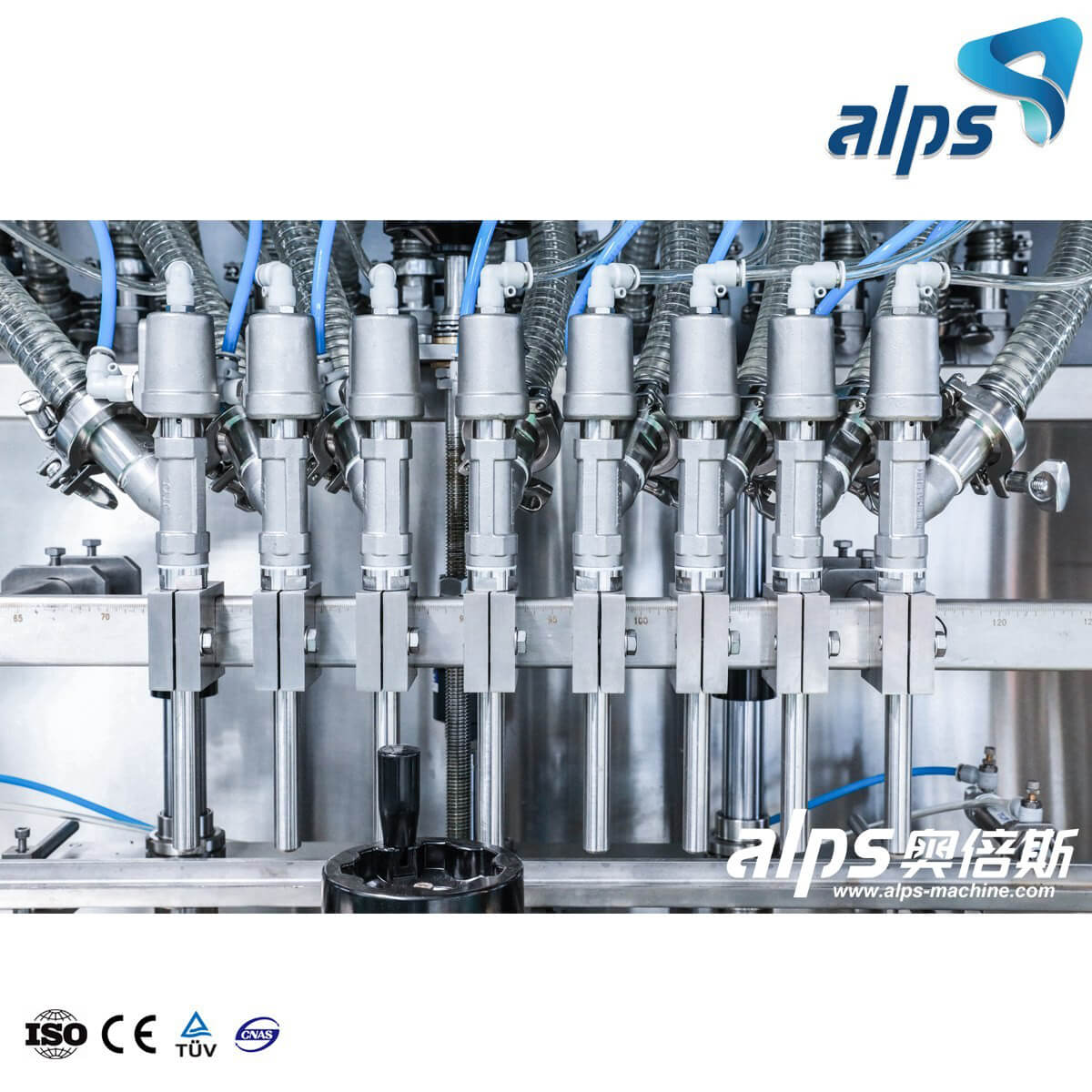

Filling Valve part

Filling Valve part

1)Used for viscous material
2)Fast speed filling ,precision and stability
3)With anti foam function by diving system
4)Filling valve with airtac cylinder to prove anti leakage fucntion

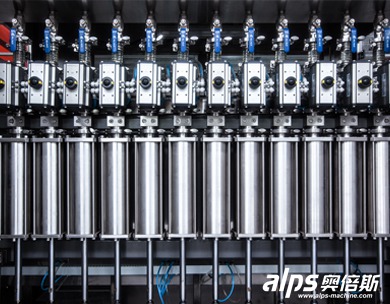

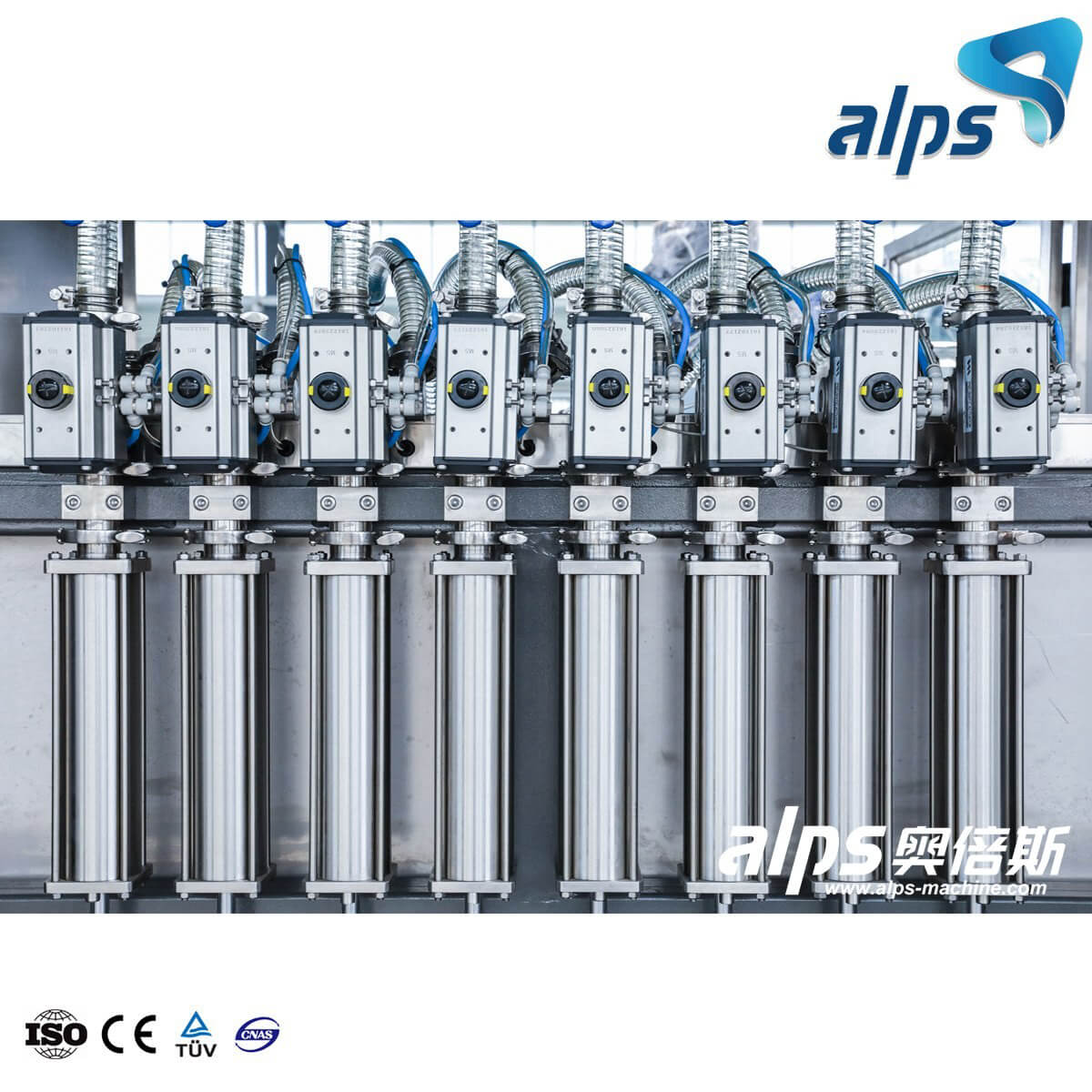

Volumetric filling Pistion

Volumetric filling Pistion

1)Fast speed filling ,precision and stability
2)By servo motor drive
3)Material :SUS316L
4)Different filling volume 1L / 2L / 3L / 5L
5)Easy different volume setting

Cooperation Brand

Turnkey Project

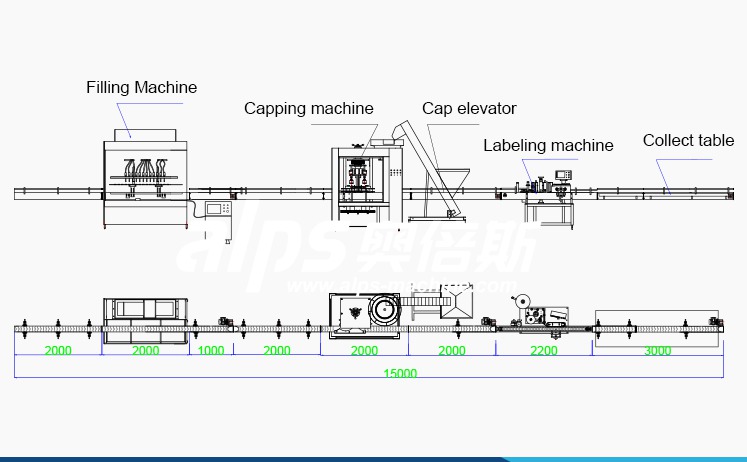

Automatic Bottled Daily Chemaicl Shampoo Filling & Packing Line
Filling System
Labeling System
Packing System
Label Material
Bottle Blowing System
