Automatic Beverage Bottle PVC Label Shrink Labeling Machine (Model:SLM250) Automatic Beverage Bottle PVC Label Shrink Labeling Machine (Model:SLM250)

Max Capacity : 15000 Bottles Per Hour Bottle Sizes : 100ml ~2L Function :Labeling machine

Quantity:
Share this:

Introduction

This automatic beverage bottle pvc label shrink labeling machine adopts international advanced technology; cover the circle label on the PET bottle / Glass bottle, and then hot shrinking to fix on the position which bottle body designed.

This machine's structure is compact, and suitable for the production line of different direction and different height, the machine parts adopts combination designing of modularization, and makes the machine reasonable, the height adjustment adopts motor fluuctuating, it is convenient to replace the material, the special cutter head designing, make the film-rolling cut more exactly and reliably.


Application :

Function :Automatic sleeve shrink labeling machine
Suitable for:  PET bottle/Glass bottle / Plastic cupBottle Diameter : 28~ 125mm
Label Materail:  PVC label / PET label / OPS labelMax Capacity:  15000BPH
Application:  Beverage Bottle / Water Bottle  / PET can / Pop can / Plastic cup / Bottle cap

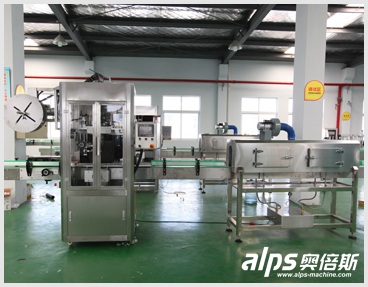

Automatic Beverage Bottle PVC Label Shrink Labeling Machine
Automatic Beverage Bottle PVC Label Shrink Labeling Machine

Technical Data

Name :  Automatic sleeve labeling machine
Model SLM250
Max Capacity: 15000 Bottles/hour
Label size                               Dia 30-125mm
Bottle diameter Dia 28-125mm
Label sleeve length                                    30-250mm
Label thickness0.035mm
Label material PVC / PET
Electrical power3.0kw
Overall dimensions3.4X2.0m
Weight 1000kg


Details Description

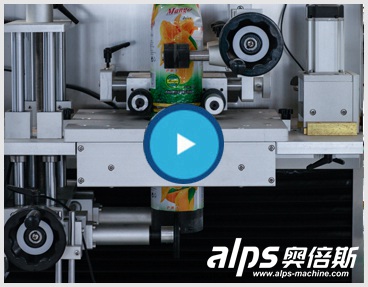

Label Sleeve Main Machine part

Label Sleeve Main Machine part

>>The machine is made of stainless steel and high quality of aluminum alloy, the reasonable, intact frame, it is easy to adjust.

>>The applicable bottle is the machine square bottle and round bottle

>>Without tools, the driven machinery can be adjusted to meet different bottle size

>>Adopting Panasonic servo motor made in JAPAN and sensitive photo electricity, to insure the precision of cutting label.

>>Stainless steel electric controller, adopting Mitsubishi PLC made in Japan

Shrink Tunnel part

Shrink Tunnel part

>>Suitable for different and irregular round bottles, square bottles and flat bottles etc

>>New-style steam shrinking oven is easy to adjust and maintain

>>Whole machine is made of stainless steel with heat preservation

>>Complies with the international safety standard.

Steam Generator Part

Steam Generator Part

>>Fully automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service

>>A floating ball for liquid level is fixed in the water tank to automatically control the water inlet

>>After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.

Cooperation Brand

Turnkey Project

Automatic Beverage Bottle PVC Label Shrink Labeling Machine
Label Material
