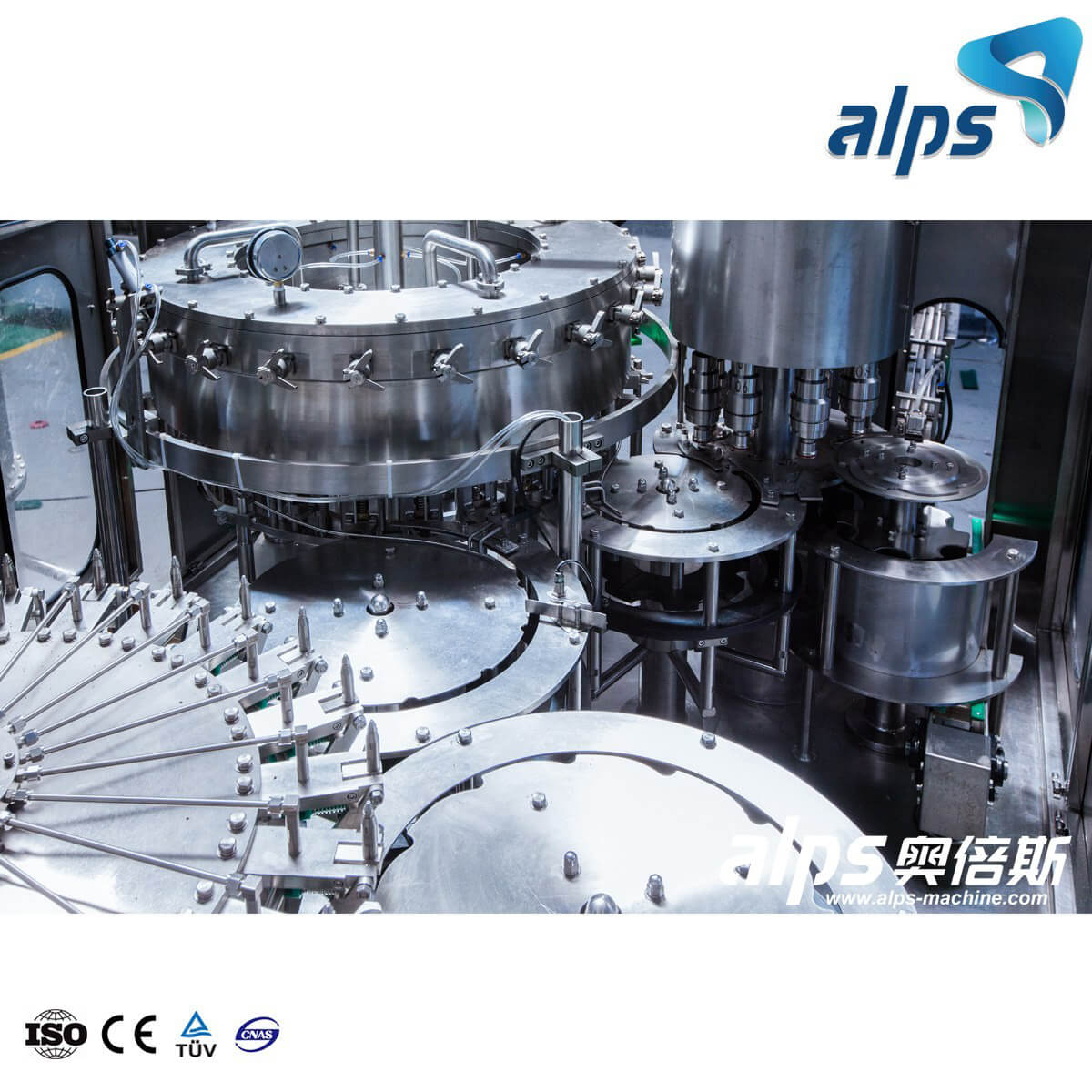

4000BPH Automatic Carbonated Drink Filling Machine (Model : DCGF18-18-6) 4000BPH Automatic Carbonated Drink Filling Machine (Model : DCGF18-18-6)

Capacity : 4000~6000 Bottle Per Hour Bottle Sizes :250ml ~2000ml Function :Washing Filling and Capping Machine

Quantity:
Share this:

Introduction

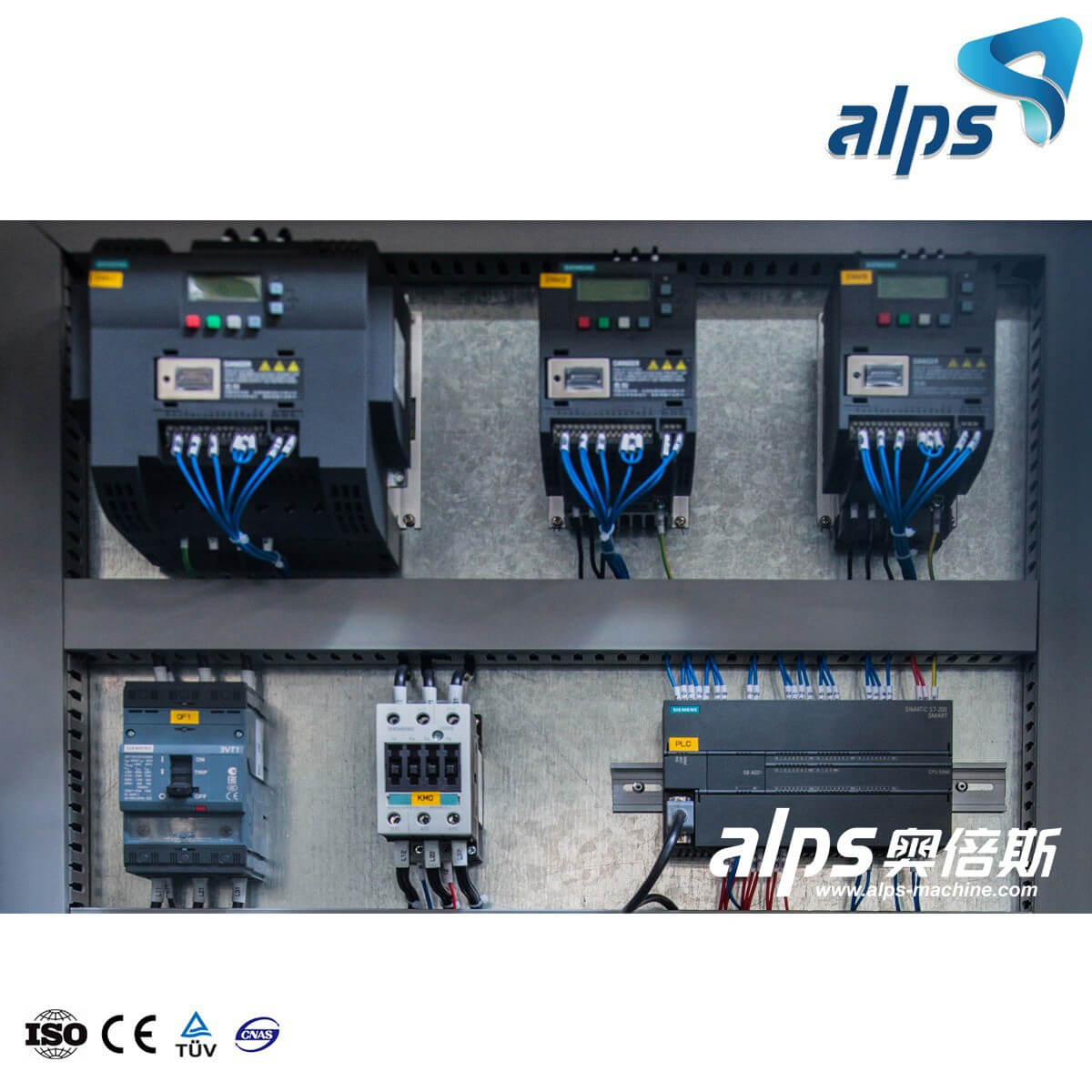

Our is a professional carbonated drink filling machine manufacturers, the automatic carbonated drink filling equipment mainly used in the Carbonated beverage filling operations, the three function of bottle washing, filling and capping are composed in one body of the machine, the whole process is automatic, it is conveniently turnked to adjust the machine to fill various types of bottles, the filling operation is faster and more stable due to the advanced filling valve technology, The famous brand programeed controller (PLC) is adopted to control the machine runs automatically. It is a ideal perferred equipment for beverage makers.


Application :

Function :Washing / Filling / Capping System
Suitable for:  PET bottles with screw cap Bottle sizes : 250ml ~ 2L
Filling system:  Isobaric filling typeCapacity:  4000 ~6000BPH
Application:  CSD drinks / Carbonated drinks / Energy Drinks /Soda water


Technical Data

Name :  4000BPH Carbonated Soft Drink Filling Machine
Model DXGF18-18-6
Capacity: (for 500ml)4000 -6000 Bottles/hour
Suitable bottle shapesPET Circular or Square
Bottle diameter Dia50 ~ Dia115mm
Bottle height 150 ~320mm
Compressor air 0.3 ~0.7 Mpa
Washing medium Aseptic water
Filling type Isobaric filling type
Application Carbonated Drinks / Soda Wtter / Energy Drinks
Total power5.2kw
Overall dimensions2.6X2.0m
Height 2.5m
Weight     4000kg


Details Description

Washing part

Washing part

>> Water distributor, bottle clamp, upturn plate, guide rail, protection cover, spraying device

>>All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean

>>304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

>>304 stainless steel washing pumps

>> All food grade SUS304/316 design

>> Effectively clean bottle and save water

>> Resting waiting for water drops

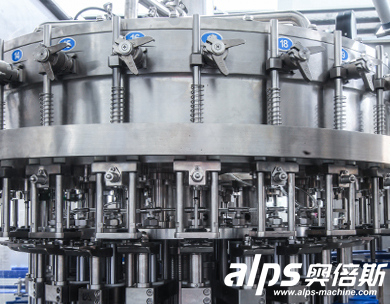

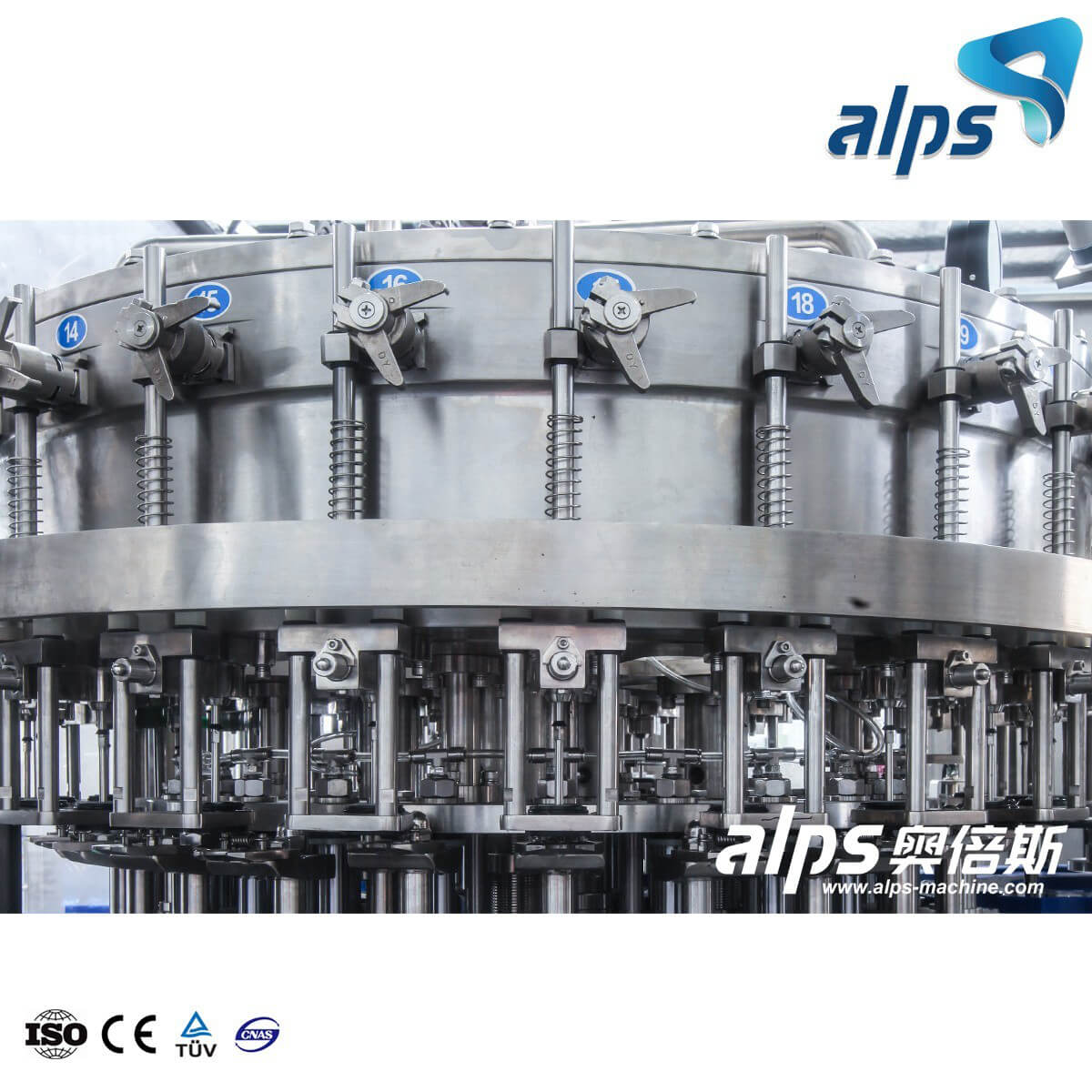

Filling part

Filling part

>>High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily

>>All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean

>> Filling valve, guide rail, elevating device, etc.

>> Isobari filling type

>> Filling volume adjustable

>> All food grade SUS304/316 design, harmless for beverages and easy to clean

>>No bottle no filling

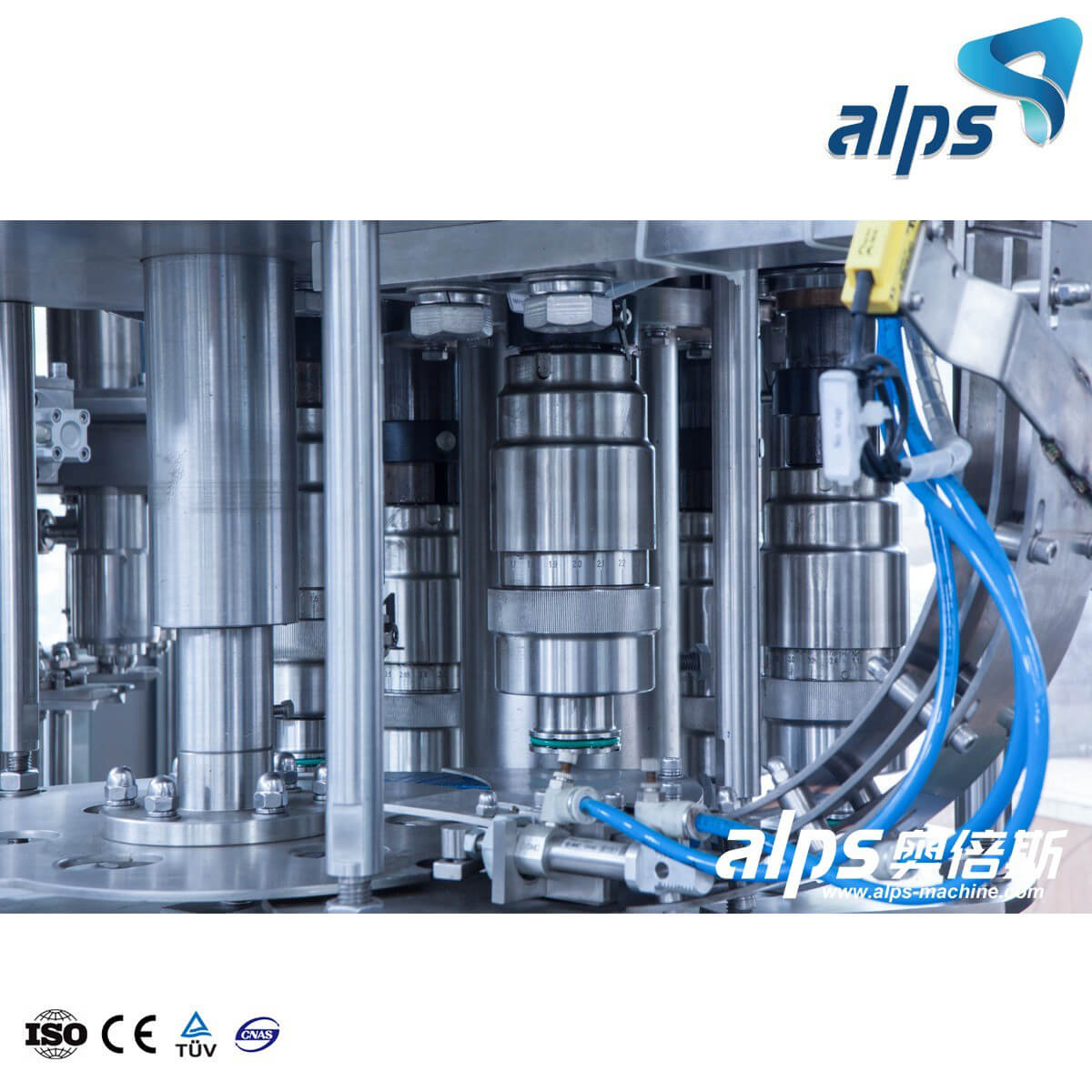

Capping part

Capping part

>>Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

>>All 304stainless steel construction

>> Cap unscrambler, cap drop rail and capper

>> Minimum bottle crash during capping

>> No bottle no capping

Cooperation Brand

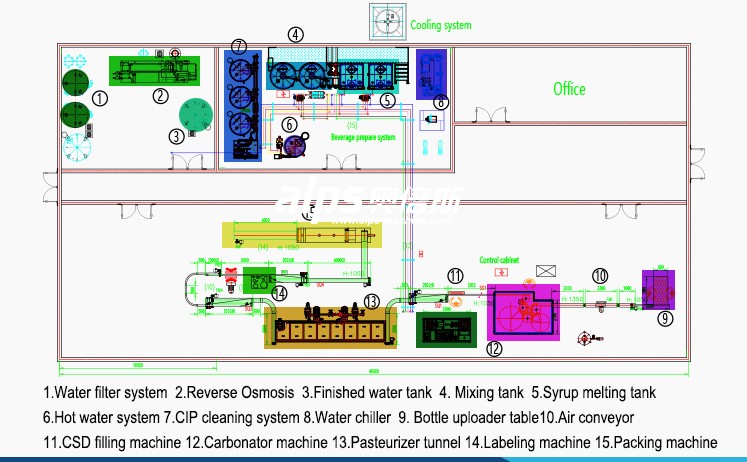

Turnkey Project

4000BPH Automatic Carbonated Drink Filling Machine
Filling System
Water Filter System
Beverage Prepare System
Carbonated System            Labeling System
Packing System
Bottle Blowing System
