What Is a Water Bottle Shrink Wrapping Machine and How Does It Work?

For the bottled beverage industry, efficient and safe packaging is crucial—not only to maintain product quality during transit but also to create a professional brand appearance. Among the many types of packaging equipment, the water bottle shrink wrapping machine plays a critical role in bundling and protecting bottled water for storage, transport, and retail display.

Whether you’re operating a small-scale bottling plant or a high-output automated line, understanding the function of a shrink wrapping system can help improve your operational efficiency and overall product presentation. This article explains what a water bottle shrink wrapping machine is, how it works, and how it fits into the complete bottled water production line.

1. Shrink Wrapping in the Bottled Water Industry

In the context of water production, once the bottles have been cleaned, filled, capped, and labeled, they need to be grouped and packaged for distribution. Shrink wrapping is a widely adopted secondary packaging method that uses heat-sensitive plastic film to tightly encase multiple bottles into secure bundles.

This method is especially common in the packaging of:

Mineral water bottles

Purified water

Alkaline water

Sparkling water in PET bottles

Shrink wrapping provides a lightweight, cost-effective, and visually appealing alternative to cardboard boxes or crates.

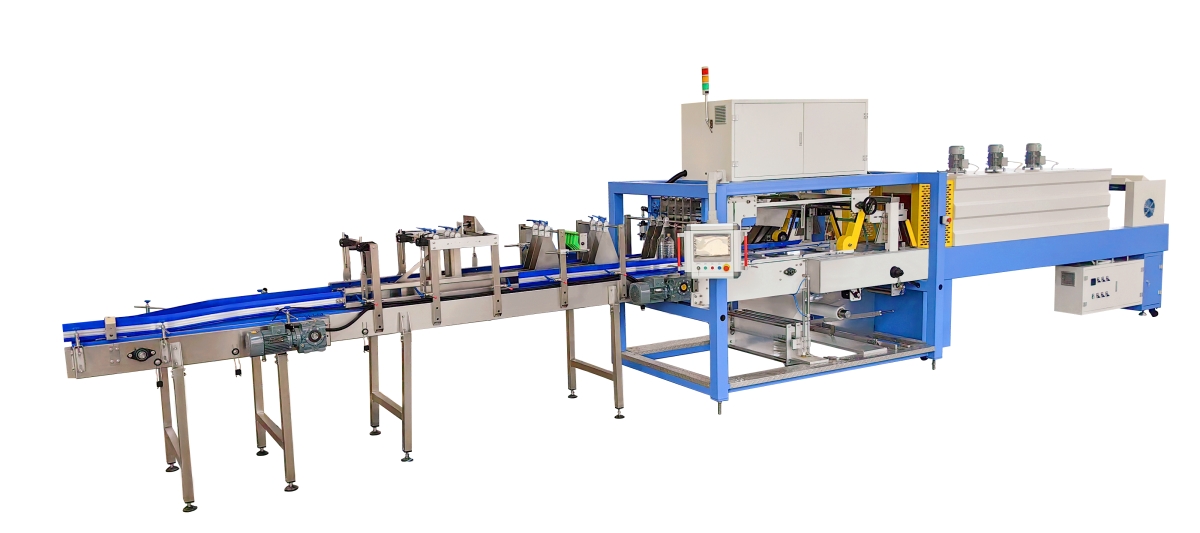

2. What Is a Water Bottle Shrink Wrapping Machine?

A water bottle shrink wrapping machine is an automated or semi-automated packaging system designed to group multiple water bottles and wrap them with heat-shrinkable film. Once wrapped, the bottle group passes through a heated tunnel that shrinks the film tightly around the pack, holding it securely together.

Shrink wrapping machines can be used for both small bottles (250ml–1L) and larger formats like 1.5L or even gallon jugs, depending on the configuration and film type.

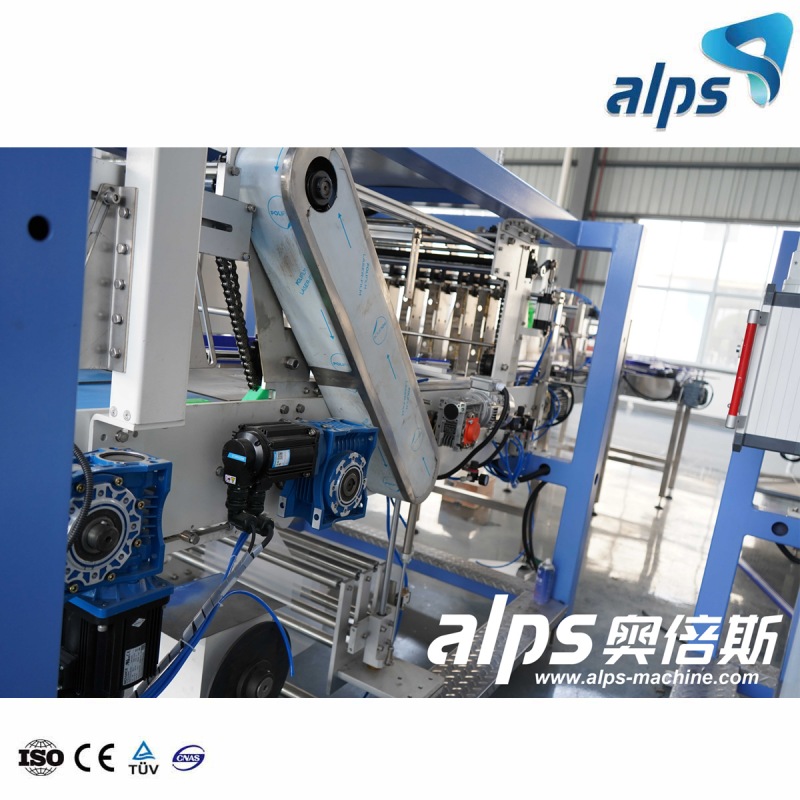

3. Main Components of a Shrink Wrapping Machine

A standard shrink wrapping system includes several integrated components, each with a specific role in the wrapping process:

Film Unwinding System: Dispenses the shrink film (usually PE, POF, or PVC) from a roll.

Bottle Collating System: Organizes incoming bottles into specific pack arrangements (e.g., 3×2, 4×3).

Film Sealing & Cutting Unit: Seals and cuts the film after the bottles have been wrapped.

Shrink Tunnel: Applies controlled heat to shrink the film tightly around the bottle bundle.

Cooling/Discharge Conveyor: Moves the completed pack out of the machine and allows the film to cool and set.

Each of these parts works together to ensure precise, high-speed packaging suitable for a commercial bottling line.

4. How Does a Water Bottle Shrink Wrapping Machine Work?

Let’s explore how this machine functions in a step-by-step process:

Step 1: Bottle Infeed

Bottles arrive from the PET bottle water filling machine via a conveyor. They are aligned and spaced evenly to be grouped properly.

Step 2: Grouping

The machine automatically arranges bottles into predefined groupings—typically in rows of 6, 12, or 24, depending on market or shipping requirements.

Step 3: Film Wrapping

The arranged group passes through the film wrapping station. Heat-shrink film is pulled over or around the group, enveloping the entire surface.

Step 4: Sealing and Cutting

The film is heat-sealed and cut using a knife or sealing bar, ensuring each bundle is tightly enclosed.

Step 5: Shrinking in the Tunnel

Wrapped packs enter the shrink tunnel, where warm air causes the plastic film to contract. This shrinking process hugs the film closely around the bottles, binding them into a sturdy package.

Step 6: Cooling and Discharge

After exiting the tunnel, the bundle is cooled via fans or ambient air. This step helps set the film and harden the structure for stacking, storage, or transportation.

5. Types of Shrink Wrapping Machines for Water Bottles

Shrink wrappers come in various configurations, each suited for different production capacities and bottle sizes:

Semi-Automatic Shrink Wrapping Machines

Ideal for small bottling operations

Manual bottle loading and grouping

Lower speed but cost-effective

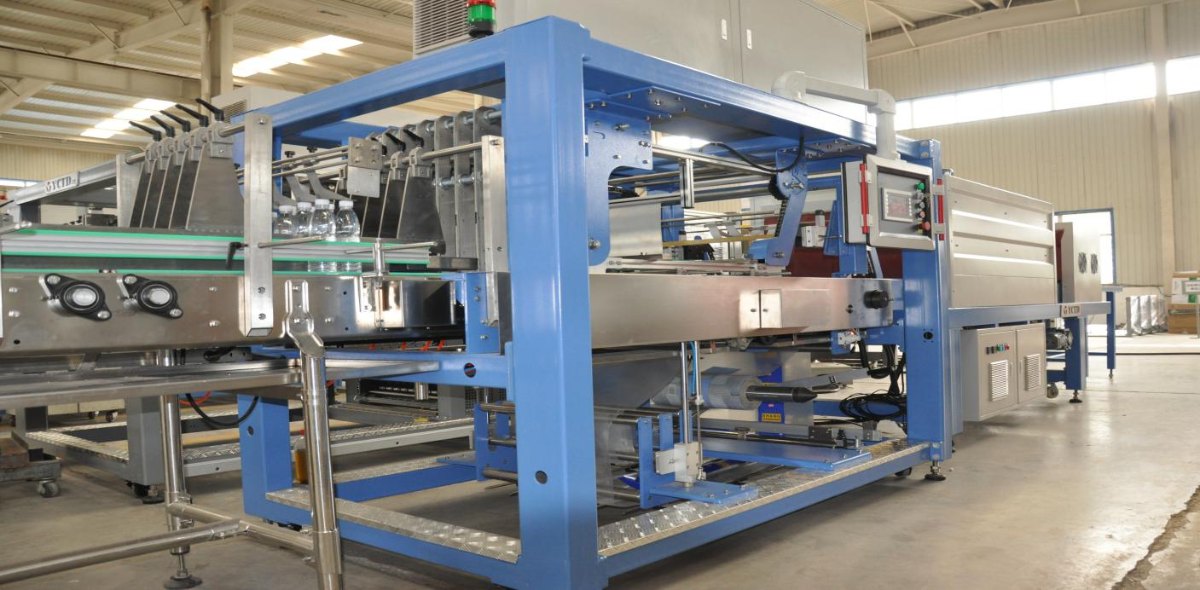

Fully Automatic Shrink Wrapping Machines

High-speed systems for medium to large-scale operations

Automatic bottle feeding, grouping, sealing, and shrinking

Compatible with upstream automatic water bottle filling machines

Sleeve Wrappers vs. Tray Wrappers

Sleeve wrappers use only shrink film around the bottle group

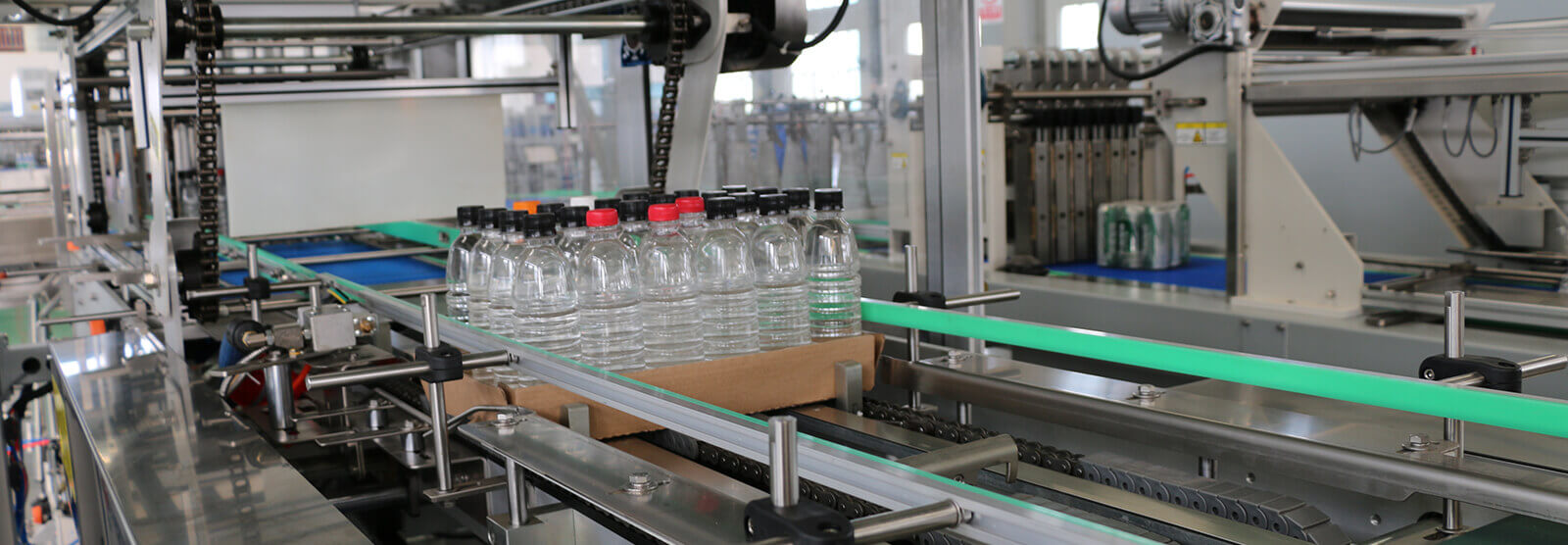

Tray wrappers use a cardboard tray with film to enhance rigidity

6. Integration Into the Bottled Water Production Line

In a modern water bottling plant, the shrink wrapping machine is typically positioned after the labeling station and before palletizing.

A complete mineral water bottle packaging machine line may look like this:

Plastic water bottle machine (preform blowing)

PET bottle water filling machine (rinsing, filling, capping)

Labeling machine (sleeve or adhesive labeling)

Shrink wrapping machine (secondary packaging)

Palletizer (for stacking and logistics)

Integration ensures synchronized speed, smooth product flow, and minimized downtime. Automation and smart control systems (PLC, HMI) further simplify operations and make it easier to switch between pack sizes or formats.

7. Conclusion

In the competitive bottled water industry, presentation and protection are just as important as product purity. A water bottle shrink wrapping machine offers a compact, durable, and cost-effective packaging solution that aligns with modern production demands.

From small start-ups to large-scale bottling plants, shrink wrapping plays a critical role in ensuring bottled water is professionally bundled, safely transported, and shelf-ready. Whether you’re wrapping 500ml PET bottles or larger 1.5L packs, the efficiency and reliability of shrink wrapping systems are unmatched in secondary packaging.
