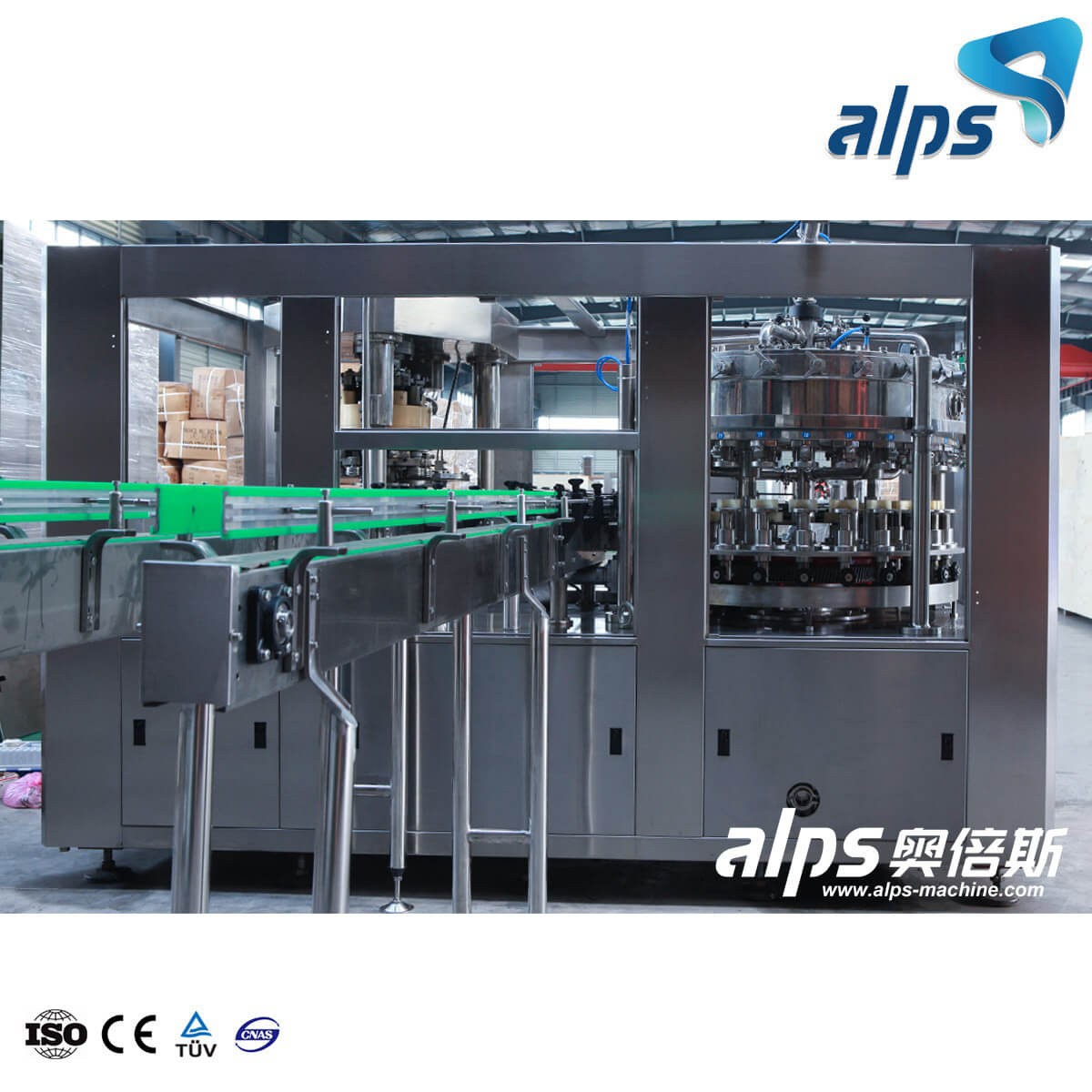

6000CPH Automatic Can Filling And Sealing Machine (Model : GD18-6 ) 6000CPH Automatic Can Filling And Sealing Machine (Model : GD18-6 )

Capacity : 5000~6000 Cans Per Hour Can Sizes : 200ml ~ 1L Function :Filling & Seaming

Quantity:
Share this:

Introduction

The automatic can filling and sealing machine specially for can filling and sealing machine it is designed on the basis of absorbing domestic and foreign advanced technology ,Used for canned food liquid packing machinery ,like for auto production of tin ,aluminium ,plastic or paper cans of beverage ,fruit , beer ,vegetable ,milk powder ,with complete funciton ,modern design and high degree of automation .it is a new kind of barreled water auto production line ,which integrates mechanism ,electricity and pneumatics technologies together


Application :

Function :Can Filling & Sealing
Suitable for:  Pop can / Tin can Bottle sizes : 200ML-1000ML
Filling system:  Isobaric FillingCapacity:  5000 ~6000 CPH
Application:  Carbonated Drink /Juice / Coffee / Tea drink/Wine/Energy drinks


Technical Data

Name :  Aluminum Can Carbonate Drink Filling and Sealing Machine
Model GD18-6
Capacity: (500ML)5000 -6000 Cans/hour
Filling heads18 pcs
Seaming heads                                       6pcs
Suitable Can volume200ml ~1000ml
Compressor air 0.4 ~0.6 Mpa
Filling type Normal Pressure
Application Carboanted drinks / Juice / Energy drinks
Total power4.5kw
Overall dimensions2.8X2.0m
Height 2.3m
Weight     3500kg


Details Description

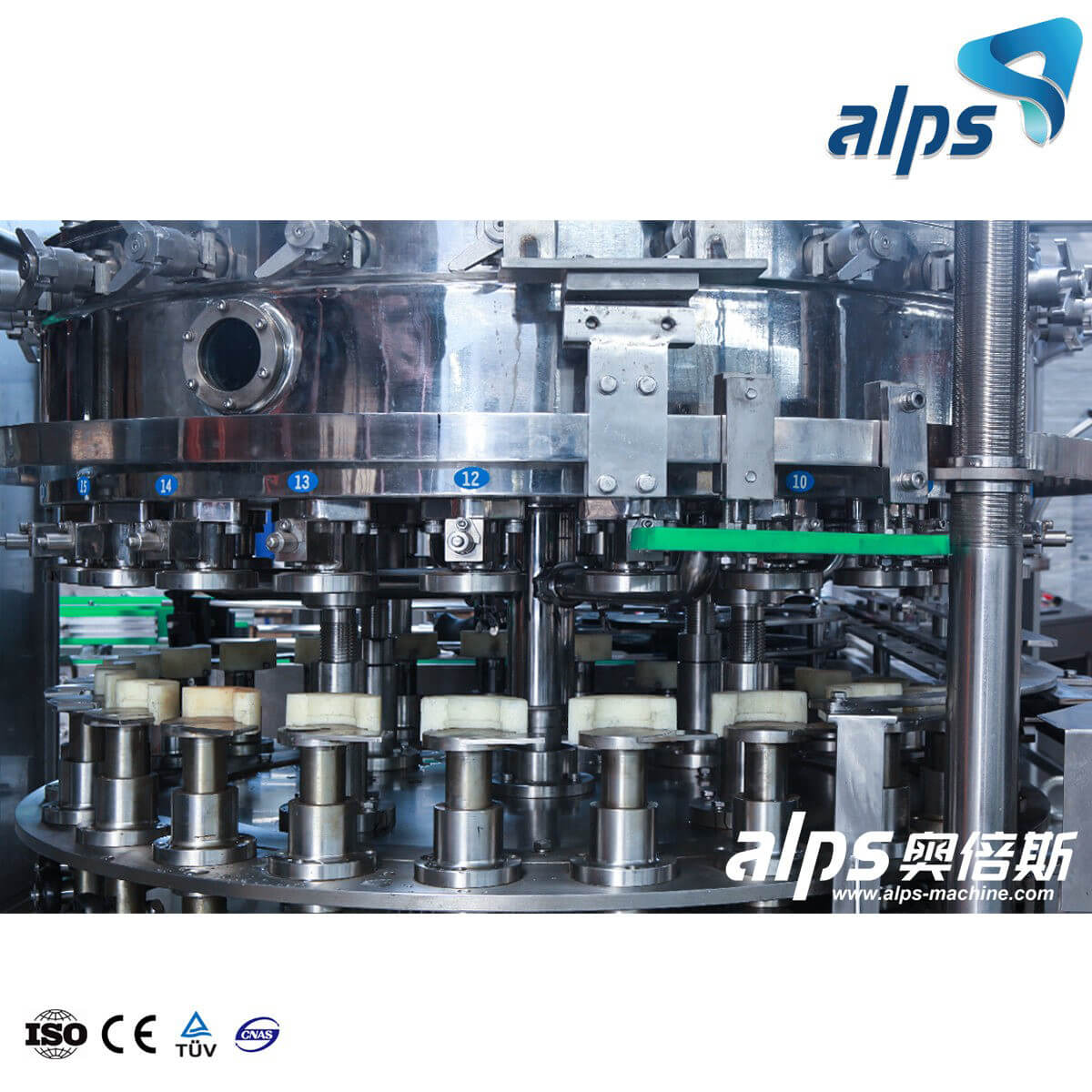

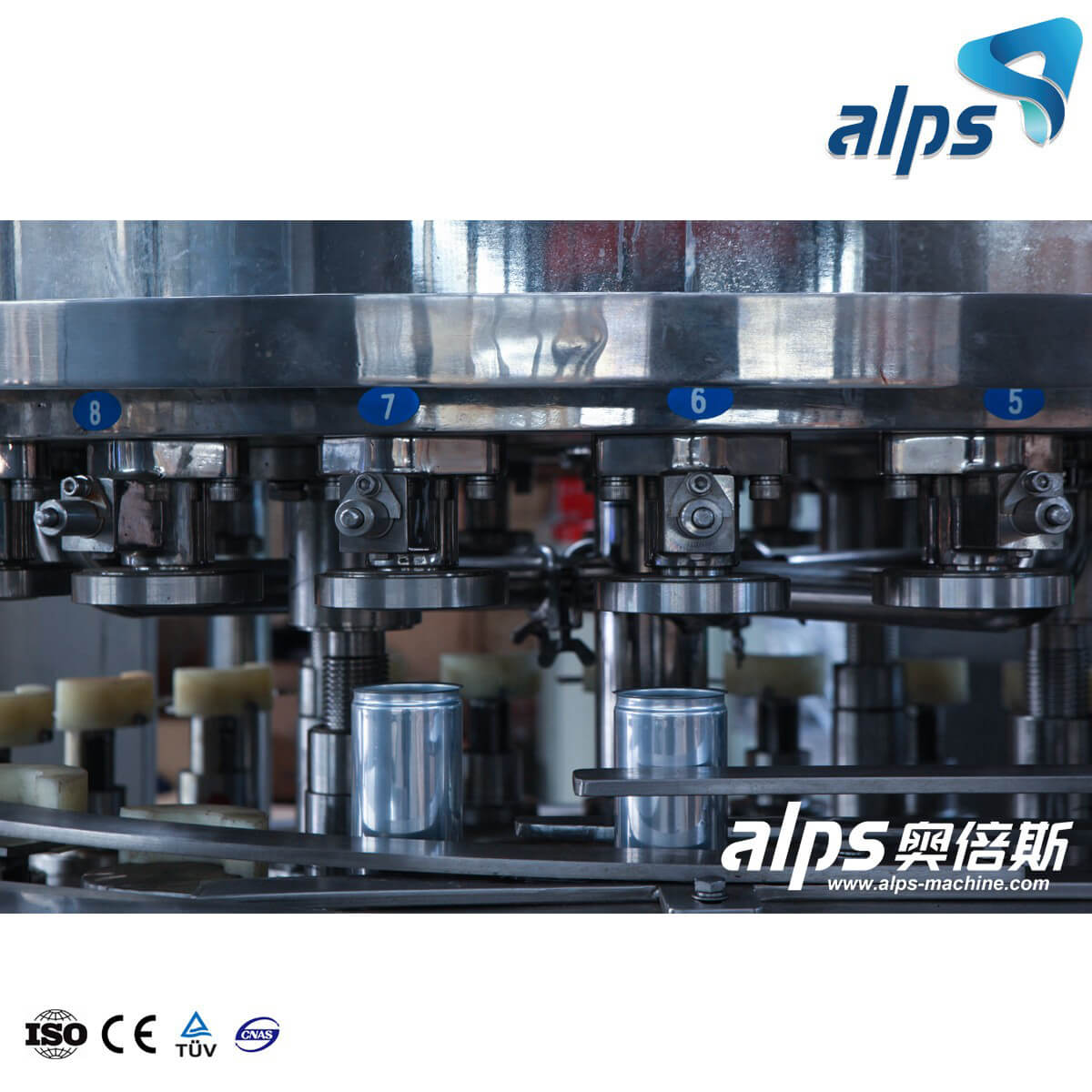

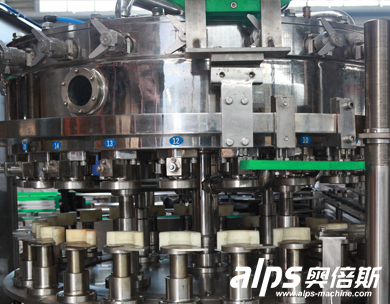

Filling part

Filling part

>>High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily

>>All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean

>> Filling valve, guide rail, elevating device, etc.

>> Different filling type For different beverage liquid

>> Filling volume adjustable

>> All food grade SUS304/316 design, harmless for beverages and easy to clean

>>No can no filling

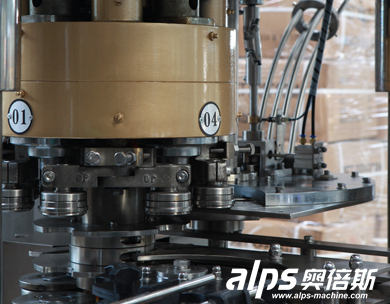

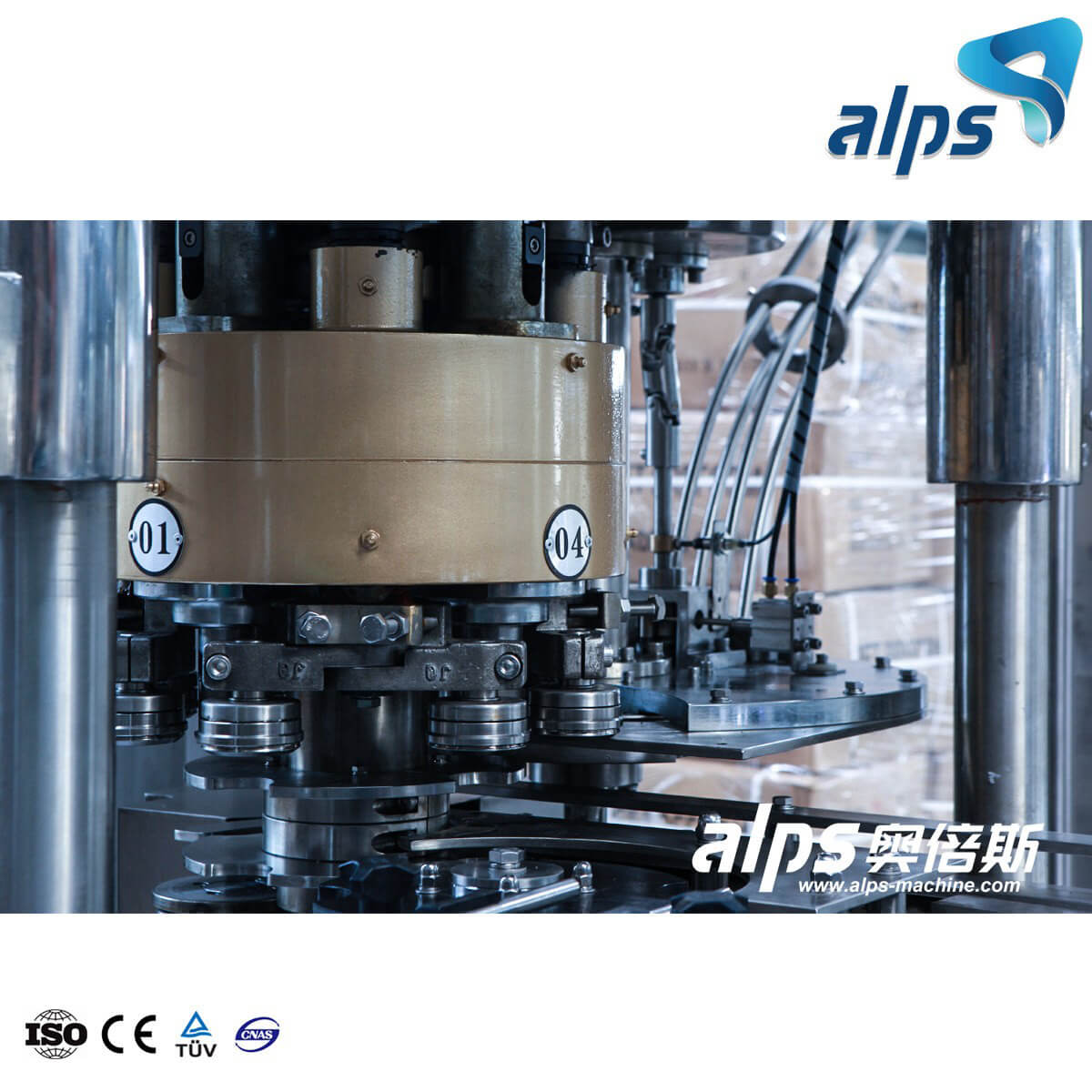

Seaming part

Seaming part

>>Good Sealing quality,beautiful and decent appearance ,convenient use and maintenance

>>All 304stainless steel construction

>> inverter controller speed adjustment

>> Minimum can crash during capping

>> No can no sealing

Cooperation Brand

Turnkey Project

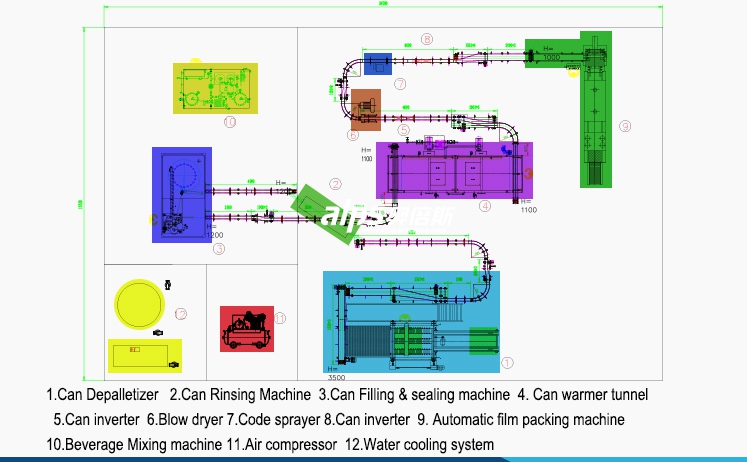

8000CPH Automatic Can Filling And Sealing Line
Can Filling System
Water Filter System

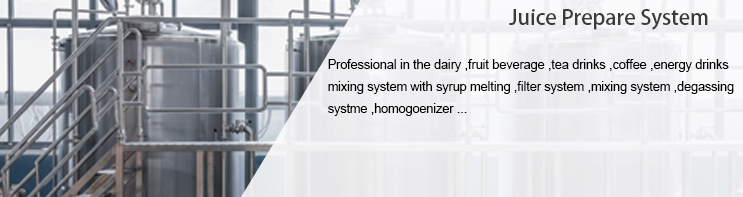

Juice Prepare System

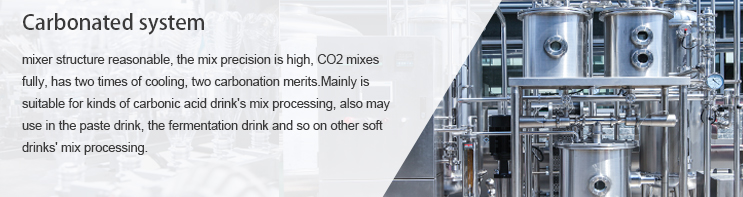

Carbonated System

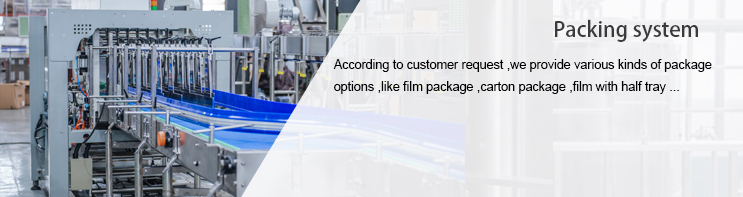

Packing System
