PET Bottle and Cap Compatibility for Water Filling Lines

PET bottle and cap compatibility on a water filling line requires three matches: the closure must seal the specified neck finish, the bottle must fit the machine's handling parts, and the combination must run reliably under the agreed production conditions. A cap that screws on by hand proves only a small part of that requirement.

This matters when selecting a new line, adding a bottle size or changing packaging suppliers. An apparently minor change to a support ring, cap skirt or bottle shoulder can require different machine parts. Confirm the packaging combination before finalizing tooling or ordering production quantities.

Specify the Neck Finish, Not Just the Cap Diameter

The neck finish is the defined geometry at the bottle opening, including features that engage the closure. A nominal diameter such as 28 mm is not a complete specification. Identify the finish designation, controlled drawing and revision, then obtain the closure supplier's confirmation that its exact cap model matches that drawing.

Review thread geometry, finish height, sealing surfaces and tamper-evident bead together. Also identify the support ring used by neck-handling equipment. Cetie's PET finish and closure nomenclature distinguishes these features and describes different sealing arrangements; matching only the outside diameter leaves essential interfaces unchecked.

For example, Cetie's finish data sheets list both GME30.26 and GME30.44 within the 29/25 family, with the latter identified as a lightweight finish. A family name therefore does not replace the precise specification. Likewise, do not treat PCO 1810 and PCO 1881 as interchangeable simply because both are marketed as 28 mm formats.

Confirm which surfaces form the seal and whether the cap uses a liner or molded sealing features. The tamper-evident band must engage as designed without premature damage during application. Thread engagement, sealing and tamper evidence are separate checks: success in one does not establish the others.

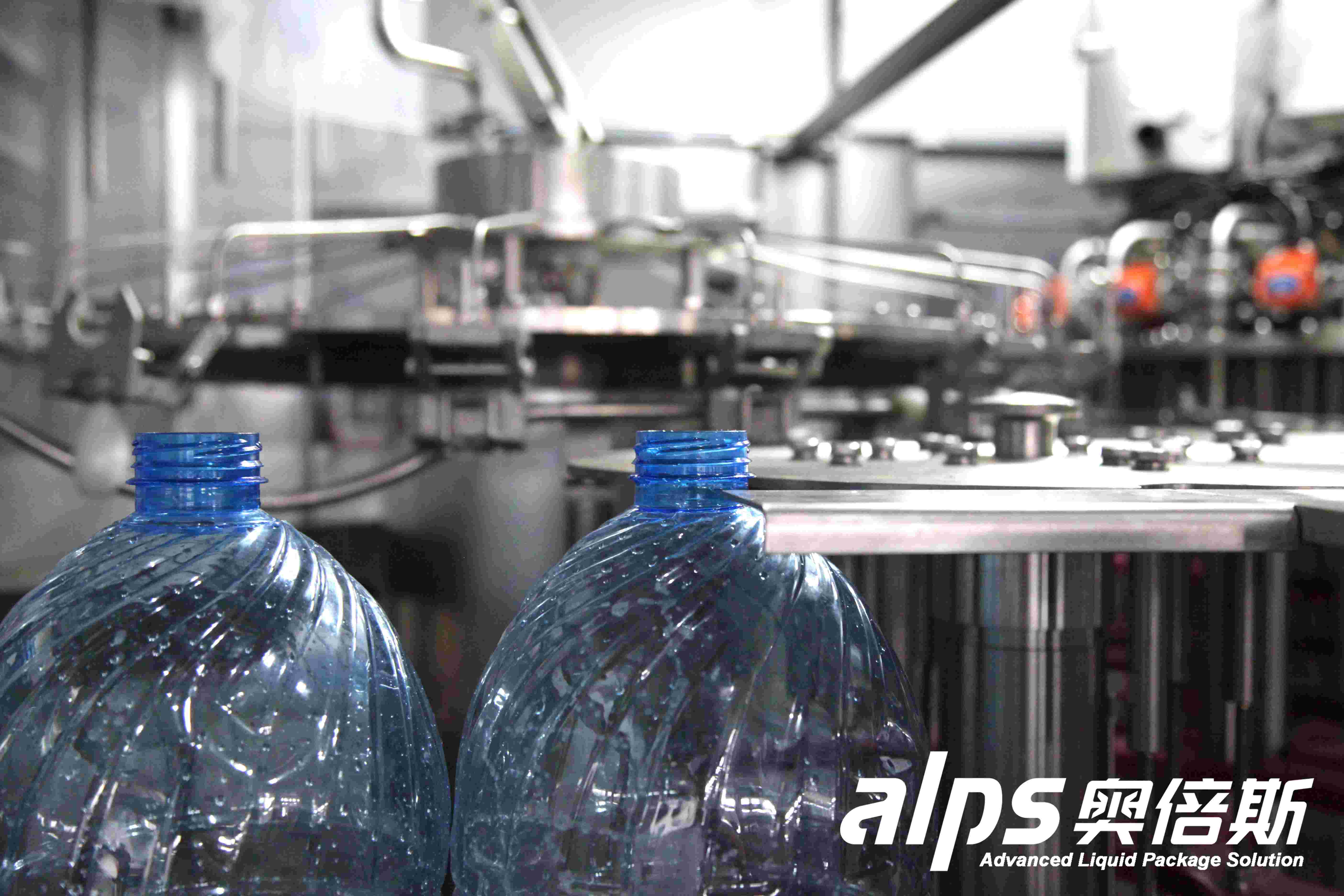

Bottle necks beside transfer guides. The thread, sealing surfaces and handling interface must be checked against drawings; a photo cannot identify the exact finish specification.

Check the Bottle Against Every Handling Interface

Neck-held and body-supported machines do not react to bottle changes in the same way. Ask the equipment supplier to trace the actual contact points from infeed through rinsing, filling and capping, using drawings and samples rather than bottle volume alone.

Keep bottle drawings dimensioned at the machine contact zones, not just at the widest point. A shoulder or waist can interfere with a guide even when overall diameter is acceptable. An asymmetrical bottle may also need orientation control where a round bottle does not.

The broader water filling machine guide explains the equipment sequence. For compatibility, the useful deliverable is a list of contact parts and adjustments for each approved bottle-and-cap combination.

Filling valves and bottle-handling stations. Neck location, valve clearance and transfer geometry all belong in the package compatibility review.

Match the Closure to the Capper and Its Operating Window

A cap can match the bottle yet remain unsuitable for an existing feeding or capping setup. Review its outside profile, height, grip features and skirt with the cap sorter, chute, transfer mechanism and chuck. A sports cap or tethered design needs an equipment review even if its mating neck finish is unchanged.

Ask the closure and capper suppliers to agree the application settings and limits for the actual pair. Torque, axial load and bottle restraint interact. Excessive force is not a reliable cure for leaking bottles: first check part identity, alignment, sealing surfaces and application condition.

Application torque is used while fitting the cap; removal torque is measured when opening it. They are not interchangeable acceptance values. The public scope of ASTM D2063/D2063M-24 describes manual removal-torque measurement for matching continuous-thread packages under defined conditions over time. It is not a universal capper torque setting.

Record measurement timing and conditioning alongside the supplier-agreed limits. Check seal integrity and opening behavior separately, since a torque reading alone does not establish a leak-free package or correct tamper-band performance.

Rotary capping heads and positioning parts. Closure shape, chuck engagement and bottle restraint need to work together during application.

Treat Bottle Shape and Lightweighting as Engineering Changes

Bottle weight alone cannot describe stiffness or handling behavior. Wall distribution, shoulder geometry, base design and the actual blowing process affect how a PET bottle responds to gripping and loading. Review the finished bottle when reducing weight or changing the preform or resin specification, including an rPET change.

As one industry example, Sidel's packaging qualification approach evaluates stability and rigidity as well as overall packaging performance. For your project, agree which package properties and line trials need renewed validation; neither recycled content nor lower weight automatically proves compatibility or incompatibility.

A larger volume or different body profile may also change the qualified running rate. Review how bottle size affects line capacity [Internal link pending → Article 01: Water Filling Line Capacity: How to Calculate Real BPH and Daily Output] before carrying a previous SKU's output figure into a purchasing decision.

Separate Adjustments, Change Parts and Requalification

For each proposed SKU, have the supplier identify what stays, what adjusts and what must be replaced. The same neck finish may allow some neck-contact parts to remain, while body guides, starwheels, filling-height settings or downstream tooling still change. Do not interpret 'multi-size capable' as 'no change parts required.'

Maintain an approved-format record linking the bottle drawing revision, cap model, relevant machine parts, operating recipe and qualification status. If several suppliers are involved, name who approves the complete combination. For the broader equipment purchase, the guide to choosing a bottled water filling machine places this format review within the overall selection decision.

Approve Representative Samples Before Production Orders

Send production-representative bottles and caps with identifiable suppliers, drawing revisions and lot details. Ask the packaging and machinery suppliers to agree sample quantities and coverage of expected dimensional variation. A few hand-selected samples or a different preform can conceal problems that appear in routine supply.

First reconcile drawings and samples, then check machine fit and operation within the agreed range. Preserve an identified reference set and the approval record. Changes to the bottle mold, finish, closure design or material specification should trigger a documented review of what requires retesting.

Use the approved sample set when arranging bottle and cap tests during FAT . Detailed test methods, sampling and acceptance criteria belong in that agreed test plan, not in an informal statement that the bottle 'fits.'

Frequently Asked Questions

Can two cap suppliers be approved for the same bottle?

Yes, but qualify each exact closure model rather than treating supplier names as interchangeable. Compare the approved drawings, feeding behavior, application settings and package performance. Keep each combination traceable in the format record so purchasing substitutions do not silently change the production setup.

Can a screw-cap line handle snap-on water caps?

Do not assume so. A snap-on closure requires the matching bottle finish and an appropriate application mechanism, not simply a different torque setting. Ask the machinery supplier to assess the required capping and feeding changes before committing to either the bottle or the cap.

Does changing only the bottle color require review?

A color change may leave the nominal geometry unchanged, but its effects on bottle detection and downstream inspection should be checked. Confirm the actual resin and colorant specification with the bottle supplier, and agree whether existing qualification evidence covers the proposed production material and equipment setup.

Is a supplier's 'food-grade' declaration enough?

No. Suitability for the intended product and market is separate from mechanical compatibility. Obtain the applicable material and intended-use documentation, while also checking the bottle-cap pairing and machine interfaces. Neither a material declaration nor a successful fit trial substitutes for the other evaluation.

Can a still-water package be reused for sparkling water?

Not on the basis of fit alone. Internal pressure changes the package requirements, including the bottle, closure and sealing system. Obtain explicit approval for the intended carbonation and conditions, and confirm that the filling equipment supports that application before reusing a still-water packaging combination.

Approve the Bottle, Cap and Machine as One Combination

Before ordering a water filling line or adding a format, share bottle drawings, identified cap samples and intended running conditions with Alps Machine. Use them to discuss the handling configuration, required change parts and validation scope, so packaging decisions and equipment specifications stay aligned.
