Safe Operation of Fruit Juice Filling Machine

Views: 657 Author: Site Editor Publish Time: Origin: Site

Juice beverage filling machine is a machine for filling beverages. It can be filled with carbonated beverages, carbonated water, soda and other carbonated beverages, and can also be used to fill juice beverages, pure water and other non-sparkling beverages. Juice beverage filling machine is filled under the pressure of the bottle is less than atmospheric pressure, suitable for liquids of various viscosity, such as oil, syrup, fruit wine, etc. can be used for this kind of filling.



Fruit juice filling machine



Using a fruit juice filling machine for beverage filling can greatly improve the filling efficiency, but when operating the machine, it is necessary to pay attention to safety.



Before use, it is necessary to test run. By observing whether the three-phase motor is running in the correct direction, the pressure of the filling machine is normal, the motor and bearings are operating normally,  lubricating oil needs to be added, and at the same time, it is necessary to pay attention to the firmness of each part of the beverage filling machine Whether the pieces are loose.



When the juice beverage filling machine passes the inspection before use, it can be used. It is necessary to pay attention to whether the safety equipment functions normally during use. Before reopening after each shutdown, you need to check the water tank, chain plate, conveyor belt, storage box, etc. for any abnormalities, and pay attention to whether the water source, power supply, and air source are connected.



After checking the equipment is intact, close the main Power QF, power indicator light is on, fault indicator light and emergency stop indicator light are not on, you can press the start button on the operation control box and the start switch of the filling place to start the overall operation of the machine. Press the stop button at the installation place and the control box. After stopping, the main power supply should be turned off.



In the whole juice beverage filling machine industry, the operation control box is used as a device to control the beverage filling machine. In the past, it was generally designed or adopted for a large-size box. This is mainly from the perspective of safety.



During operation control, there will be no safety accidents due to performance problems of the operation control box. The steps are as follows;



1. Observe the mechanical parts frequently during production to see whether the rotation and lifting are normal, whether there are abnormalities, and whether the screws are loose;



2. Check the ground wire of the equipment, reliable contact requirements; frequently clean the weighing platform; check the pneumatic pipeline for leaks and whether the trachea is broken;



3. The lubricating motor of the reducer is replaced with lubricating oil (grease) every year, check the tightness of the chain and adjust the tension in time



4. If the product is stopped for a long time, the materials in the pipeline should be emptied;



5. Do a good job of cleaning and sanitation, keep the surface of the machine clean, often remove the accumulated material on the scale body, and pay attention to keeping the interior of the electric control cabinet clean;



6. The sensor is a high-precision, high-sealing, high-sensitivity device. Impact and overload are strictly prohibited. It must not be touched during work. Disassembly is not allowed for non-overhaul.

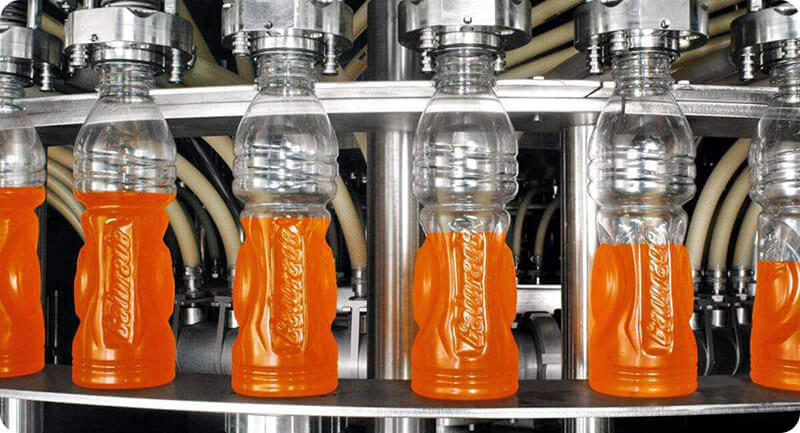

 juice filling line

That’s the basic introduction of safe operation of fruit juice filling machine, Zhangjiagang Alps Machine Co.,Ltd has a lot of juice filing machine for sale If you encounter any problems about anything, please feel free to send us inquiry and we will do our best to assist you to solve the issue.
