Reverse Osmosis Technology in ALPS Water Treatment Systems

Views: 97 Author: Site Editor Publish Time: Origin: Site

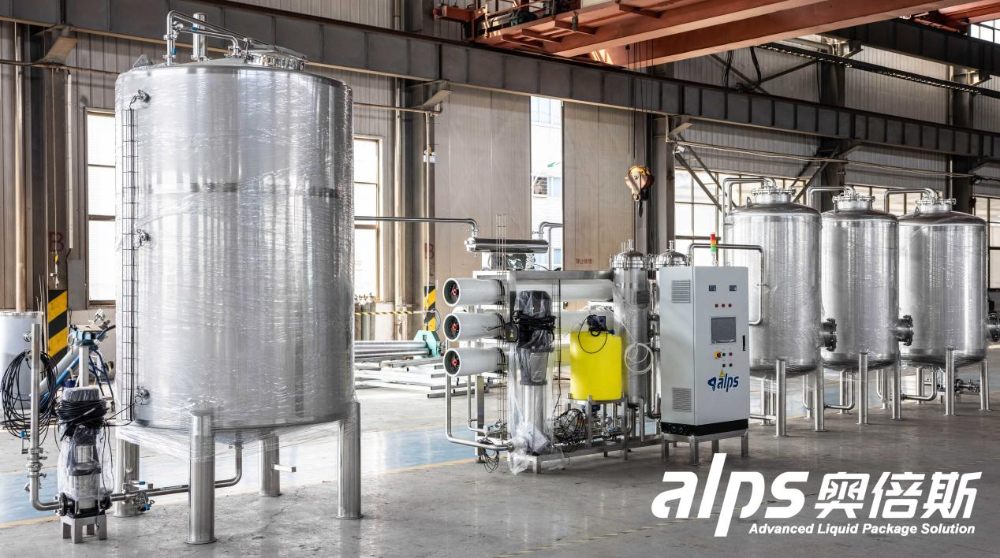

ALPS Water Treatment Systems.jpg

1. Introduction

Water is a vital resource for numerous industrial, municipal and even nuclear applications. As global attention to water quality and sustainability continues to grow, advanced water treatment technologies have become indispensable. ALPS, a leader in water treatment and the development and production of beverage filling and packaging machines, has made significant advances in optimizing purification systems, with a particular focus on reverse osmosis (RO) technology. This article will provide a technical overview of reverse osmosis technology and explore how RO can be integrated into ALPS water treatment systems to improve their performance and provide solutions to some of the most complex water treatment challenges.


2. Understanding ALPS Water Treatment Systems

ALPS Machine offers the ultimate solution for clean and safe drinking water. As a leading manufacturer in water treatment systems, we specialize in filtering and purifying water from various sources, including well water, deep well water, seawater, medical water, salt water, and brackish water. We tailor our water filtration technology to each customer's unique water source and water quality report.

Our advanced equipment utilizes PLC automatic control systems, international brand filter membranes, and online water quality monitors to ensure the most advanced, economical, and effective systems. Our meticulously designed systems not only meet national drinking water quality standards but also exceed the rigorous guidelines set by the World Health Organization.


3. Understanding Reverse Osmosis Technology


3.1 Overview of reverse osmosis technology

Reverse osmosis technology is a kind of membrane separation technology with the function of selective permeability (semi-permeable) membrane with pressure as the driving force, when the pressure added in the system is greater than the osmotic pressure of the feed solution, the water molecules continuously pass through the membrane, and flow into the center pipe through the water production flow, and then flow out at one end of the water impurities in the water such as ions, organics, bacteria, viruses and so on, are retained in the inlet side of the membrane, and then out in the concentrated water outlet side, thus achieving the purpose of separation and purification.


3.2 Principles of Reverse Osmosis

Reverse Osmosis (RO) technology is a mature membrane liquid separation technology, in the feed water (concentrated solution) side of the operating pressure to overcome the natural osmotic pressure, when higher than the natural osmotic pressure of the operating pressure added to the concentrated solution side of the natural osmosis of water molecules in the direction of the flow will be reversed, the water molecules in the feed water (concentrated solution) part of the reverse osmosis membrane through the dilute solution side of the purification of the produced water.

Reverse osmosis equipment can block all dissolved salts and molecular weight greater than 100 organic matter, but allows water molecules to pass through, reverse osmosis composite membrane desalination rate is generally greater than 98 percent, can be widely used in industrial pure water and electronic ultra-pure water preparation, drinking water production, boiler feed water and other processes, the use of reverse osmosis equipment before the exchange of ions can be greatly reduced to the bottom of the operation of the water and wastewater discharges.

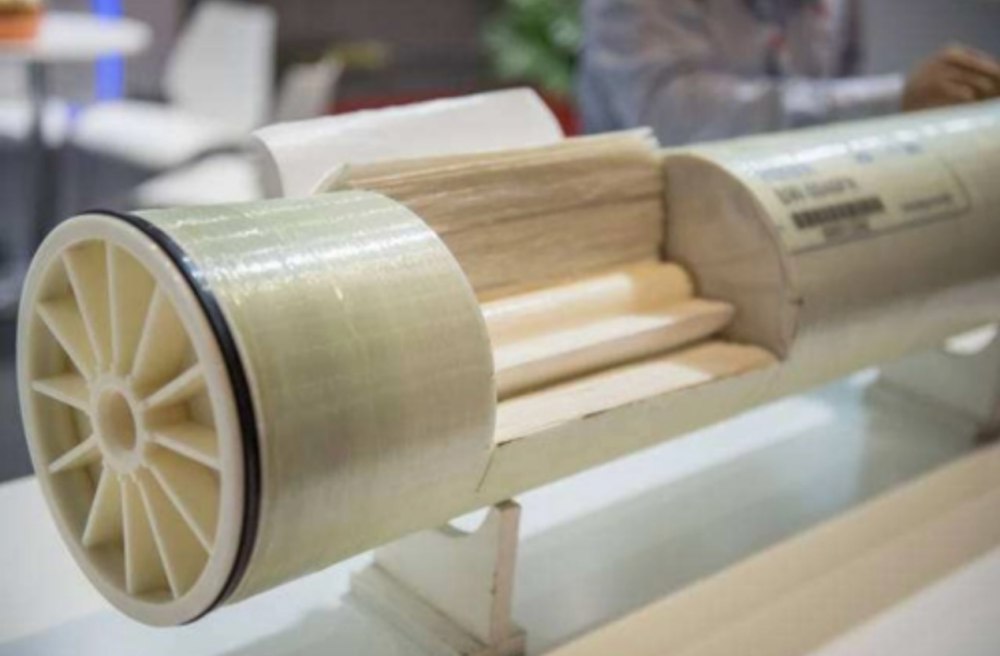

Reverse osmosis equipment system working principle.jpg

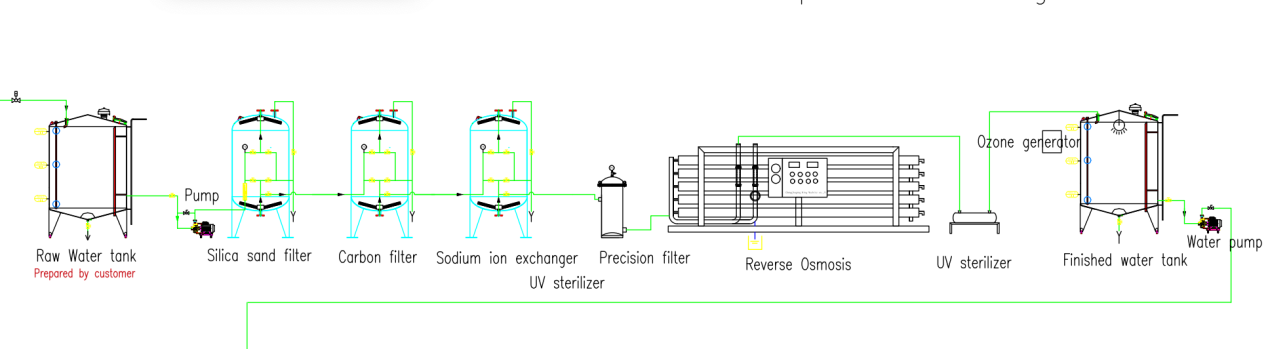

3.3 Composition of reverse osmosis system

Reverse osmosis water treatment equipment is usually composed of three parts: raw water pretreatment system, reverse osmosis purification system and ultra-purification post-treatment system. The purpose of pretreatment is mainly to make the raw water to achieve the reverse osmosis membrane separation components of the water intake requirements, to ensure the stable operation of the reverse osmosis system. Reverse osmosis technology is a one-time removal of more than 98 percent of the ions in the raw water, organic matter and microorganisms mature purification methods. Ultra-purification post-treatment system through a variety of integrated technology to further remove the reverse osmosis water out of the remaining trace ions, organic matter and other impurities to meet the water quality indicators for different purposes.

Composition of reverse osmosis system.png

3.4 Advantages of RO Technology

RO technology offers several benefits:

High Efficiency: RO is highly effective at removing dissolved solids, salts, and other impurities from water, making it an ideal solution for industries that require high-purity water.

Sustainability: RO is energy-efficient compared to other water treatment methods, and it minimizes the need for chemical treatments.

Flexibility: RO can treat a wide variety of water sources, including seawater, brackish water, and industrial wastewater.


3.5 Applications of RO in Water Treatment

RO technology is widely used in desalination plants, drinking water purification, and industrial water treatment systems. Its ability to purify water to the highest standards has made it a preferred choice for municipalities, industries, and even specialized applications such as nuclear waste treatment.

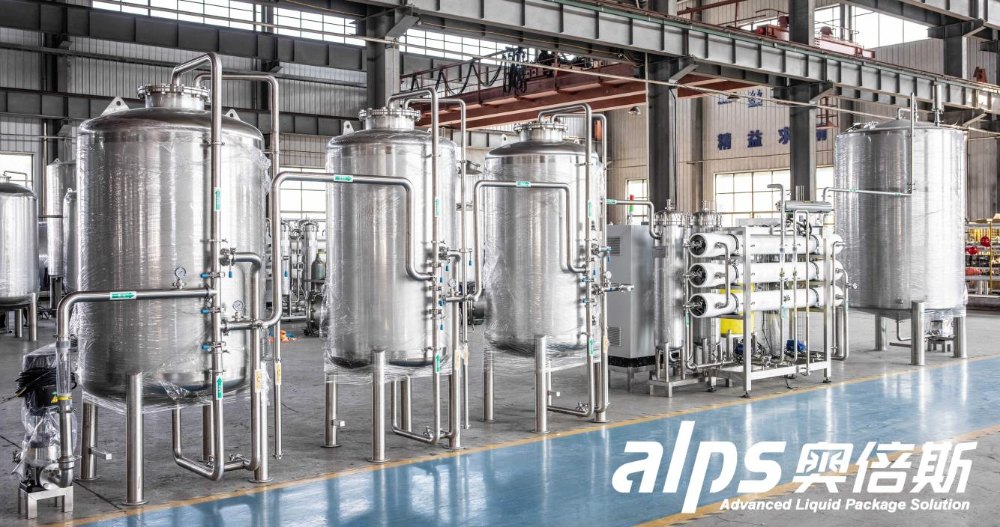

RO system pretreatment system.jpg

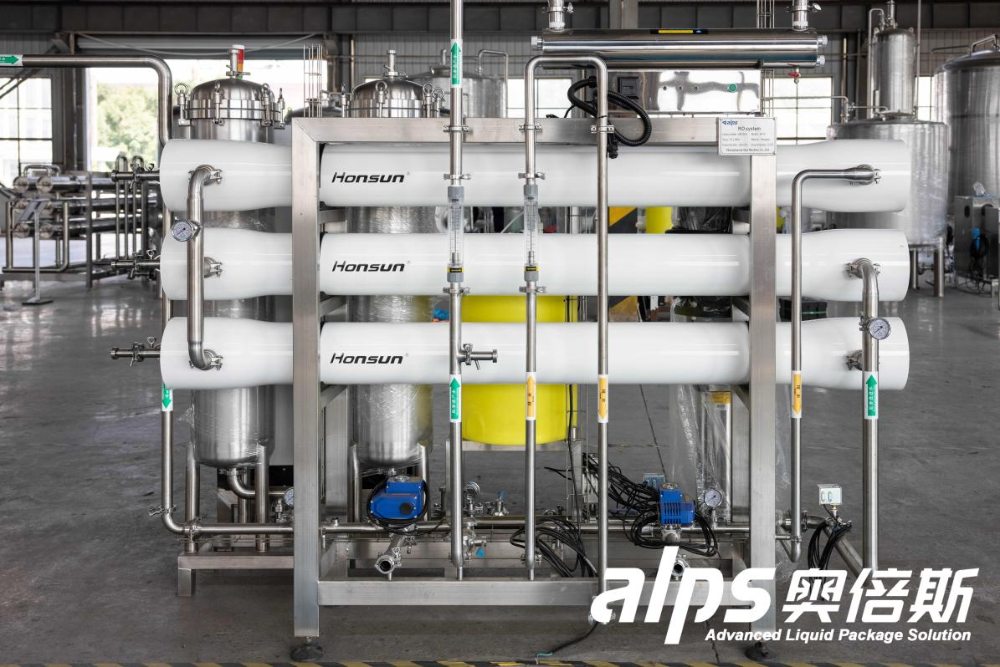

4. Design options for reverse osmosis systems

Design of surface water reverse osmosis system, designers should consider the balance of equipment investment and operating costs, not only to ensure that the amount of water produced and the quality of produced water, but also to reduce energy consumption and reduce the frequency of cleaning.


4.1 Membrane types

Since the essence of reverse osmosis membrane system design is an optimization design problem, there must be a corresponding optimization mathematical model. According to the mathematical planning theory of operations research, a mathematical planning model should be composed of optimization objective function, functional equation constraints, functional inequality constraints and variable inequality constraints. The reverse osmosis membrane system can be optimized by the following ways to design the model.


(1)Optimization goals

Membrane system optimization design of the economic objectives of the system is naturally the lowest total cost, including: the lowest investment in equipment, the lowest operating costs and the lowest cost of water consumption. If the discount rate or interest rate factors, it can be assumed that the total cost is the total investment in equipment and equipment life of the operating costs of each year and each year of the algebraic sum of the cost of water consumption.


(2)System constraints

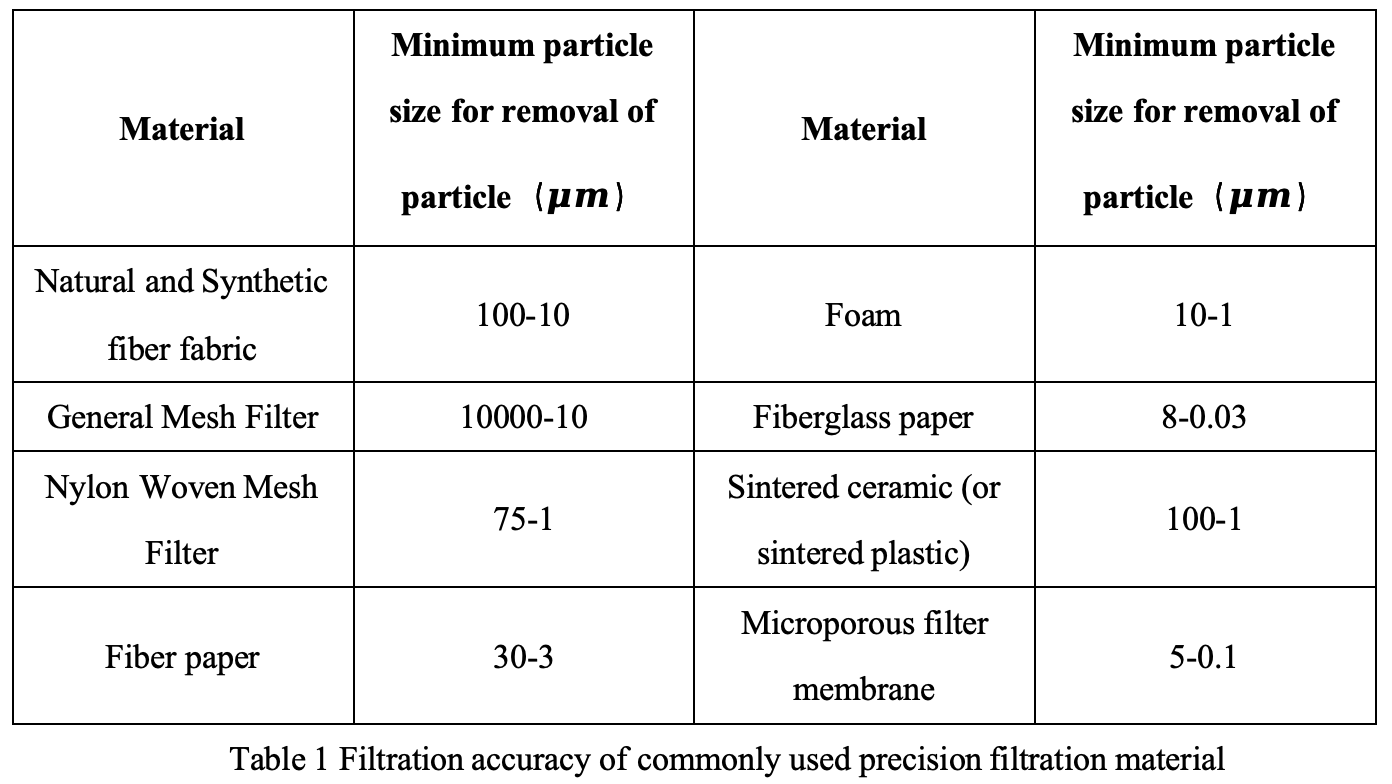

The unique internal law of membrane system is mainly manifested in the characteristic equations of the element and the system characteristic equations. Membrane element water permeability is proportional to the average pure drive pressure of the element, membrane element salt permeability is proportional to the difference between the average salt concentration on both sides of the membrane for the operation of the membrane element of the two main characteristics of the equation. Before the branch (section) pieces of water flow for the former branch (section) components of the water production flow and the latter branch (section) components of the water flow and the former branch (section) components of the water salinity for the former branch (section) components of the water salinity and the latter branch (section) components of the water salinity and the two main characteristics of the operation of the membrane system equations. These components and the intrinsic mathematical relationship between the system parameters constitute the system equation constraints in the optimization model.

截屏2024-11-27 15.47.01.png

(3)Limit value constraint

The hydrodynamic and hydrochemical characteristics of a reverse osmosis (RO) system are expressed in terms of concentration, polarization limits, refractory salt saturation limits, and segmental average flux ratio limits. In addition, there are constraints on the system design such as upper feedwater flow limits, lower concentrate flow limits, and upper operating pressure limits. These parameter limits form the limit inequality constraints in the optimization model.


(4)Basis constraint

System design in the influent water quality conditions, water quality and flow requirements of the three major design basis collectively referred to as the basis of constraints. One of the produced water flow and produced water quality is also a technical indicator of the system, the former for the design and operation of the indicators must be met, the latter for the design and operation can be more than the characterization of the lowest cost of water consumption in the membrane system, so the two respectively for the equation and inequality constraints. The influent water quality conditions belong to the given data and are included based on the constraints only for the systematic classification of constraints in the model.


(5)Optimizing variable

System design to directly address the issue of optimization variables in the model, including: membrane species, the number of membranes, membrane arrangement, container length, the number of containers, pump flow, pump pressure, the system recovery rate, the value of pressurization between the segments and the thick water back to the flow rate and other design parameters. As the specifications of multi-stage pressurized pumps are often rated flow rate and the number of impeller stages (each stage of the impeller pressurization pump parameters can also be used to pump flow (refers to the rated flow rate) and the number of pump stages (refers to the number of impeller stages) characterization. Because of the existence of numerical upper and lower limits for each variable, the variable constraints are all inequality constraints.

Design options.jpg

4.2 Water flux

Once the membrane material has been selected, the second important parameter for the designer to consider is the water production flux. Water flux is the amount of water produced per unit of effective membrane surface and is expressed as GFD (gallons / ft2 / day) or LMH (liters / m2 / hour).

Water flux can be optimized in several ways:

(1) Adjusting the proportion of wastewater: By adjusting the wastewater valve, the proportion of wastewater can be reduced, thus increasing the output of pure water. However, it should be noted that this will reduce the quality of pure water and may shorten the service life of the RO membrane, so it is not recommended to do this often.

(2) Improve the pre-treatment system: add or improve the pre-treatment step before the RO system, for example, use a better pre-filter or ultra-filtration membrane to remove more impurities, which can reduce the workload of the RO membrane and improve its efficiency.

(3) Adjust the feed water conditions: as mentioned earlier, water temperature and water pressure have a great impact on the performance of RO membrane. Ensure that the water temperature is suitable (in general, the higher the temperature, the greater the flux), and maintain appropriate water pressure (neither too low nor too high).

(4) Optimize the RO membrane itself: Improve the membrane material so that it has better hydrophilicity, thus increasing water permeability. Improve the coating process to increase the effective water permeable area of the membrane. Adjust the design of the water supply channel to make the water distribution more uniform and reduce the concentration polarization effect.

(5) Maintenance and replacement of RO membrane: Regular cleaning of RO membrane to remove dirt and mineral deposits, if necessary, replace the aging RO membrane. Replacement of the RO membrane may be necessary if it has been in use for more than a year and its performance has deteriorated.

(6) Use a dual RO membrane system: If conditions permit, consider using a design with dual RO membranes, which can significantly increase water output.

(7) Increase the pressure drum or adjust the pressure system: For systems with a pressure drum, increase the capacity of the pressure drum or adjust the booster pump/pressure reducing valve to maintain a stable water pressure.

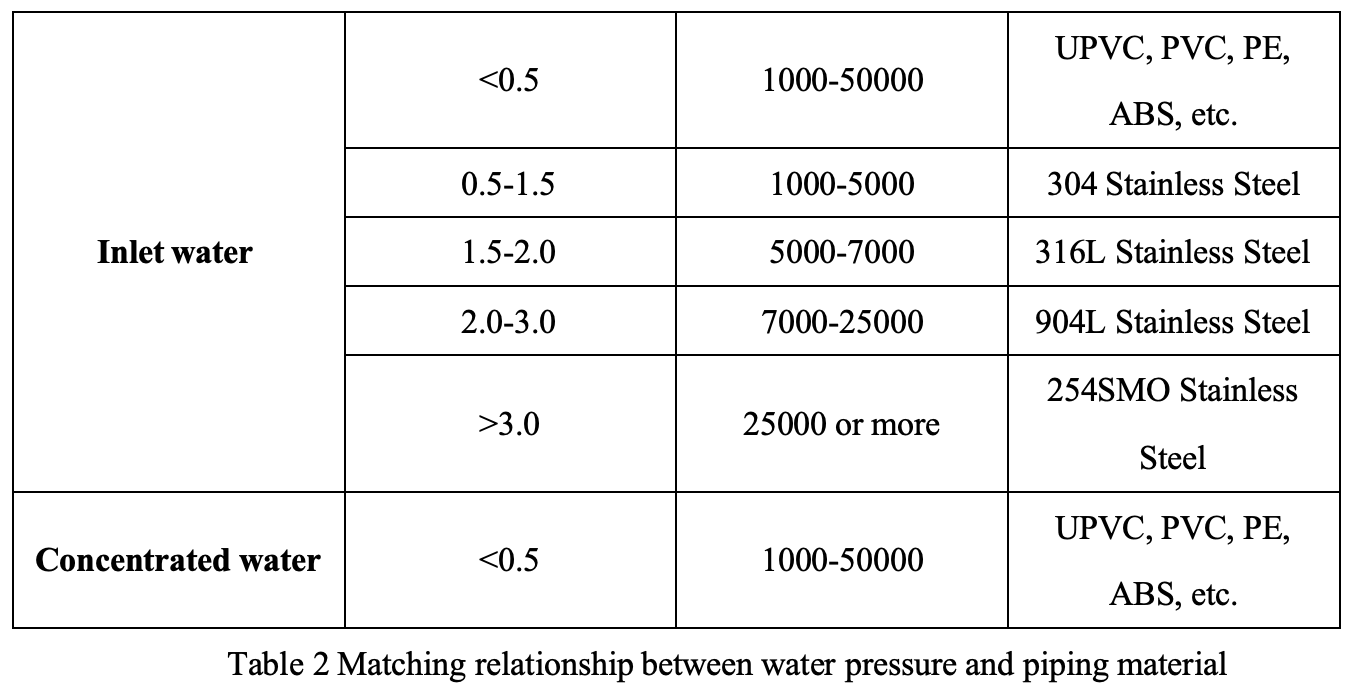

截屏2024-11-27 15.46.45.png

Experience has shown that if cleaning is done every 3 months or more, the pretreatment and reverse osmosis system design is sound, and if cleaning is done every 1 to 3 months, the process can be improved and additional equipment can be added. If they are cleaned less than once a month, more pretreatment equipment will be required for process improvement, taking into account the cost of cleaning, the shortened life of the reverse osmosis membranes, and the deterioration of operating conditions.


4.3 Lateral flow velocity

In order to control the rate of contamination in a surface water reverse osmosis system, the selection of the optimum membrane surface transverse flow rate is as important as the selection of the water flux.

The main technical measures to optimize the transverse flow rate in reverse osmosis systems are as follows:

(1) Increasing the transverse flow rate of feed and concentrate water on the membrane surface and in the feed/concentrate separator network increases the degree of turbulence, thereby reducing particle precipitation and separator network buildup.

(2) Higher lateral flow rates can increase the rate of salt diffusion from the membrane surface to the main solution, reducing the risk of precipitation of insoluble salts.

(3) Under the premise of meeting the water flux requirements, the selection of membrane elements with larger structural parameters (such as area and length) can reduce the number of membrane elements in each pressure vessel and thus increase the lateral flow rate in each vessel.

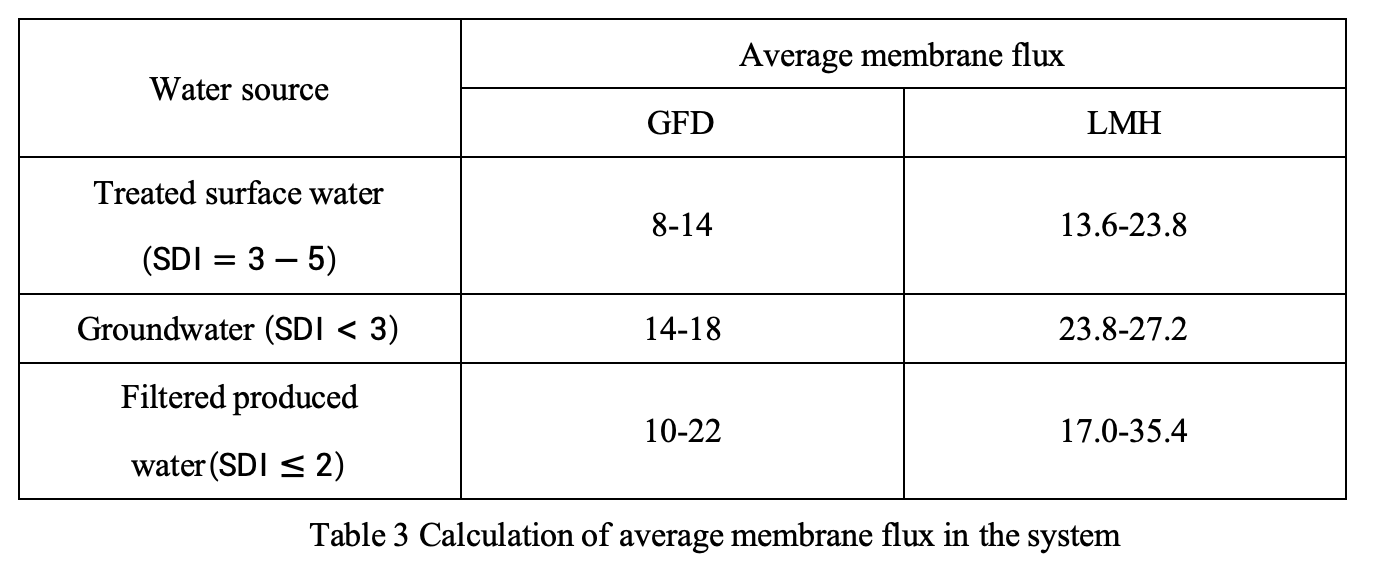

截屏2024-11-27 15.46.24.png

5.Reverse Osmosis Technology in ALPS Water Treatment Systems

ALPS has successfully integrated Reverse Osmosis technology into its water treatment systems, significantly enhancing their ability to handle complex and contaminated water sources. RO plays a critical role in the purification process, especially in situations where water must meet stringent safety standards. By removing dissolved solids, salts, and other contaminants, RO technology ensures that the water treated by ALPS water treatment systems is of the highest purity.

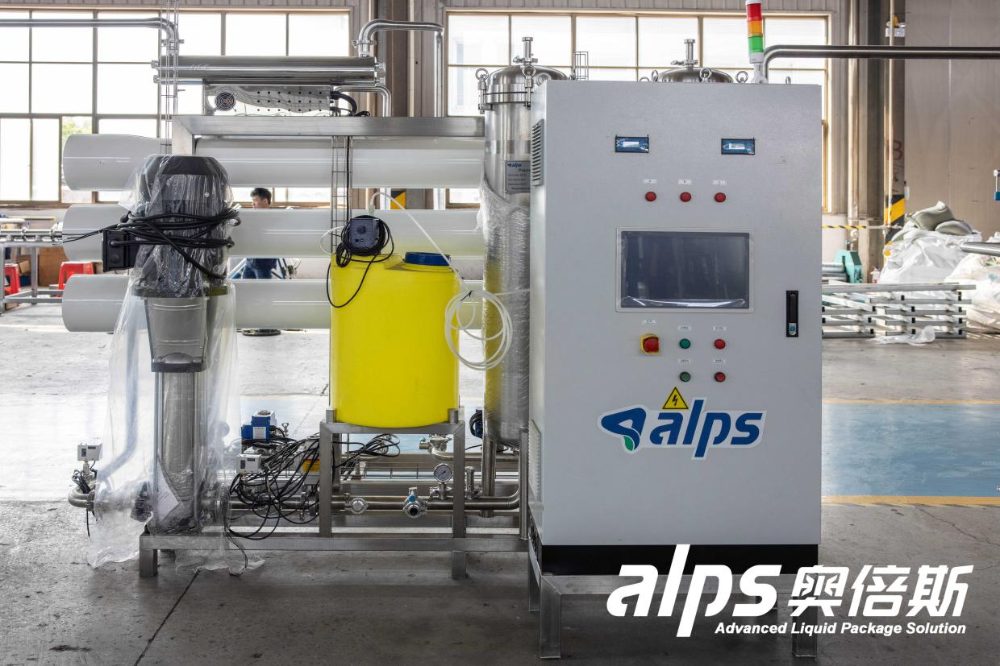

Design options for reverse osmosis systems.jpg

6.Summarize

In this paper, we delve into the design and optimization techniques of reverse osmosis systems, revealing their importance in the field of water treatment. Reverse osmosis technology is widely used in many fields such as drinking water treatment, industrial wastewater reuse and seawater desalination due to its efficient water purification ability.

This paper analyzes the basic components of a reverse osmosis system, including membrane modules, high-pressure pumps, pre-treatment and post-treatment equipment, etc., and emphasizes the key role of each part in system operation. Optimizing the economics and sustainability of reverse osmosis systems is a trend for the future, and efficient use of resources can be achieved by reducing operating costs and assessing environmental impacts. Finally, the diverse applications of reverse osmosis technology are summarized and its potential in addressing global water scarcity is envisioned.

Reverse Osmosis technology is a vital component of ALPS water treatment systems, offering a powerful and sustainable solution to the challenges of modern water purification. By integrating RO into its systems, ALPS has improved the efficiency, safety, and cost-effectiveness of water treatments. As technology continues to advance, RO will remain a cornerstone of ALPS’s commitment to providing innovative and sustainable water treatment solutions.

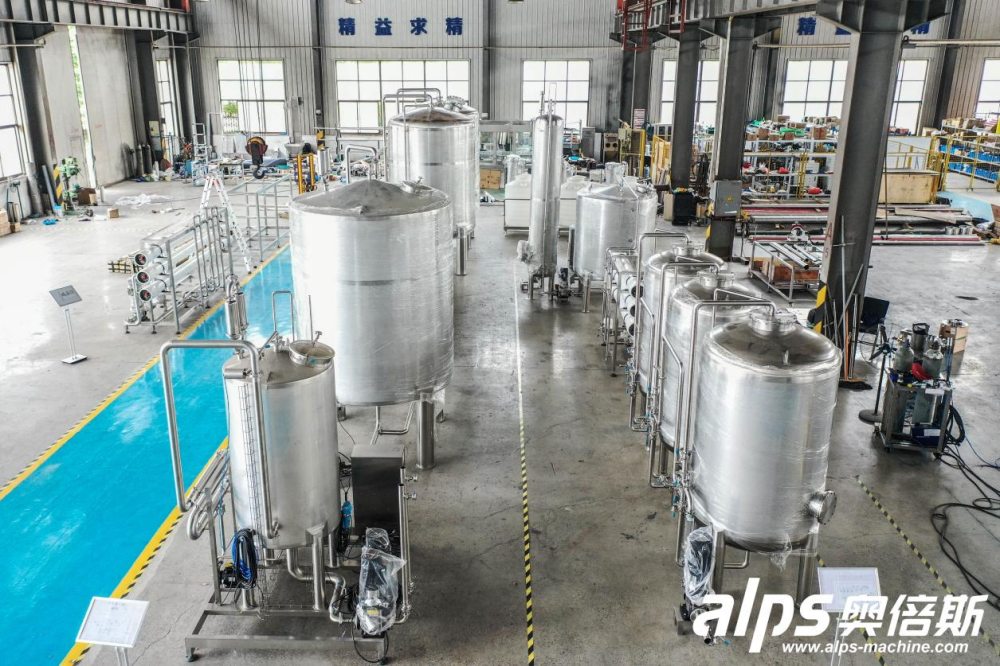

water treatment systems.jpg
